Auto Washing Filling And Capping Machine , Mineral Water Bottle Filling Machine

China Auto Washing Filling And Capping Machine , Mineral Water Bottle Filling Machine supplier
Auto Washing Filling And Capping Machine , Mineral Water Bottle Filling Machine supplier Auto Washing Filling And Capping Machine , Mineral Water Bottle Filling Machine supplier

Large Image :  Auto Washing Filling And Capping Machine , Mineral Water Bottle Filling Machine

Product Details:

Place of Origin: CHINA
Brand Name: JINYATE
Certification: CE
Model Number: BDCGF18-18-6

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: pleaes inquire
Packaging Details: standard export package
Delivery Time: 45 working days
Supply Ability: 100 sets a year
Contact Now
Detailed Product Description
Name: Washing Filling And Capping Machine Advantage: Auto
Washing Filling Capping Heads: 18-18-6 Type: Mineral Water Filling Machine
Glass Bottle Volume: 0.3L-2L Filling Precision: ±2-3%

Auto Washing Filling And Capping Machine , Mineral Water Bottle Filling Machine



Washing Filling And Capping Machine Application



This machine is mainly used for wine and sauce filling operation,this machine is combined of Washing filling capping ;the whole procedure is full auto ,and suitable for glass bottle for filling vodka,wine,sauce and etc.the applicable bottle type can be adjusted freely and convenientiy.that is why the machine has more capacity and benefit compared other machine with same specification.this machine is adopted advanced programmable PLC ,and make the machine running auto ,and bottle input conveyor adopts transducer with speed adjustable ,and bottle output conveyor adopts speed adjustable motor .



Washing Filling And Capping Machine Profile



  • This product is composed of separate bottle punching machine, filling machine and capping machine. It can be produced by a single machine and connected to the whole production line.
  • Adopt isobaric filling, high filling accuracy, no boiling;
  • In the case of replacing bottle fittings, the flushing, filling and sealing can be applied to bottles of various sizes.
  • All stainless steel 304 materials are used.
  • For glass bottles, screw feeding is used to convey the bottles, and the bottles are not extruded or exploded.
  • The screwdriver cap adopts the screwdriver cap technology imported from France, and the cap cutter is installed at low position and sent horizontally.

Washing Filling And Capping Machine Technical parameter



Model BDCGF18-18-6 Washing Filling And Capping Machine
Function Washing Filling And Capping
Washing filling capping heads 18-18-6
Capacity 500-3500BPH (500ml), speed is adjustable
Filling material Beer, carbonated soft drink, soda water, energy drink, water and other gas beverage
Glass bottle volume 0.3L-2L
Glass bottle diameter Φ50-108mm
Glass bottle height 170-320mm
Suitable lid Crown lid, aluminum rotary lid, ring lid, twist-off lid
Filling precision ±2-3%
Filling method Isobaric filling

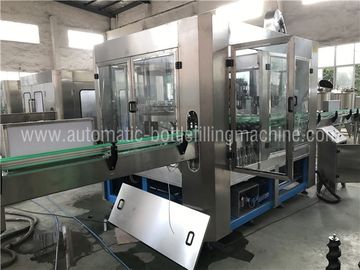

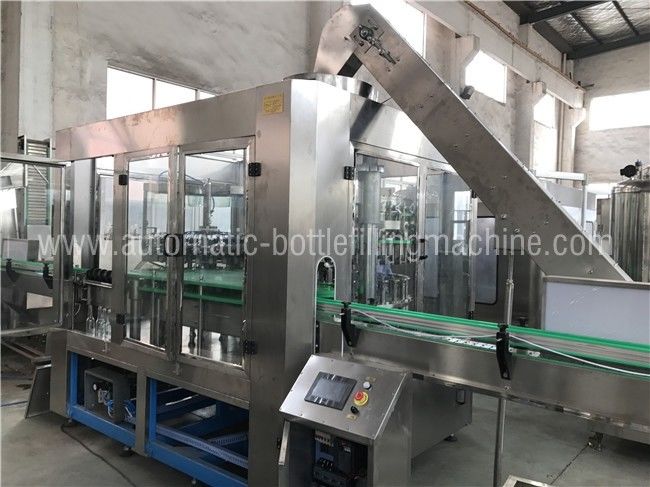

Washing Filling And Capping Machine picture



Auto Washing Filling And Capping Machine , Mineral Water Bottle Filling Machine



Customized service



1.We can design the machines according your requirements(materil,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.

2. We can offer free technical support and consultation such as design your factory,draw the factory layout and so on.

3.We are certificated by many famous certificated authories.



About US



Zhangjiagang Jinyate machinery Co., Ltd is located Leyu Town, Zhangjiagang City , Jiangsu Province,We devote ourselves to the development, research and production of beverage filling and packing industry.

Our main products include: Mineral water,purified water,drinking water filling production line;Juice,tea hot filling production line;Carbonated beverage filling production line. 3 gallons& 5gallons filling production line;beverage can filling production line.We also provide various auxiliary equipment of production line. We can help you to design the product line, workshop and provide turn-key project.



Our products are sold well in every province and city of the whole country and also exported to about thirty countries and areas with strong technical force, advanced equipment, scientific management system and perfect after-sales service.



We have rich experience in glass bottle juice package machine, can provide complete line plants, capacity starts from 1000 bottles per hour to 30000BPH, also can customize the equipment according to your request, please contact... ...
