0.3L-2L Glass Bottle Soda Filling Machine , Carbonated Drink Filling Machine

Certification
China Zhangjiagang Jinyate Machinery Co., Ltd certification
China Zhangjiagang Jinyate Machinery Co., Ltd certification
Customer Reviews
Your machine quality is very good and technical team very professional, hope our products sell well!

—— Shiferaw Habte

I have worked with them for five years, their juice and carbonated machine help me spread my busniess acorss Africa, this year we place an 24000BPH carbonated line, looking forward to the machine installation in our factory early.

—— Umesh

I'm Online Chat Now

0.3L-2L Glass Bottle Soda Filling Machine , Carbonated Drink Filling Machine

0.3L-2L Glass Bottle Soda Filling Machine , Carbonated Drink Filling Machine
0.3L-2L Glass Bottle Soda Filling Machine , Carbonated Drink Filling Machine 0.3L-2L Glass Bottle Soda Filling Machine , Carbonated Drink Filling Machine

Large Image :  0.3L-2L Glass Bottle Soda Filling Machine , Carbonated Drink Filling Machine

Product Details:
Place of Origin: CHINA
Brand Name: JINYATE
Certification: CE
Model Number: BDCGF18-18-6
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: pleaes inquire
Packaging Details: standard export package
Delivery Time: 45 working days
Supply Ability: 100 sets a year
Detailed Product Description
Name: Glass Bottle Soda Filling Machine Function: Washing Filling And Capping
Washing Filling Capping Heads: 18-18-6 Other Name: Carbonated Drink Filling Machine
Glass Bottle Volume: 0.3L-2L Glass Bottle Height: 170-320mm
High Light:

glass bottling equipment

,

water glass filling machine

0.3L-2L Glass Bottle Soda Filling Machine , Carbonated Drink Filling Machine​



How to choose Glass Bottle Soda Filling Machine



If you only want a filling machine, there are some direction: 1. water or non gas filling machine. 2. carbonated drinks or gas soda water filling machine. 3. juice filling machine. 4. oil filling machine. 5. can drinks filling machine.

If you wanna the specific equipment to meet the needs of yours, there need many information or idea confirmed, then the plan can be done or supplied. So before the quotation you received, please think about these direction: 1. how many capacity you want to produce? (no matter what kind of beverage, the production speed will determine the model or the price of equipment) 2. you will use what kind of bottles to fill the beverage? pet or glass bottles? different bottles will use different kind of equipment to produce.



Glass Bottle Soda Filling Machine Profile



  • Suitable for glass bottled gas-containing beverage production, such as beer, carbonated beverage, soda water, etc.
  • capacity 500-2000 (500 ml) bottles per hour;
  • Adopt isobaric filling, high filling accuracy, no boiling;
  • In the case of replacing bottle fittings, the flushing, filling and sealing can be applied to bottles of various sizes.
  • For glass bottles, screw feeding is used to convey the bottles, and the bottles are not extruded or exploded.
  • The screwdriver cap adopts the screwdriver cap technology imported from France, and the cap cutter is installed at low position and sent horizontally.

Glass Bottle Soda Filling Machine Technical parameter



Model BDCGF18-18-6 0.3L-2L Glass Bottle Soda Filling Machine , Carbonated Drink Filling Machine
Capacity 500-3500BPH (500ml), speed is adjustable
Filling material Beer, carbonated soft drink, soda water, energy drink, water and other gas beverage
Glass bottle volume 0.3L-2L
Glass bottle diameter Φ50-108mm
Glass bottle height 170-320mm
Suitable lid Crown lid, aluminum rotary lid, ring lid, twist-off lid
Filling precision ±2-3%
Other Name Carbonated Drink Filling Machine

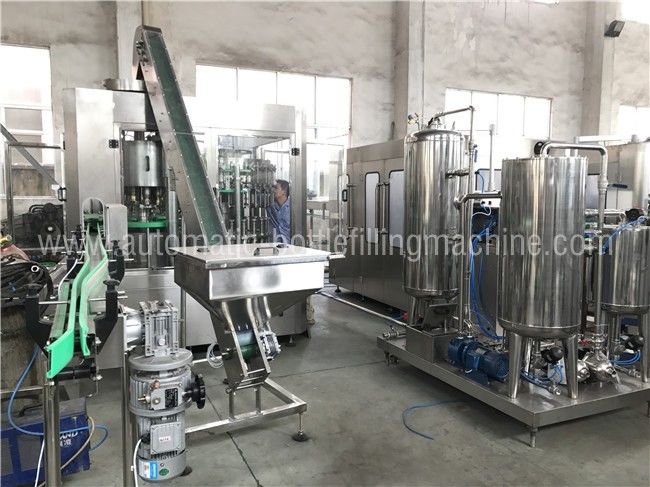

Glass Bottle Soda Filling Machine picture



0.3L-2L Glass Bottle Soda Filling Machine , Carbonated Drink Filling Machine 0



About US



Our company established in 2007, It is a 10 years history in lighting industry as professional supplier which incorporates with industry and trade.We have concentrated on its one and only business scope of packaging machinery for beverage, daily chemicals and condiment since it was founded.



After sales service



• Find our products through http://www.automatic-bottlefillingmachine.com. One year warranty for the whole system.

• We can send our engineers/technicians for installation of entire production line to your factory.

• After one year , we can help you to maintain the machine and the accessories are provided only at the cost price.

• We can provide internship service and help you train the operator and mechanic.

• Free production technology and process configuration.

• We can help you to design the product line , workshop and provide turn-key project.



We have rich experience in glass bottle juice package machine, can provide complete line plants, capacity starts from 1000 bottles per hour to 30000BPH, also can customize the equipment according to your request, please contact... ...
