Commercial Pulp Juice Making Machine , Pineapple Glass Bottling Plant Equipment

Commercial Pulp Juice Making Machine , Pineapple Glass Bottling Plant Equipment
Commercial Pulp Juice Making Machine , Pineapple Glass Bottling Plant Equipment Commercial Pulp Juice Making Machine , Pineapple Glass Bottling Plant Equipment Commercial Pulp Juice Making Machine , Pineapple Glass Bottling Plant Equipment Commercial Pulp Juice Making Machine , Pineapple Glass Bottling Plant Equipment

Large Image :  Commercial Pulp Juice Making Machine , Pineapple Glass Bottling Plant Equipment

Product Details:
Place of Origin: CHINA
Brand Name: JINYATE
Certification: CE
Model Number: BRCGF8-8-3
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: pleaes inquire
Packaging Details: standard export package
Delivery Time: 45 working days
Supply Ability: 100 sets a year
Detailed Product Description
Name: Pulp Juice Filling Machine Function: Rinsing, Filling, Capping
Suitable Bottle: Glass Bottle Bottle Volume: 200-1000ml
Suitable Cap: Twist-off Cap, Screw Cap Capaicty: 3000BPH
Material: SUS304 Automatic Grade: Fully Autmatic
High Light:

glass bottling equipment

,

water glass filling machine

Description:

This machine is used to produce glass bottle various juice, which combines ringsing, juice filling, pulp filling and capping four stations in one unit.

Specially the seperate pulp station guarantees the machine can fill big pulp.





This type machine is mainly suitable for Juice filling process.It combine with the function of washing filling capping in one machine, the whole process is automated, it suitable for glass bottle juice, tea, mineral water, pure water, etc everage filling. Each parts suitable bottle can be easily adjusted, fast and convenient. Adopt new hot filling process, stable and reliable. So compare with the same specifications machine,this machine has greater efficiency. The machine adopts advanced OMROM programmed controller(PLC) to control the machine automatically running. Adopted air conveyor device to input bottles, the bottle output adopts speed adjustable type. Cooperate with the inverter to make the bottle output more stable and reliable. Photoelectric detection each parts running status, so it has the advantage of highly automation degree, easily operation.It is the ideal equipment of beverage manufacturers.



Techinial parameter:

Model BRCGF8-8-1-3
Rated capacity

300-500ML:3000B/H; 1000ML:1500B/H

Speed adjustable
Filling Liquid Juice with big pulp
Filling Container Type

glass  bottle: Max Diameter 108mm,

                     Max Height 310mm

Filling Type Gravity filling
Cap twist-off cap, screw cap, ring-off cap, crown cap
Filling Temperature ambient Temperature
Label Material Adhesive Label; OPP Label
Conveyor Mode

Conveyor Belt

Factory Condition

Temperature:10~40℃

Humidity:no dew(≤95%)

Resource Voltage According Customer ' s Factory Voltage Design.
Efficiency > 9 5 %
Control PLC+HMI
Voltage 380V 50HZ 3Phases or customized

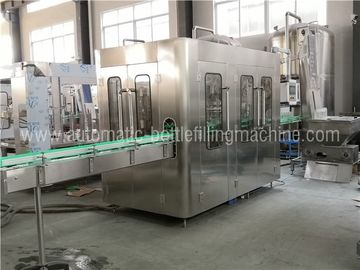

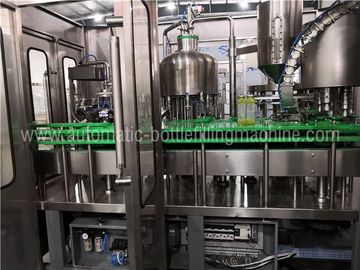

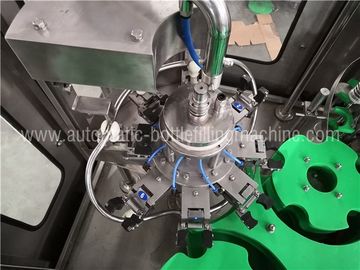

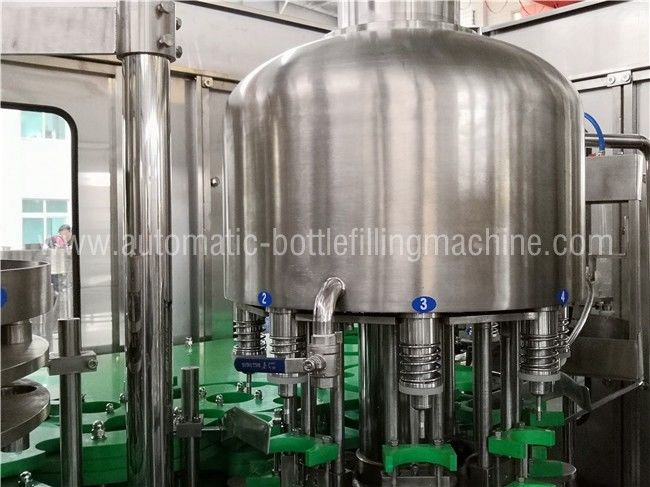

Machine picture

Commercial Pulp Juice Making Machine , Pineapple Glass Bottling Plant Equipment 0



Commercial Pulp Juice Making Machine , Pineapple Glass Bottling Plant Equipment 1

Commercial Pulp Juice Making Machine , Pineapple Glass Bottling Plant Equipment 2



After sales service

• Find our products through http://www.automatic-bottlefillingmachine.com. One year warranty for the whole system.

• We can send our engineers/technicians for installation of entire production line to your factory.

• After one year , we can help you to maintain the machine and the accessories are provided only at the cost price.

• We can provide internship service and help you train the operator and mechanic.

• Free production technology and process configuration.

• We can help you to design the product line , workshop and provide turn-key project.



We have rich experience in glass bottle juice package machine, can provide complete line plants, capacity starts from 1000 bottles per hour to 30000BPH, also can customize the equipment according to your request, please contact... ...
