330ml Fruit Juice Packaging Machine , Full Production Line For Juice Industry

330ml Fruit Juice Packaging Machine , Full Production Line For Juice Industry
330ml Fruit Juice Packaging Machine , Full Production Line For Juice Industry 330ml Fruit Juice Packaging Machine , Full Production Line For Juice Industry 330ml Fruit Juice Packaging Machine , Full Production Line For Juice Industry 330ml Fruit Juice Packaging Machine , Full Production Line For Juice Industry

Large Image :  330ml Fruit Juice Packaging Machine , Full Production Line For Juice Industry

Product Details:
Place of Origin: CHINA
Brand Name: JINYATE
Certification: CE
Model Number: BRCGF8-8-3
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: pleaes inquire
Packaging Details: standard export package
Delivery Time: 45 working days
Supply Ability: 100 sets a year
Detailed Product Description
Name: Pulp Juice Filling Machine Function: Rinsing, Filling, Capping
Suitable Bottle: Glass Bottle Bottle Volume: 200-1000ml
Suitable Cap: Twist-off Cap, Screw Cap Capaicty: 3000BPH
Material: SUS304 Control: PLC+HMI
High Light:

glass bottling equipment

,

water glass filling machine

Description:

This machine is used to produce glass bottle various juice, which combines ringsing, juice filling, pulp filling and capping four stations in one unit.

Specially the seperate pulp station guarantees the machine can fill big pulp.



Techinial parameter:

Model BRCGF8-8-1-3
Rated capacity

300-500ML:3000B/H; 1000ML:1500B/H

Speed adjustable
Filling Liquid Juice with big pulp
Filling Container Type

glass  bottle: Max Diameter 108mm,

                     Max Height 310mm

Filling Type Gravity filling
Cap twist-off cap, screw cap, ring-off cap, crown cap
Filling Temperature ambient Temperature
Label Material Adhesive Label; OPP Label
Conveyor Mode

Conveyor Belt

Factory Condition

Temperature:10~40℃

Humidity:no dew(≤95%)

Resource Voltage According Customer ' s Factory Voltage Design.
Efficiency > 9 5 %
Control PLC+HMI
Voltage 380V 50HZ 3Phases or customized



Glass bottle water filling for glass bottle integrates the function of rinsing, filling and capping together. Based on advanced technology overseas, and designed according to room filling processing demands of non-carbonated water and alcoholic drinks to be one of the advanced room filling production line.

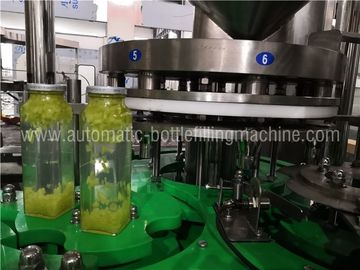

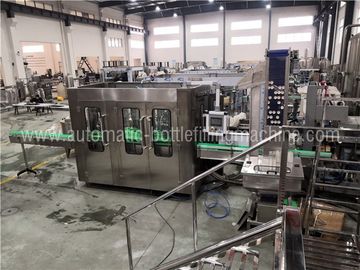

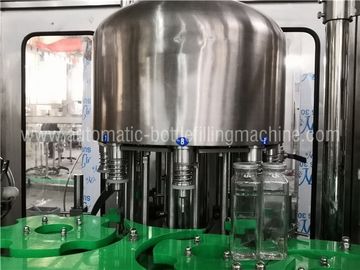

Machine picture

330ml Fruit Juice Packaging Machine , Full Production Line For Juice Industry 0



330ml Fruit Juice Packaging Machine , Full Production Line For Juice Industry 1



330ml Fruit Juice Packaging Machine , Full Production Line For Juice Industry 2



FAQ

Q1: which city are you in? how can I get to your factory? Are you a trading company or factory?
A1: We are in Zhangjiagang city, two hours driving from Shanghai. We are factory. Manufacturing mainly beverage filling and packagingmachines. We offer turnkey solutions with more than 10 years experience.

Q2: Why is your prices higher than others?
A2: We offer high-end machines in our business. Welcome to our factory to have a visit. And you will see the difference.

Q3: What is your delivery time?
A3: Normally 30-60 working days depends one machines, water machines are faster, carbonated drink machines are slower.

Q4: How to install my machines when it arrives? How much the cost?
A4: We will send our engineers to your factory to install the machines and train your staff how to operate the machines If needed. Or you can arrange engineers to study in our factory.
You are responsible for air tickets, accommodation and our engineer wage USD100/day/person.



We have rich experience in glass bottle juice package machine, can provide complete line plants, capacity starts from 1000 bottles per hour to 30000BPH, also can customize the equipment according to your request, please contact... ...
