| Automatic Grade: | Fully-automatic | Capacity: | 300BPH |
|---|---|---|---|
| Bottle Volume: | 3-5gallon | Weight: | 1200kg |
| Bottle Type: | Plastic Barrel | Machine Material: | Stainless Steel 304 |
| Dimension(L*W*H): | 3800*1300*1600mm | Control: | Touch Screen+PLC |
| High Light: | 20 ltr water jar filling machine,fully automatic filling machine |
||
-- Description

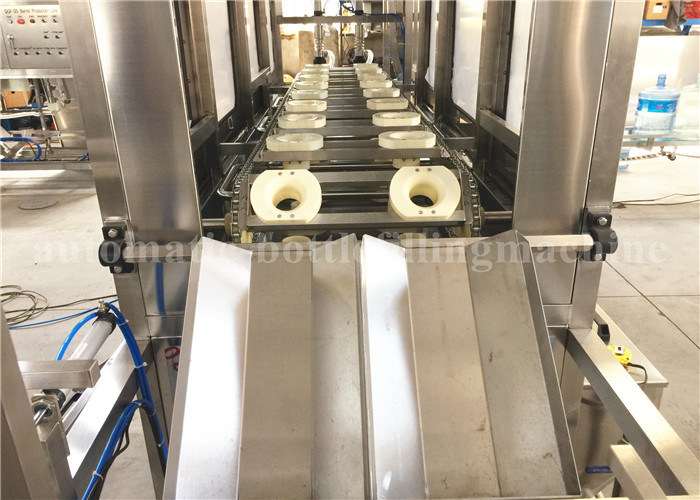

(1) This filling line specially produces 3&5 gallons barreled drinking water.
(2)This series barreled filling production line integrates bottle washer, filler and sealer into one unit.
(3) In order to achieve the purpose of washing and sterilizing, bottle washer adopts multiple liquid injections washing and disinfectant spray, and washing solution can be used circularly. The sealer can seal bottle caps automatically.
(4) This filling line equips with water spraying device to sterilize caps of bottles in order to ensure those caps are aseptic and healthy.
(5) This line also can automatically carry out bottle washing, sterilizing, filling, capping, counting and products discharging.
(6) It has features of complete functional, novel design, and high degree of automation. It is a new kind of barreled water auto-producing line, which integrates mechanism, electricity and pneumatics technologies together.
You can click this below picture to see the video of this machine:
https://youtu.be/fFrnRsd0lNw
Technical parameter
| Model | QGF-150 | QGF-300 | QGF-450 | QGF-600 | QGF-900 |
| Filling heads | 1 | 2 | 3 | 4 | 6 |
| Volume | 3-5gallon | ||||
| Barrel size | 270*490 | ||||
| Capacity | 150 | 300 | 450 | 600 | 900 |
| Gas pressure | 0.4 -0.6 | ||||
| Gas consumption | 0.37 | 0.6 | 0.8 | 1 | 1.2 |
| Motor power | 1.75 | 3.8 | 3.8 | 7.5 | 9 |
| Motor voltage | 380V/50HZ | ||||
| Weight | 700 | 1200 | 1600 | 2000 | 3500 |
| Dimension | 2800*1100*1600 | 3800*1300*1600 | 4200*1600*1600 | 4800*1800*1600 |
4200*2300*1600 2800*1000*1600 |
1.The 5 Gallon Filling Machineis composed of barrel washer, barrel filling machine and barrel sealer into one unit.
2. Especially for filling drinking water of 3 and 5 gallons. It is an idea filling line to produce mineral water, distilled water and purified water.
3. The whole line is made of superior stainless steel, anticorrosive and easy to clean.
4. Only two operators are needed for a line, which is wholly automatic barreled
5. Full-auto or semi-auto barrel de-capper, full-auto leakage inspection, full-auto barrel outside brusher, full-auto barrel loading machine, steam shrinking film machine and coding system can be choose depends on what customer's need.
External brusher
Automatic barrel outer brushing machine specially work with 5 Gallon barreled water producing line. It is used for reducing the settling caused by the mineral water itself and some algae substances in the process of mineral water producing. The machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance. The main electrical elements adopt the products with brands of SIEMENS and OMRON. Pneumatic elements adopt the products with brand of AIRTAC.
