|Control:||PLC+ Touch Screen||Function:||Washing Filling Capping|
600BPH 20 liter bottle filling machine,
7.5KW 20 liter bottle filling machine,
600BPH Bottled Water Filling And Capping Machine

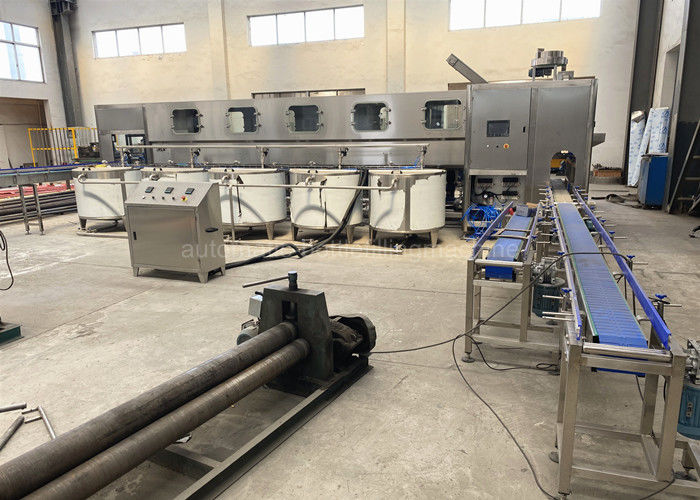

Flowchart Of Complete 5 Gallon Water Filling Line
Water treatment system → Bottle blowing machine → Automatic decapper → External and Inner brusher → Rotary type barrel washing filling capping machine → Cap elevator →Light checker→ Heat shrinker
There are 9 working procedures: the first and second processes are (hot) alkaline water circulation, washing inner, outer, and bottom of the barrel. The third process is (hot) alkaline water drip, the forth and fifth process are the disinfectant , disinfect the inner and outer barrel. The sixth is the disinfectant drip, the seventh and eighth is the sterile water flush, washing the inner barrel. The ninth and tenth is purified water washing, rinsing inner barrel.

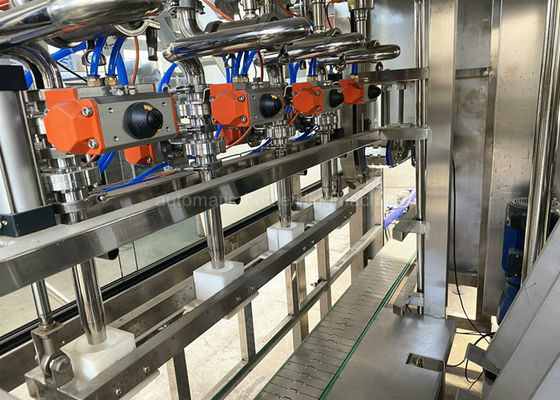

It adopts grivity filling (filling valve type is optional accoridng to customer barrel and requirements), it can finish hig speed filling, and can control the backflow water well.
This machine adopts 1 pcs roller capping,automatic cap loading susye, helps bottle get the cap automatically, then roller capping system will help press the cap step by step during the bottle moving, which can save production time. and whole capping part is
fully covered in the machine, so the process is very clean.
Cap loading system:
It feeds the cap to capping part of machine automatically, and cap loader part will arrange the cap in good position to send them into cap tunnel.
|Gas pressure||0.4 -0.6||0.4 -0.6||0.4 -0.6||0.4 -0.6|
Cap loading machine
