ISO Soda Water Carbonated Drink Filling Machine Capping For PET Bottle

China ISO Soda Water Carbonated Drink Filling Machine Capping For PET Bottle supplier
ISO Soda Water Carbonated Drink Filling Machine Capping For PET Bottle supplier ISO Soda Water Carbonated Drink Filling Machine Capping For PET Bottle supplier ISO Soda Water Carbonated Drink Filling Machine Capping For PET Bottle supplier ISO Soda Water Carbonated Drink Filling Machine Capping For PET Bottle supplier ISO Soda Water Carbonated Drink Filling Machine Capping For PET Bottle supplier

Large Image :  ISO Soda Water Carbonated Drink Filling Machine Capping For PET Bottle

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: DGCF60-60-15

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Standard Wooden Boxes
Delivery Time: 30-45 working days
Supply Ability: 10 Set/Sets per Month
Contact Now
Detailed Product Description
Warranty: Carbonated Drink Filling Line Voltage: 380V 50Hz
Control: PLC+Touch Screen Filling Pressure: Balanced Pressure
Capacity: 24000BPH(500ml ) Power: 12KW
Bottle Type: PET Or Plastic Bottle Bottle Volumn: 200-2000ML





PET Bottle Carbonated Soft Drinks Filling Production Line / Soda Water Carbonated Drink Filling Capping Machine Price






Video link: https://www.youtube.com/watch?v=LtzlEBGCvAg&feature=share
ISO Soda Water Carbonated Drink Filling Machine Capping For PET Bottle


Technique parameter

Model: DCGF60-60-15
Capacity :500ml 24000BPH
Bottle shape: Round or square
PET bottle: (mm) (Bottle Diameter):φ50-.φ110mm (Height):150-340mm
Cap: PE srew cap
Filling precision: ≤±5mm
Filling pressure:(Mpa) 0.15-0.35
Rinsing pressure:(Mpa) 0.2-0.25
Filling volume :(L) 8
Overall size:(mm) 6600*6600*2600
Weight: (kg) 1t



Main parts
1. air conveyor;
2. rinser station;

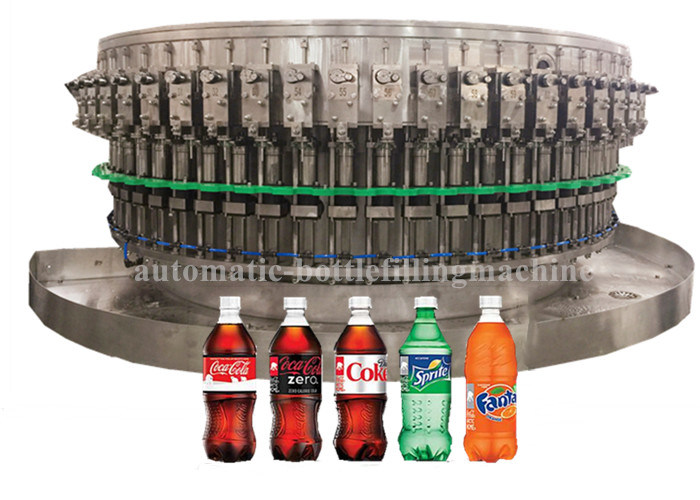

3. filler station;
4. capper station;
5. cap elevator
6. Light checker
7. Full bottle conveyor


Introduction:
This machine is widely used for filling carbonated drink,such as soda water, sparkling water, energy drink, fizzy drink etc. It integrates rising filling capping three functions in one unit, It is suitable for plastic / PET bottle 200-2000ml.
The filling method adopts the isobaric filling so that the filling speed is faster and stable.
Using the advanced PLC(Programmable Logic Controller) technology.



Advantages of csd filler, csd filling line
A. High automation level, compact structure, attractive appearance, convenient and simple operation,

safe and reliable and adjustable continuous production capacity, low labor intensity.
B. The main machine adopts advanced PLC control technology
C. The key electric elements adopt products made by international famous companies, such as

Mitsubishi and Siemens.
These series carbonated drink filling machine can handle max 2 liter pet bottle. Welcome to inspect

Carbonated Drink Filling Machine in our factory.




ISO Soda Water Carbonated Drink Filling Machine Capping For PET Bottle


ISO Soda Water Carbonated Drink Filling Machine Capping For PET Bottle



Washing Parts

<1>  Enhanced food safety: Stainless steel 304/316L for all components in contact with your beverage

<2> Optimum uptime: 30 % reduction in changeover and maintenance downtime

<3> Sustainable solution: Reduced filler enclosure and servomotors reduce resource consumption
<4> Hygiene improvement through volume control and contactless filling
<5> Automatic dummy bottles: Safer, easier cleaning procedures
<6> Automatic bottle changeover improves uptime

Filling Parts
<1> 304/316 Stainless steel high precision filling nozzle
<2> Filling volume adjustable in fine rank, same liquid level after filling
<3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
<4> 304/316 stainless steel filling pump
<5>Efficient spray nozzle rinse thoroughly and save water for flushing


Capping Parts

<1> Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
<2> All 304/316 stainless steel construction
<3> No bottle no capping
<4> Automatic stop when lack of bottle
<5> Capping effect is stable and reliable ,Defective rate ≤0.2%
