Warranty: | One Year For Free | Voltage: | 380V 50Hz |
---|---|---|---|
Control: | PLC+Touch Screen | Filling Pressure: | Balanced Pressure |
Capacity: | 24000BPH(500ml ) | Power: | 12KW |
Driven Type: | Electric | Bottle Type: | PET Or Plastic Bottle |
High Light: | carbonated beverage bottling equipment,carbonated beverage filler |
12KW Automatic carbonated soft drinks making machine for soda water production line CSD bottling plant
Main parts
1. air conveyor;
2. rinser station;
3. filler station;
4. capper station;
5. cap elevator
6. Light checker
7. Full bottle conveyor
Introduction:
This machine is widely used for filling carbonated drink,such as soda water, sparkling water, energy drink, fizzy drink etc. It integrates rising filling capping three functions in one unit, It is suitable for plastic / PET bottle 200-2000ml.
The filling method adopts the isobaric filling so that the filling speed is faster and stable.
Using the advanced PLC(Programmable Logic Controller) technology.
Video link: https://www.youtube.com/watch?v=LtzlEBGCvAg&feature=share
Technique parameter
Model: | DCGF60-60-15 |
Capacity :500ml | 24000BPH |
Bottle shape: | Round or square |
PET bottle: (mm) | (Bottle Diameter):φ50-.φ110mm (Height):150-340mm |
Cap: | PE srew cap |
Filling precision: | ≤±5mm |
Filling pressure:(Mpa) | 0.15-0.35 |
Rinsing pressure:(Mpa) | 0.2-0.25 |
Filling volume :(L) | 8 |
Overall size:(mm) | 6600*6600*2600 |
Weight: (kg) | 1t |
A) Washing part of Soft Drinks Filling Machine:
l All 304 stainless steel rinser heads, water spray style inject design, save water consumption & more clean
lI 304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
lII 304 stainless steel washing pump

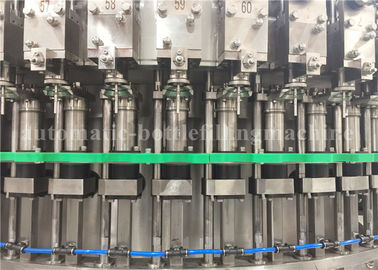

B) Filling Part of Soft Drinks Filling machines :
l High precision filling nozzle, PLC variable signal control, ensure high filling precision & filling smoothly & steadily,
lIFilling volume adjustable in fine rank, same liquid level after filling
lII All 304 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
lV 304 stainless steel filling pump
V no bottle no filling
C) Capping part of Soft Drinks Filling machine:
l Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
lI All 304stainless steel construction
lII No bottle no capping,
lV Automatic stop when lack of bottle
Advantages of csd filler, csd filling line
A. High automation level, compact structure, attractive appearance, convenient and simple operation,
safe and reliable and adjustable continuous production capacity, low labor intensity.
B. The main machine adopts advanced PLC control technology
C. The key electric elements adopt products made by international famous companies, such as
Mitsubishi and Siemens.
These series carbonated drink filling machine can handle max 2 liter pet bottle. Welcome to inspect
Carbonated Drink Filling Machine in our factory.
