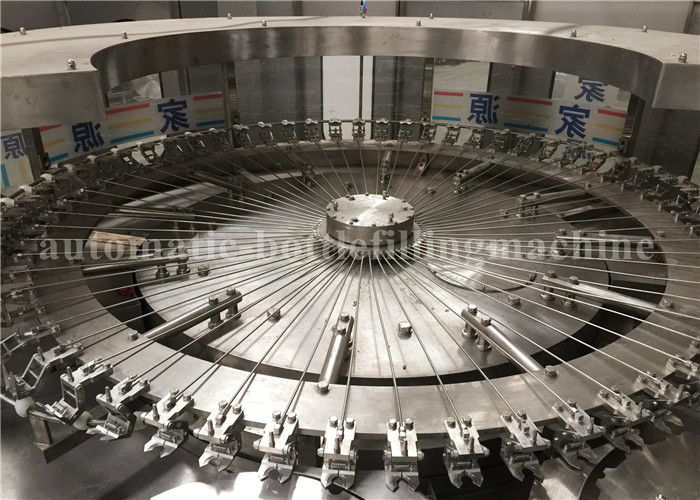

PET Bottle Packaging Carbonated Drink Filling Machine For 250ml Coke Cola

PET Bottle Packaging Carbonated Drink Filling Machine For 250ml Coke Cola
PET Bottle Packaging Carbonated Drink Filling Machine For 250ml Coke Cola

Large Image :  PET Bottle Packaging Carbonated Drink Filling Machine For 250ml Coke Cola

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: DGCF60-60-15
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Standard Wooden Boxes
Delivery Time: 30-45 working days
Supply Ability: 10 Set/Sets per Month
Detailed Product Description
Warranty: One Year For Free Voltage: 380V 50Hz
Control: PLC+Touch Screen Filling Pressure: Balanced Pressure Filling
Filling Material: Gas Contained Beverage Capacity: 24000BPH(500ml )
Factory Location: 2 Hours From Shanghai Power: 12KW
High Light:

soda bottling machine

,

carbonated beverage filler





Automatic Carbonated Soda Water Making And Bottling Machine / Coke Cola Bottle Filler Production Line Low Cost


Introduction:
This machine is widely used for filling carbonated drink,such as soda water, sparkling water, energy drink, fizzy drink etc. It integrates rising filling capping three functions in one unit, It is suitable for plastic / PET bottle 200-2000ml.
The filling method adopts the isobaric filling so that the filling speed is faster and stable.
Using the advanced PLC(Programmable Logic Controller) technology.


Main parts
1. air conveyor;
2. rinser station;
3. filler station;
4. capper station;
5. cap elevator
6. Light checker
7. Full bottle conveyor


Video link: https://www.youtube.com/watch?v=LtzlEBGCvAg&feature=share

Technique parameter

Model: DCGF60-60-15
Capacity :500ml 24000BPH
Bottle shape: Round or square
PET bottle: (mm) (Bottle Diameter):φ50-.φ110mm (Height):150-340mm
Cap: PE srew cap
Filling precision: ≤±5mm
Filling pressure:(Mpa) 0.15-0.35
Rinsing pressure:(Mpa) 0.2-0.25
Filling volume :(L) 8
Overall size:(mm) 6600*6600*2600
Weight: (kg) 1t


Working process:
Bottles are fed from air conveyor into three-in-one rinsing machine via star-wheel. Bottle clamp installed on the rotary wheel of the rinsing machine will grip bottle mouth and make a 180º turn along a guide track to face the bottle mouth downward.
In a designated section of the rinsing machine rinsing, water will jet out from special nozzles to flush bottle inside wall. After rinsing and dripping, bottles gripped by bottle clamp will make another 180º turn along a guide track to resume bottle mouth facing up. Cleaned bottles are moved out of the rinsing machine by bottle carrier mechanism to raise them to engage with filling valves.
A filling is completed by gravity. The material filled into the bottle through a filling valve. The bottle goes down and leaves the valve to capping machine via neck handling star-wheel.
Anti-rotation blades on capping heads will seize the neck of a bottle to prevent it from rotation and hold it in up-right. The twist-on capping head will make revolving and rotating movement along with the machine to finish the complete capping process of cap picking, placing, twisting and disengaging under the control of a cam.



Features:
1. This carbonated filling mono-bloc is made of super stainless steel. It has compact structure, good appearance, scientific and reasonable design. It is available for the bottles from 200ml to 2000ml.
2. It adopts the technology of direct contact with air conveyor and bottle inlet poking wheel, taking stead of the feeding screw and conveyors, which making it much more convenient to change the bottle shape.
3. This machine adopts advanced bottle neck clamping system, which get rid of the requirement of bottle height. So there is only a few parts need to change while different bottles are used on the same machine, such as the guide plate and the poking wheel.
4. Perfect stainless steel bottle gripper of rinsing avoids the secondary contamination by no touch with the bottle screw parts.
5. It is equipped with high speed filling valve of high precision filling.
6. The capping head adopts constant magnetic torque device to ensure the high capping quality without damage. High efficient cap settling system, cap feeding system and no bottle no cap system make the whole capping system perfect.
7. It adopts spiral descent fashion for the support plate for bottle bottom at the outlet thumb wheel. It removes the need of adjusting the inlet bottle height for change bottle models.
8. This carbonated beverage filling machine adopts advanced PLC control and touch screen. The key electric elements are from international famous brand.
