| Warranty: | One Year For Free | Voltage: | 380V 50Hz |
|---|---|---|---|
| Control: | PLC+Touch Screen | Filling Pressure: | Balanced Pressure Filling |
| Filling Material: | Gas Contained Beverage | Capacity: | 24000BPH(500ml ) |
| Factory Location: | 2 Hours From Shanghai | Power: | 12KW |
| Highlight: | carbonated beverage bottling equipment,carbonated beverage filler |
||
Automatic Carbonated Soda Water Making And Bottling Machine / Coke Cola Bottle Filler Production Line Low Cost
Introduction:
This machine is widely used for filling carbonated drink,such as soda water, sparkling water, energy drink, fizzy drink etc. It integrates rising filling capping three functions in one unit, It is suitable for plastic / PET bottle 200-2000ml.
The filling method adopts the isobaric filling so that the filling speed is faster and stable.
Using the advanced PLC(Programmable Logic Controller) technology.
Main parts
1. air conveyor;
2. rinser station;
3. filler station;
4. capper station;
5. cap elevator
6. Light checker
7. Full bottle conveyor
Video link: https://www.youtube.com/watch?v=LtzlEBGCvAg&feature=share
Technique parameter
| Model: | DCGF60-60-15 |
| Capacity :500ml | 24000BPH |
| Bottle shape: | Round or square |
| PET bottle: (mm) | (Bottle Diameter):φ50-.φ110mm (Height):150-340mm |
| Cap: | PE srew cap |
| Filling precision: | ≤±5mm |
| Filling pressure:(Mpa) | 0.15-0.35 |
| Rinsing pressure:(Mpa) | 0.2-0.25 |
| Filling volume :(L) | 8 |
| Overall size:(mm) | 6600*6600*2600 |
| Weight: (kg) | 1t |

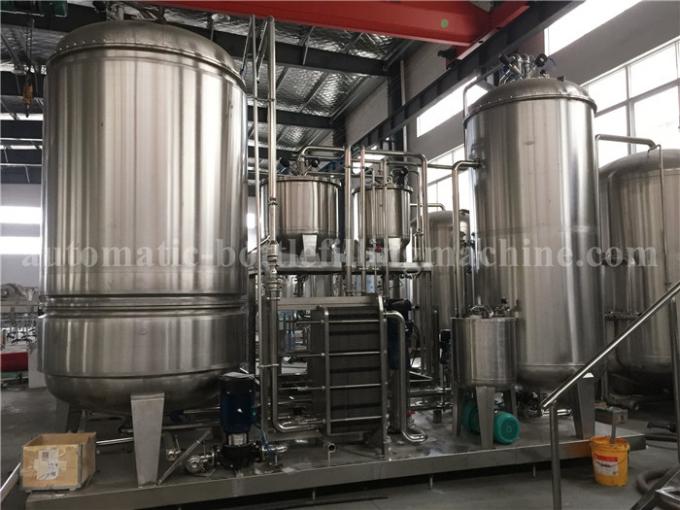

Carbonated drink mixer

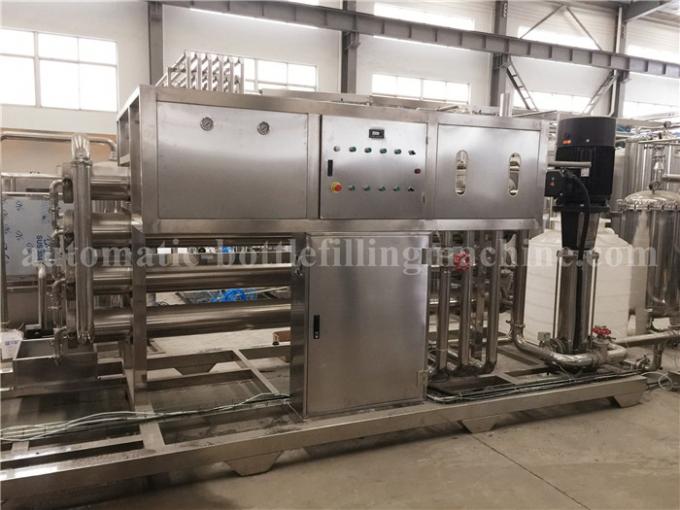

RO
Features:
1. Carbonated Drink Washing Filling Capping Machine Price is economic choice for medium capacity needed but less invested soft drink plant.
2. There are three machines separately existence of this carbonated drinks production line.
3. First is bottle washer, when the bottles coming along by the automatic conveyor, the bottles will be washed inside one by one with the pure water.

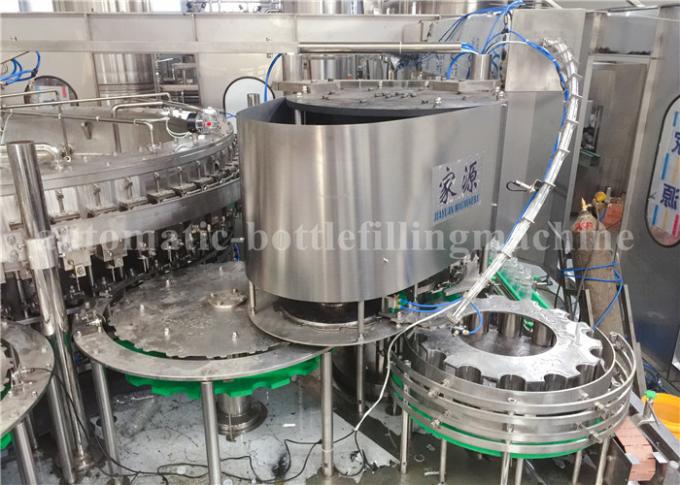

4. Second is the carbonated drinks filling machine, as the washed bottled conveyed to this machine, the filling part start filling, bottles stand around under the filling valve. Then the drinks filling into the bottles .
5. Third is the bottle capper machine, after finish filling from the soda water filling machine, the bottles conveyed by the conveyor to the capper machine. The capper will be capped on the bottle neck, then the bottled drinks finished.
This filler is developed on the basis of digesting and absorbing advanced technology introducing from abroad and is with international advanced level. It is mainly used for filling gas-containing drink, such as aerated water, cola sparking wine, fruit tea soda water and so on. It is advanced in construction, steadily in performance, safe in operation, easy in maintenance high in production efficiency, and the speed can be regulated infinitively. This equipment is the ideal choice for drink factories of soda water drinks.
Kindly remind
Please kindly send us your requirements:
1, bottle vlolume
2, bottle materail (machines for glass bottle and plastic bottle are different)
3, how many bottlesper hour you want to produce ?
4, do you need this water filling machines only or whole water production line
