| Product Name: | Water Filling Machine | Function: | Rinsing Filling Capping |
|---|---|---|---|
| Filling Material: | Drinking Water, Mineral Water, Still Beverage | Suitable Bottle: | 5 Gallon, 20liter, 18.9liter |
| Speed: | 300BPH | Model: | QGF-300 |
| High Light: | 20 ltr water jar filling machine,fully automatic filling machine |
||

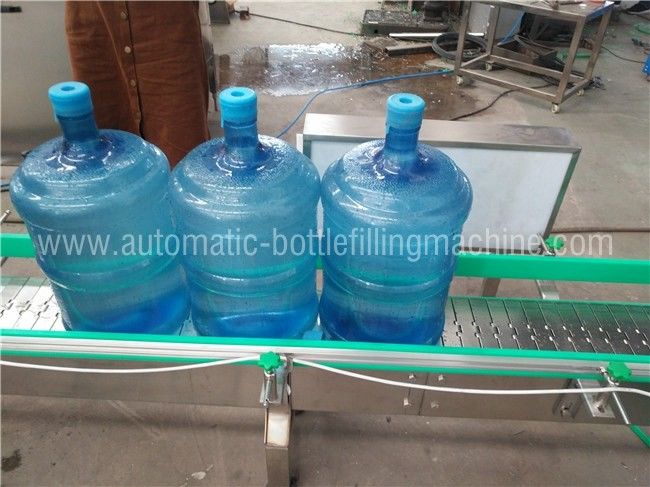

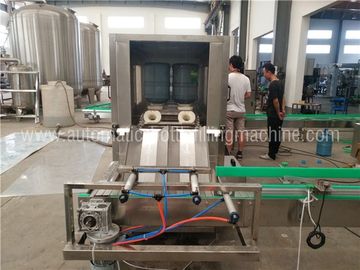

20 Liter 5 Gallon Water Filling Station Full Automatic For 300bph Speed
This machine is used to produce 5 gallon water, integrates rinser filler and capper in one unit, capacity is 300BPH.
Advantage
| 1 | To fill drinking water,pure water,mineral water into 5 gallon barrel (18.9 liters). |
| 2 | Normal filling temperature. |
| 3 | Parts contact with the beverage are made of high quality stainless steel SUS304. |
| 4 | It adopts human-machine interface touch-screen and PLC program control. |
| 5 | Capacity 150BPH,300BPH,450BPH,600BPH,750BPH,900BPH,12000BPH is optional. |
| 6 | On-line cap sterilizing unit is optional. |
| 7 | High grade type and normal type is optional. |
| 8 | A complete waterproduction line include: water treatment, cap puller,brushing machine,washing filling capping machine,auto sleeve labeling, shrink tunnel ,auto packing, palletizer is provided. |
| 9 | Cooperation Brand: |
Technical Parameter
Model | QGF 100 | QGF 300 | QGF 450 | QGF 600 | QGF 900 | QGF 1200 |
Bottle Dates | Max Height:500mm Max Dia:280mm 55mm neck size | |||||
Rinser No | 1 | 2 | 3 | 4 | 6 | 8 |
Capacity | 100 b/h | 300b/h | 450b/h | 600b/h | 900b/h | 1200b/h |
Power (kw) | 3.5 | 4.2 | 5.4 | 7.8 | 8.3 | 9.6 |
Our Services
1.Installation and debug service
After machine arraive customer's factory, professional engineer(1-2 people) will go to customer's factory to install the machine,debug and provide training service until you can operate the machine well.
2.Customized service
Design the machine according to your requirement, according to your bottle,cap...and provide professional suggestions.
Machine layout design after order.
3.After-sales service
1.Installation & debug service, training service.
2.Quick response within 24 hours.
3.12 months guarantee , 2 years enough spare parts,and life-long technical support.
4.All business information will be confidential to any third party.
If you want to know more about machinery and equipment, welcome to contact!
