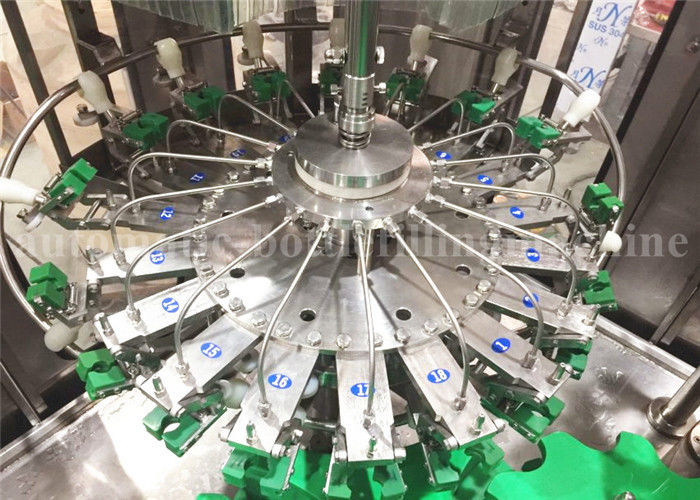

Carbonated Soda Water / Carbonated Soft Drink Filling Machine With Crown Cap

Carbonated Soda Water / Carbonated Soft Drink Filling Machine With Crown Cap
Carbonated Soda Water / Carbonated Soft Drink Filling Machine With Crown Cap

Large Image :  Carbonated Soda Water / Carbonated Soft Drink Filling Machine With Crown Cap

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: DGCF18-18-6
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Plastic film wrapping,standard wooden boxes packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Detailed Product Description
Warranty: One Year For Free Bottle Type: Glass Bottle
Cap Type: Crown Cap Filling Pressure: Balanced Pressure
Capacity: 4000bottles Per Hour Power: 5.03KW
Dimension(L*W*H): 2450*1800*2200mm Weight: 3000kg
High Light:

glass bottling equipment

,

glass bottle filling and capping machine



Carbonated Soft Drink Filling Machine Carbonated Soda Water Glass Bottle Filling Machine With Crown Cap



Video show:

https://www.youtube.com/watch?v=GPTohJGTaE4&feature=share



The glass bottle carboanted beverage filling machine adopts international advanced technology, scientific and reasonable design, beautiful appearance, convenient operation and maintenance, high degree of automation.This machine is the ideal equipment for beverage filling plant.



We provide seris carbonated drink filling machine, csd filling machine, csd filler for the carbonated

soft drink ( CSD ) plant for bottle filling
Bottle filling machine, Carbonated Drink Filling Machine, Csd Filling Line, Csd Filling Equipment,

Soft Drink Filling Machine, Carbonated beverage Filling Machine.
1. Material: The material which contact directly with the liquid is the SUS304 (Food grade),

made in China. The 3-in-1 is mainly used to fill pure water, Mineral water, carbonated drinks,

wine and juice, tea etc.
2. This machine is mainly for filling carbonated beverage, like Feda, sprite, coca cola.and energy drink.



Technique parameter:

Model: DCGF18-18-6 DCGF24-24-8 DCGF32-32-12 DCGF40-40-12
Capacity :500ml 3000 8000 12000 16000
Bottle shape: roud or square
PET bottle: (mm) (Bottle Diameter):φ50-.φ110mm (Height):150-340mm
Cap: PE srew cap
Filling precision: ≤±5mm
Filling pressure:(Mpa) 0.15-0.35 0.15-0.35 0.15-0.35 0.15-0.35
Rinsing pressure:(Mpa) 0.2-0.25 0.2-0.25 0.2-0.25 0.2-0.25
Filling volume :(L) 3.5 4 6 8
Overall size:(mm) 2450*1800*2200 2780*2200*2350 3600*2650*2350 3800*2950*2400
Weight: (kg) 3000 4000 5000 6000



Features:
1. Adopts the negative pressure filling which we specifically design for CSD filling, it ensures

minimal loss of CO2 from the product
2. The configuration of filler is advanced, pithy and rational and the driving and up-down transmission

is located between the stainless steel working plat and the bracket and their waterproof is good,

sanitary and credible and adjusting and maintaining are very easy.
3. We design the filling valves on basis of foreign advanced technique for adapting high-speed hot

filling. It can ensure the valves open and close flexibly because of using guide sheath. Adopting

easy-fixed configuration, the valve is easy to cleaning promptly and has automatic cleaning function.
4. The filling operation is faster and more stable because the new type micro pressure filling system

is adopted.
Advantages of csd filler, csd filling line
A. High automation level, compact structure, attractive appearance, convenient and simple operation,

safe and reliable and adjustable continuous production capacity, low labor intensity.
B. The main machine adopts advanced PLC control technology
C. The key electric elements adopt products made by international famous companies, such as

Mitsubishi and Siemens.
These series carbonated drink filling machine can handle max 2 liter pet bottle. Welcome to inspect

Carbonated Drink Filling Machine in our factory.
