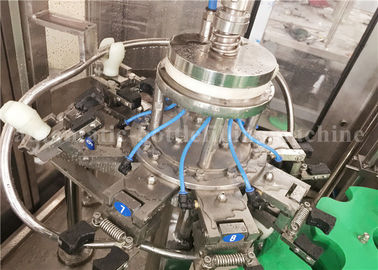

330ML Juice Production Machine Glass Bottle Filling And Capping Machine For Small Juice Plant

330ML Juice Production Machine Glass Bottle Filling And Capping Machine For Small Juice Plant
330ML Juice Production Machine Glass Bottle Filling And Capping Machine For Small Juice Plant

Large Image :  330ML Juice Production Machine Glass Bottle Filling And Capping Machine For Small Juice Plant

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: CGF8-8-3
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Plastic film wrapping,standard wooden boxes packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Detailed Product Description
Automatic Grade: Fully-automatic Overall Dimension: 2100*1500*2200mm
Warranty: One Year For Free Capacity: 2000BPH(500ml)
Control System: PLC+Touch Screen Color: Silver Gray
Power: 4.23KW Machine Material: Stainless Steel 304
High Light:

glass bottle filling and capping machine

,

water glass filling machine



Automatic 330ML Glass Bottle Juice Filling Capping Production Machine For Small Juice Plant



Features:

1. The Juice Bottling Equipment is using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change of the bottle-shaped become easier.

2. The machine 's bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough.

3. The machine is specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

4. The machine is high-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.

5. The machine is spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.

6. The machine host adopt advanced PLC automatic control technology ,the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.

7. The machine equipped with a constant temperature system, temperature controlled and circumfluent automatically.



You can click the below picture to see the video



https://www.youtube.com/watch?v=6hucff2X4Nc&feature=share





Technique parameter

Model CGF8-8-3 CGF16-12-6 CGF18-18-6 CGF24-24-8
Productivity 2000BPH 4000BPH 6000BPH 10000BPH
Rinsing Head 8 16 18 24
Filling Head 8 12 18 24
Capping Head 3 6 6 8
Bottle Volume 350ml~2000ml±10ml
Bottle Diameter φ50-92mm
Bottle Height 150-310 mm
Filling Tolerance ±2%
Cap Size 28mm and 30mm PE Standard Caps
Air Pressure 0.6MPa
Air Consumption 500 L/min
Filling Water Consumption 1.5 m3/h 1.5 m3/h 3 m3/h 6 m3/h
Rinsing Water Consumption 0.5 m3/h 0.5 m3/h 1 m3/h 2 m3/h
Motor Power 4.88kw 5.88kW 6.68kW 7.68kW
Voltage 380V
Dimension

(L*W*H)

2100*1500*2200mm

(L*W*H)

2100*1500*2200mm

(L×W×H) 2450*1800*2200mm (L×W×H) 2750*2180*2200mm
Weight 2000kg 2500kg 3000kg 5300kg
Filling Principle Gravity Filling



CGF series rinsing filling capping 3in1 machine

Juice Rinsing Machine:

-Rotative rinsing turret one treatment, fixed nozzles, with grippers.
-The grippers take the bottles from the inlet star-wheel while they are still driven by the star-wheel, thus guaranteeing a safe grip.
-After the gripping, the bottle is turned upside down and cantred above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.



Juice Filling machine:

-The star-wheels drive the bottles always "by the neck" through the rinsing, filling and capping steps. For the various types of bottle, it is easy to adjust the structure for the operator by our specialized design.
-Product bowl is to reduce the loss of heat.
-If the temperature is low than the setting value, the filling valves will stop and return the last beverage in filling valve to recycle tank and return to UHT again to sterilize with pump.



Juice Capping machine:

-Rotative capping turret, suitable to the application of screw plastic caps on PET bottles
-The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads.
-The heads are raised and lowered by the action of a follower that is riding on a shaped cam.
