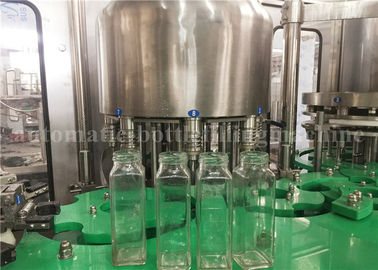

ISO Small Glass Bottle Filling Machine For Fruit Pulp Juice / Flavored Water / Coconut Milk

ISO Small Glass Bottle Filling Machine For Fruit Pulp Juice / Flavored Water / Coconut Milk
ISO Small Glass Bottle Filling Machine For Fruit Pulp Juice / Flavored Water / Coconut Milk

Large Image :  ISO Small Glass Bottle Filling Machine For Fruit Pulp Juice / Flavored Water / Coconut Milk

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: CGF8-8-3
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Plastic film wrapping,standard wooden boxes packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Detailed Product Description
Filling Type: Normal Pressure Driven Type: Electric Type
Automatic Grade: Fully-automatic Overall Dimension: 2100*1500*2200mm
Warranty: One Year For Free Capacity: 2000BPH(500ml)
Control System: PLC+Touch Screen Color: Silver Gray
High Light:

glass bottle filling and capping machine

,

water glass filling machine



Small Glass Bottle Filling Machine For Fruit Pulp Juice / Flavored Water / Coconut Milk 2000BPH







Specifications:

1. Glass bottle filling machine

2. Washing , juice filling , pulp filling , aluminum screw capping 4-in-1 unit

3. Normal pressure



You can click the below picture to see the video.

ISO Small Glass Bottle Filling Machine For Fruit Pulp Juice / Flavored Water / Coconut Milk 0

https://www.youtube.com/watch?v=6hucff2X4Nc&feature=share



Features:

The juice filling machine is used to fill PET heat-resistant bottle for fruit tea, juice and other high-temperature juice.

The core parts of machine employs PLC+, frequency convertor+ and human-machine interface control technology

The machine can be connected with UHT, CIP control center and bottle-invert sterilizer

The machine structure is reasonable and firm, the running state is stable

The suspension bottle neck catcher allows the machine change the bottle type easily

Safe protective devices ensure safety of operator and machine

Magnetic torsion type screw capper ensures the tightness of the cap and avoids bottle damage

The module of screw capper ensures the tightness of the cap and avoids bottle damage

Slight negative-pressure gravity circumfluence filling system increases juice filling accuracy and reduces contamination

Unique control mechanism keeps circumfluence volume below 5%

Airtight valve made of non-plastic material prevents worn-out particles from dropping into bottles adversely affecting product quality

High efficient clean air filter circulation system ensures high sanitary requirements

Low overall machines noise that is comparable to any internationally known equipments in its class

Self-lubricationg system imported from America provides continuous smooth operation



Technique parameter

Model CGF8-8-3 CGF16-12-6 CGF18-18-6 CGF24-24-8
Productivity 2000BPH 4000BPH 6000BPH 10000BPH
Rinsing Head 8 16 18 24
Filling Head 8 12 18 24
Capping Head 3 6 6 8
Bottle Volume 350ml~2000ml±10ml
Bottle Diameter φ50-92mm
Bottle Height 150-310 mm
Filling Tolerance ±2%
Cap Size 28mm and 30mm PE Standard Caps
Air Pressure 0.6MPa
Air Consumption 500 L/min
Filling Water Consumption 1.5 m3/h 1.5 m3/h 3 m3/h 6 m3/h
Rinsing Water Consumption 0.5 m3/h 0.5 m3/h 1 m3/h 2 m3/h
Motor Power 4.88kw 5.88kW 6.68kW 7.68kW
Voltage 380V
Dimension

(L*W*H)

2100*1500*2200mm

(L*W*H)

2100*1500*2200mm

(L×W×H) 2450*1800*2200mm (L×W×H) 2750*2180*2200mm
Weight 2000kg 2500kg 3000kg 5300kg
Filling Principle Gravity Filling





The tank is used for storing fruit pulp

ISO Small Glass Bottle Filling Machine For Fruit Pulp Juice / Flavored Water / Coconut Milk 1
