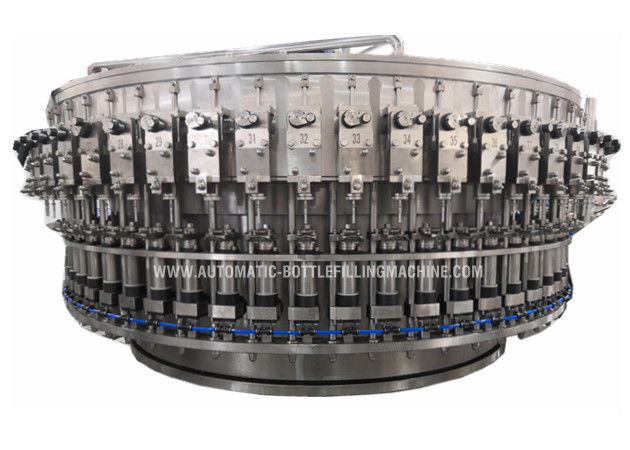

330 Ml Automatic Bottling Equipment Stainless Steel Energy Soft Drink Making Machine

Large Image : 330 Ml Automatic Bottling Equipment Stainless Steel Energy Soft Drink Making Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	JINYATE
Certification:	CE SGS
Model Number:	DCGF60-60-15

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	pls inquire
Packaging Details:	standard wooden case
Delivery Time:	60 working days
Payment Terms:	L/C, T/T
Supply Ability:	100 sets per year

Contact Now

Detailed Product Description

Name:	Energy Drink Bottling Machine	Function:	Filling Capping Packaging
Filling Matereial:	Soda Water, Energy Drink, Soft Drink	Suitable Bottle:	PET 250-2000ML
Capacity:	24000BPH	Automatic Grade:	Fully Automatic
High Light:	soda bottling machine , carbonated beverage bottling equipment

product description

This machine is used to fill cola, sprite and other carbonated beverage.
All the machine part which contact with liquid is high quality stainless steel 304. The relative fittings are from international famous brand.
This machine is comprised of rinsing, filling and capping system.
This machine owns the reasonable, stable and safe design. Under the condition that the bottle neck size is the same, only the output star wheel needs to be changed if bottles are different. It improves the efficiency a lot.

specification

Model (DCGF)	16/12/6	18/18/6	24/24/8	32/32/10	40/40/10	50/50/12	60/60/15
Rinsing heads	16	18	24	32	40	50	60
Filling heads	12	18	24	32	40	50	60
Capping heads	6	6	8	10	10	12	15
Capacity (BPH)	2000	5000	7000	9000	14000	18000	24000
Power(kw)	2.2	3.5	4.5	6	7.5	9.5	11.2
Dimension (mm)	23001600 2500	26001920 2550	31002200 2800	38503000 2850	48503800 2750	75703550 2750	65005500 2750
Weight(kg)	2800	3650	4800	6800	8650	10500	12800

This machine capacity is 24000 bottles per hour (500ml).

330 Ml Automatic Bottling Equipment Stainless Steel Energy Soft Drink Making Machine 0

330 Ml Automatic Bottling Equipment Stainless Steel Energy Soft Drink Making Machine 1

We can supply the complete line plants, capacity ranges from 2000 bottles per hour to 24000BPH,

you are welcome to inquire... ...
