| Name: | 5 Gallon Filling Machine | Filling Material: | Mineral Water, Pure Water |
|---|---|---|---|
| Capacity: | 120-150 Bottles Per Hour | Function: | Wash, Fill, Cap |
| Voltage: | 380V 50HZ 3Phases | Pneumatic Parts: | AIRTAC Taiwan |
| High Light: | 20 ltr water jar filling machine,fully automatic filling machine |
||
v QGF-120 barrel filling line is used to produce 5 gallon drinking water.
v This machine composed with Rinse, filler and capper.
v It is the ideal equipment for mineral water, distilled water and pure water producing process.
v The machine is made of great stainless steel which is corrosion resistant and easy cleaning. Both the inner and outer shower nozzle for washing barrel adopts the special technology equipment from American Sprayer Company.
v The machine works reliably and efficiently based on the compact structure and high automatic technology. It Is a fully automatic barreled water producing equipment combined with machine, electronic and pneumatic components.Stainless steel is food grade ,Automatic cap unscrambler,Automatic protection device.
Technical parameter
| Model | QGF-120 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 | QGF-2000 |
| Filling heads | 1 | 2 | 3 | 4 | 8 | 12 | 16 |
| Volume(L) | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 |
| Barrel size(mm) | φ270×490 | φ270×490 | φ270×490 | φ270×490 | φ270×490 | φ270×490 | φ270×490 |
| Capacity(B/n) | 120-150 | 200-240 | 300-400 | 600 | 900 | 1200 | 2000 |
| Gas pressure(mpa) | 0.4-0.6 | 0.4-0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
| Gas consumption (m3/min) | 0.37 | 0.6 | 0.6 | 1.2 | 2.2 | 3 | 4.5 |
| Motor power(Kw) | 1.75 | 3.22 | 4.8 | 8.5 | 8.5 | 8.5 | 8.5 |
| Rated voltage(V) | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| Outline dimension(mm) | 3790×650 ×1550 | 3550×800 ×1800 2800×1100 ×1800 | 3550×1200 ×1800 3800×1100 ×1800 | 3650×1500 ×1800 3800×1100 ×1800 | 2200×1860 ×2700 | 2560×2350 ×2750 | 3100×2800 ×2750 |
| Weight(kg) | 800 | 2800 | 4000 | 5500 | 7500 | 9500 | 11800 |

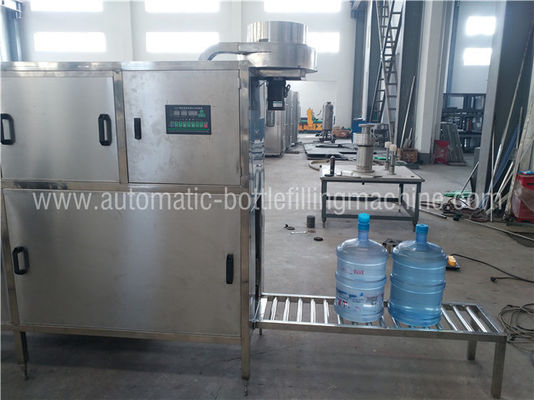

Machine referenced pictures
Pls click the picture to watch the referenced video
FAQ
Q: Are you a factory or a trading company?
A: We are a manufacturer,our factory is at Leyu Town,Zhangjiagang city which is near shanghai and wuxi.
Q: Does your company and products Through the authentication?
A: Yes,we have through famouse certification,ISO,CE,SGS,BV
Q: How long I can get the machine?
A: Accoring to the machine,usually less than 40 days
Q: How can i give you the money?
A: Up to you,T/T,L/C,western union and others will be ok
Q: How can i use the machine
A: The engineer will install the machine for you,and train your employee,also We will give you the user's guide
We can supply complete line plants, capacity from 120 to 2000BPH, looking forward to your contact... ...
