Carbonated Soft Drink Filling Machine Equipment For Soda Factory Bottling Line

Carbonated Soft Drink Filling Machine Equipment For Soda Factory Bottling Line
Carbonated Soft Drink Filling Machine Equipment For Soda Factory Bottling Line

Large Image :  Carbonated Soft Drink Filling Machine Equipment For Soda Factory Bottling Line

Product Details:
Place of Origin: CHINA
Brand Name: JINYATE
Certification: CE ISO
Model Number: DCGF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: pls inquire
Packaging Details: standard wooden case
Delivery Time: 50 working days
Supply Ability: 100 sets per year
Detailed Product Description
Name: Carbonated Soft Drink Filling Machine Function: Washing Filling Capping
Bottle Type: PET Plastic Bottle Bottle Volume: 250-2000ml
Capacity: 6000-8000BPH Control: PLC+Transducer
High Light:

carbonated beverage bottling equipment

,

carbonated beverage filler

Product Application

carbonated soft drink filling machine is consisted of Washing,filling,capping part.Bottle Washing,filling,capping can be carried out on the same machine. The design of the machine is scientific and reasonable.It is a fully automatic and high efficiency carbonated drink filling machine.
It’s producing all kinds of soda drink, carbonated drink contained with PET bottle. The design of the machine is scientific and resonable.

Technical parameter

24 heads carbonated drink filling machine parameters
Model
DCGF24-24-8
Capacity (B/H)
6000-8000BPH basing on 500ml
Bottle size
Neck :φ50-100mm;    Height:150-320mm
Water Pressure
0.25-0.4Mpa
Water consumption(kg/h)
2000
Filling precision
<+1MM
Air pressure
0.5Mpa
Air consumption
0.3m3/min
Power(kw)
5.5



Main Features

1.The series carbonated soft drink filling machine is made as our customer's need, high filling speed for carbonated gas drink, sharing one machine with several PET bottles. It's used in producing all kinds of soda drink, soft drink, carbonated drink, gas drink contained in PET bottle. It adopts the balanced pressure filling technology.
2. Washing,filling,capping can be carried out on the same machine. The design of the machine is scientific and reasonable.
3. The carbonated soft drink filling machine appearance is beautiful and the function is complete. The operation and maintenance is convenient.
4. The carbonated soft drink filling machine filling device can be stopped automatically when there is no bottle or bottles are damaged.
5. Pneumatic value and damped gears are used for bottle conveying, the noise is low and the whole machine runs smoothly.


We provide the complete line plants:
1. water treatment system  Stainless steel 304 material
2. Mixing System: sugar melting pot, filter, pump, carbonator, CO2 filter, refregirator, mixing tank

3. carbonated drink filling machine
4. labeling machine, wrapping machine
5. blowing machine

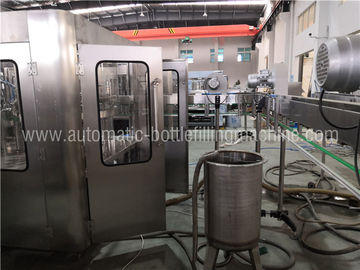

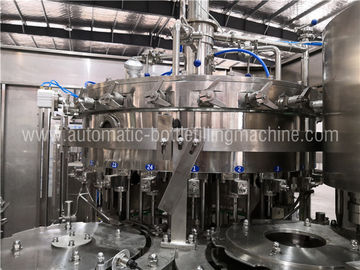

filling machine,   pls click the picture to watch the referenced video
Carbonated Soft Drink Filling Machine Equipment For Soda Factory Bottling Line 0

Carbonated Soft Drink Filling Machine Equipment For Soda Factory Bottling Line 1

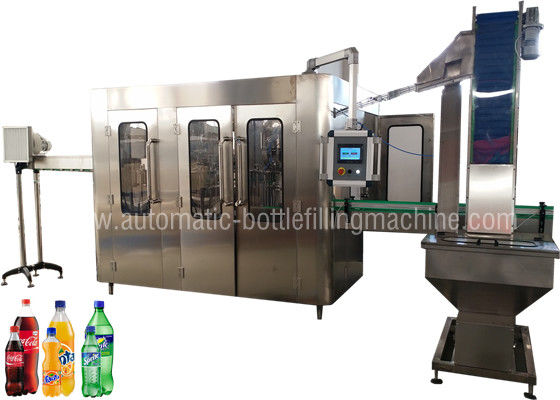

Final product

Carbonated Soft Drink Filling Machine Equipment For Soda Factory Bottling Line 2
we also have other capacities:

Model

DCGF

16-12-6

DCGF

18-18-6

DCGF

24-24-8

DCGF

32-32-10

DCGF

40-40-12

DCGF

50-50-15

DCGF 60-60-15
Number of rising heads16182432405060
Number of filling heads12182432405060
Number of capping heads66810121518
Bottle standard(mm)

Diameter:Φ50-Φ108

Height:150-320

production capacity (based on 500ml bottles per hour)20004000700010000130001800024000
Installed capacity(KW)3.84.36.58.79.51220


FAQ

Q: How to get an appropriate offer from New Crown Machinery?
A: Please inform us:
1, production capacity per hour/per day/per month ... ...
2, filling liquid: water, juice, carbonated drink, beer or ... ...
3, bottle type: plastic bottle, glass bottle, can or ... ...
4, cap type: screw cap, crown cap, can lid or ... ...
5, for water treatment, it's better offer us the raw water quality report ... ...
Q: What can I do if I haven't gotten any clue of the production line? I just wanna open a factory and to do the business.
A: Don't worry about this; You can inform us:
1, the exact production you wanna deal with;
2, the budget of the production line; If no budget of the business, I will send you the popular machine in our factory for your ref;
3, we will help tp design everything including the machine layout and factory layout;
Q: This is the first time I cooperate with your factory. How can I trust you about the machine quality?
A: Before ordering the machine, we will make the offer very clear. For example, the material thickness, the brand etc. We can have the video call and I will show what we have in the factory;
Also you can visit us to see the machine;
Q: If the quality doesn't meet my requirement, how can you solve this problem?
A: Before ordering the machine, we will negotiate the machine inspection standard. Then start production; If you are not satisfied with the quality, show us, we will re-do it before shipping;
Q: Can I run the machines in your factory if I buy the complete line in your factory?
A: Sure, why not. We will have the line connected and tested in our factory before shipping even you didn't mention; We will make it working before arriving at your factory;
Q: How can I get the machine?
A: Our company have the export license, so we can help to ship the machine to discharge port that you are available.
Q: How can I install the machine and commissioning? Do you have the technician to my factory?
A: We have the technician available to your factory for machine installation and commissioning; BUT client should be responsible for the round-way flight tickets, technicians' daily salary, local transportation, local hotel and eating.
