| NAME: | CAN Washer Filler Seamer | Filling Material: | Various Juice, Non-gas Liquid |
|---|---|---|---|
| Suitable Can: | Tin Can, Aluminum Can, PET Can | Capacity: | 2000 Cans Per Hour |
| Material: | Stainless Steel SUS304 | Voltage: | Customize |
| High Light: | aluminum can filling machine,beverage canning machine |
||

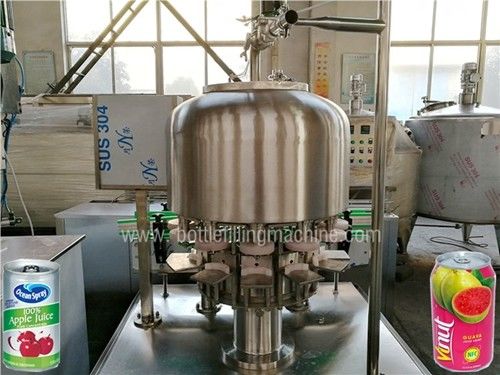

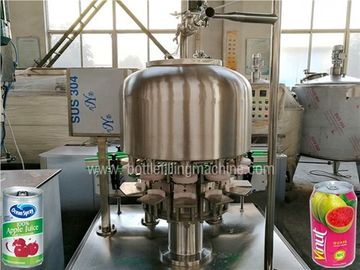

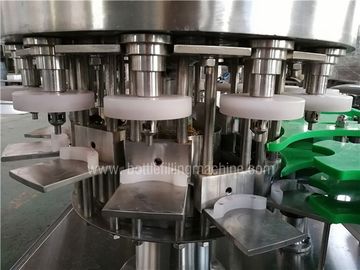

This machine is for canning juice production, can wash fill and seam, capacity about 2000 cans per hour. It's price is much lower than monobloc, operation simply, is the ideal machine for small scale production.
1/Juice Preparing System
2/Water Treatment Syatem
3/Empty can unloading machine
4/Slide - type empty tank spray washer
5/Can juice washing filling sealing machine
6/Spray sterilizing chiller (including local control cabinet and electrical control device)
7/Wrapping machine
1 Raw water tank + Raw water pump
2 Silica sand filter + Active carbon filter + Sodium ion exchanger + Precision filter + Security filter
3 Reverse Osmosis (one level)
4 UV sterilizer
5 Finished water tank + Pure water pump
1 High-shear emulsifying tank + Plate heat exchanger
2 Mixing tank
3 UHT sterilizer + homogenizer machine + Buffer tank
4 Hot water system + Hot water tank
5 CIP cleaning system
1/PE film shrink wrapping machine
2/Half-tray shrink wrapping machine
3/Carton box packaging machine
| Modle | Filling material | Capacity | Motor Power |
| CGF12-12-1 | Juice, tea drink, flavor water, non-gas drink | 1000-2000BPH | 3.05KW |
| CGF 12-12-4 | 2000-4000BPH | 4.07KW | |
| CGF 12-12-5 | 3000-6000BPH | 4.80KW |
We can supply complete juice line, from 2000 bottles per hour to 24000BPH, pls contact we will offer video
