| Name: | Water Filling Machine | Function: | Washing Filling Capping |
|---|---|---|---|
| Suitable Bottle: | PET Bottle, HDPE Bottle | Bottle Volume: | 250-2000ml |
| Material: | Stainless Steel SUS304 | Frequency Transducer: | Mitsubshi |
| High Light: | automatic liquid filling machine,rinsing filling capping machine |
||

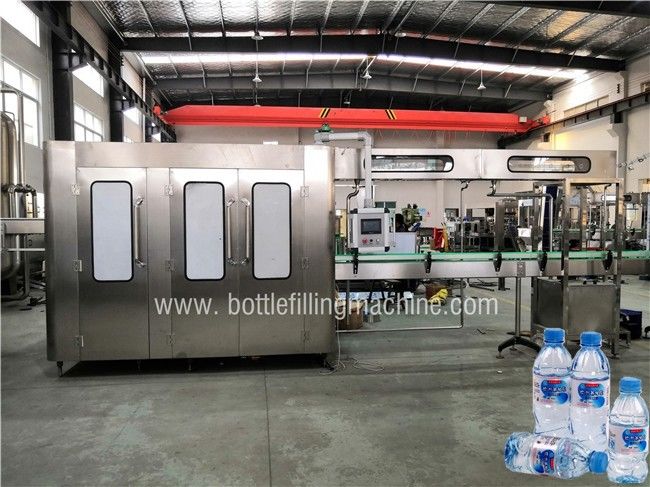

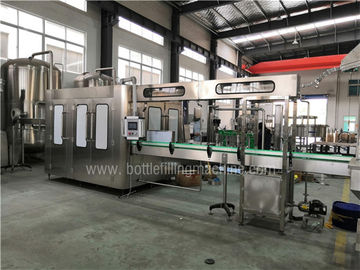

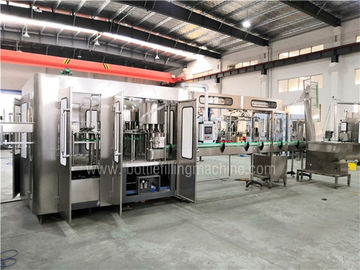

This machine is used to produce bottled water, integrates washing filling capping three functions in one unit, can package mineral water, pure water, drinking water, still water, flavor water or juice and other non-gas liquid.
Advantage
Automatic Washing-Filling-Capping 3-in-1 Machine
1. We use direct connection technology between air conveyor and in-feeding starwheel to substitute in-feeding screw and conveyor to ease the process of bottle-size-changing.
2. Neck-hanging technology is applied in bottle transportation. Instead of traditional starwheel, we use neck-hanging gripper to make bottle-size-changing easily, without equipment height adjustment, only arch board and starwheel such little nylon parts need to be changed.
3. Specially-designed rinser grippers which are made of stainless steel are firm and endurable, with no contact to screw part of the bottle to prevent second pollution.
4. Rapid gravity filling valve with high flow makes filling faster with accurate liquid level and without any liquid loss.
5. Splint of starwheel using twist descending way to simplify the process of bottle-size-changing.
6. The machine applies to the production of natural mineral water, purified water and mineralized water.
Machine parameter
| Model |
CGF 16/12/6 |
CGF 18/18/6 |
CGF 24/24/8 |
CGF 32/32/10 |
CGF 40/40/12 |
CGF 50/50/15 |
CGF 60/60/15 |
CGF 72/72/18 |
|
| Rinsing Head | 16 | 18 | 24 | 32 | 40 | 50 | 60 | 72 | |
| Filling Head | 12 | 18 | 24 | 32 | 40 | 50 | 60 | 72 | |
| Capping Head | 6 | 6 | 8 | 10 | 12 | 15 | 15 | 18 | |
| Capacity (500ml) | 4000BPH | 6000BPH | 10000BPH | 15000BPH | 20000BPH | 24000BPH | 27000BPH | 32000BPH | |
| Pressure of air source | 0.7Mpa | 0.7Mpa | 0.7Mpa | 0.7Mpa | 0.7Mpa | 0.7Mpa | 0.7Mpa | 0.7Mpa | |
| Air consumption | 0.25M3/min | 0.8M3/min | 0.8M3/min | 0.8M3/min | 0.8M3/min | 1M3/min | 1M3/min | 1.2M3/min | |
| Pressure of rinse water |
0.2~0.25MPa |
||||||||
|
Consump- tion of rinsing water |
1t/hour | 1.2t/hour | 1.2t/hour | 2t/hour | 2t/hour | 3t/hour | 4t/hour | 5t/hour | |
| Filling Pressure | 0.2-0.3MPa | ||||||||
| Suitable bottle size |
250ml-2000ml D:50-108mm H:150-320mm |
||||||||
| Power | 2.5KW | 3.5KW | 4.5KW | 5.6KW | 6.3KW | 7.5KW | 11KW | 15KW | |
| Weight | 2500KG | 3000KG | 4000KG | 5000KG | 6000KG | 7500KG | 8500KG | 10000KG | |
|
Packing Size (L*W*H)(mm) |
2200×1800 ×2300 |
2300×2000 ×2300 |
3000×2200 ×2800 |
4000×2600 ×2800 |
4700×2950 ×2800 |
5100×4800 ×3000 |
6200×4950 ×3000 |
7000×5500 ×3000 |
|
After-sales services
1.After qualified of the equipment, the seller will supply one year guarantee, control system one year guarantee, free charge for wearing parts, and other spare parts with cost price.
2.Within guarantee period, the technicians who accepted training should strictly obey the requirements asked by the seller to operate the equipment and maintenance, to find the common malfunctions and fault clearing in time;
3.If the technicians of the buyer couldn't solve the problems themselves, the after-sales department will supply long range guide service by phone;
4.If relevant measurements couldn't solve the problems, the seller will send the technicians to the buyer factory, clear the fault or relevant technical problems on site, the charges will reference to the installation and debugging charges.
5.After guaranteed, the seller will supply widely favorable technical support, after-sales service for the lifetime: favorable price for the wearing parts and other spare parts.
We can supply complete line, capacity from 2000 bottles per hour to 30000BPH, you are welcome to inquire... ...
