2-In-1 Monoblock PLC Control Beer Canning Line / Carbonated Beverage Can Filling Machine

Certification
China Zhangjiagang Jinyate Machinery Co., Ltd certification
China Zhangjiagang Jinyate Machinery Co., Ltd certification
Customer Reviews
Your machine quality is very good and technical team very professional, hope our products sell well!

—— Shiferaw Habte

I have worked with them for five years, their juice and carbonated machine help me spread my busniess acorss Africa, this year we place an 24000BPH carbonated line, looking forward to the machine installation in our factory early.

—— Umesh

I'm Online Chat Now

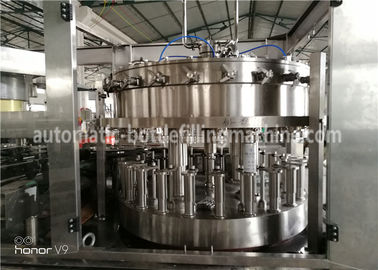

2-In-1 Monoblock PLC Control Beer Canning Line / Carbonated Beverage Can Filling Machine

2-In-1 Monoblock PLC Control Beer Canning Line / Carbonated Beverage Can Filling Machine
2-In-1 Monoblock PLC Control Beer Canning Line / Carbonated Beverage Can Filling Machine

Large Image :  2-In-1 Monoblock PLC Control Beer Canning Line / Carbonated Beverage Can Filling Machine

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE ISO SGS
Model Number: DGCF12-4
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Good plastic film wrapping,Standard wooden boxes
Delivery Time: 30-45 working days
Supply Ability: 15 Set/Sets per Month
Detailed Product Description
Filling Pressure: Isobaric Pressure Capacity: 4000BPH
Control: PLC+touch Screen Power: 5.03kw
Material: Food Grade Stainless Steel 304 Can Material: Aluminum Can/PET Can/Tin Can
Processing Type: Carbonated Drink,cola,fanta,pepsi Can Size: 200ml-2000ml
High Light:

aluminum can filling machine

,

beverage canning machine

2-In-1 Monoblock PLC Control Beer Canning Line / Carbonated Beverage Can Filling Machine



Brief introduction

1. Capacity:4000cans per hour based on 250ml aluminum can

2. Filling pressure:Isobaric pressure

3. Machine structure:Filling sealing 2-in-1 monoblock



Main Features

1. The filling valves are pneumatic control, automatic lifting, online filling volume adjustment, high automation.
2. Special care has been taken in the gasket design, both in the shape and material, since the long service life is our aim. All the seals are “food-grade” certified and can withstand sterilization. The CIP cleaning solution gets in contact with every part and interstice of the valves.
3. The filler is equipped also with a system that allows to set the filling level in the cans thanks to mechanical operations that can stop the bottle lifter action and consequently the penetration of the valves into the cans.
4. The whole filling process can be set directly from the touch panel and easily changed in case of need.
5. High filling level accuracy with extremely low tolerance. Running smoothly with very few bad cans, liquid spilling out, beer loss ≤0.5%.
6. “No can-no lid” electronic device
7. Driven can lifters. Double cam for raising/lowering.
8. The machine is equipped with one-way automatic centralized lubrication.

2-in-1 monoblock

2-In-1 Monoblock PLC Control Beer Canning Line / Carbonated Beverage Can Filling Machine 0

Filling Part(isobaric valve)

1) Adopted Germany tech anti-corrosion non-maintaining bearing that can reduce the pollution of filling to the environment.
2)The pressure mechanical valve is introduced the advanced foreign design with a fast filling speed, no hygiene corner pocket, a few sealing parts, and precise liquid level control. The whole valve is made of 304 stainless steel.
3)The filling system can connect a CIP circulation system to wash the pipeline .This system can clean the liquid pipe, liquid tank and filling valve etc. effectively.

2-In-1 Monoblock PLC Control Beer Canning Line / Carbonated Beverage Can Filling Machine 1

Seaming part

1, Ingenious lid loading device to make sure no can, no lid loading, no sealing;
2, Energy saving model, one motor can process all actions;
3, Full sealing effect make sure to be suitable for liquid packing can;
4, The machine suitable for all kinds of cans with same diameter, height can be adjusted easily;
5, Twice sealing tech to make well sealing effect, no leakage;

2-In-1 Monoblock PLC Control Beer Canning Line / Carbonated Beverage Can Filling Machine 2



Technical parameters

Model DGF12-4 DGF18-4 DGF24-6
Capacity (can/Hour) 4000 6000 8000
Suitable can size ( ml )

150ml-500ml

φ53-φ72.9mm

height 65-190mm

φ52.5-φ83.3mm

height 70-133mm



Can size 200/202/206/209
Heads of filling 12 18 24
Heads of sealing 4 4 6
Filling way whole machine bottom lifting up, and Isobaric pressure filling
Power source specification AC380V/50HZ
Power (kw) 3 4 5.5
Overall dimension(mm) 2500x2000x2350 2850x1800x2200 3200x2100x2350
Weight(kg) 3800 3850 4200
