Rotary Milk Tea / Juice / Coffee Drink Glass Bottle Filling Machine , Glass Bottle Packing Machine

Rotary Milk Tea / Juice / Coffee Drink Glass Bottle Filling Machine , Glass Bottle Packing Machine
Rotary Milk Tea / Juice / Coffee Drink Glass Bottle Filling Machine , Glass Bottle Packing Machine

Large Image :  Rotary Milk Tea / Juice / Coffee Drink Glass Bottle Filling Machine , Glass Bottle Packing Machine

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: RCGF18-18-18-18-6
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Plastic film wrapping,standard wooden boxes packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Detailed Product Description
Driven Type: Electric Warranty: One Year For Free
Machine Structure: Rotary Type Weight: 6000kg
Machine Material: Stainless Steel 304 Filling Temperature: Hot Filling
Capacity: 2000-3000BPH(500ML)
High Light:

glass bottle filling and capping machine

,

water glass filling machine

Rotary Milk Tea / Juice / Coffee Drink Glass Bottle Filling Machine , Glass Bottle Packing Machine


Specific information
1. This 5-in-1 unit machine is suitable for glass bottle
2. Capacity:2000-3000 bottles per hour
3. Hot filling machine with back-flow system
4. It can be used for filling juice,milk,tea,water,non-gas contained beverage.

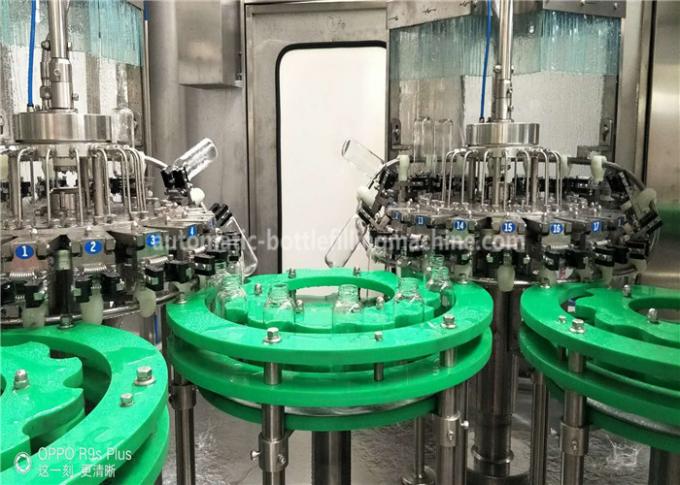

Rinsing(disinfectant,pure water): grip the bottle neck, rotate filling plate, inverse bottle; internal rinsing and external spraying make bottles be cleaned completely.
Sterilzing:use a steam generator to provide the steam,the steam sterilzing part is isolated,It also use a cap sterilizer to sterilzing the caps.

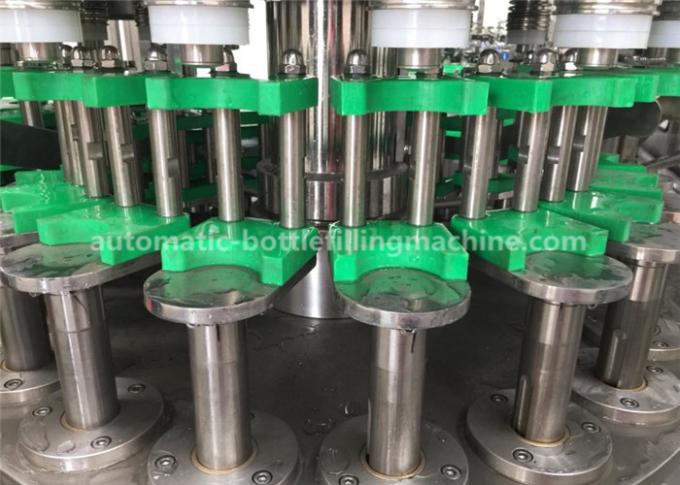

Filling: hot filling with holding bottle neck; the special back-flow type of the filling valve can avoid leakage after filling and also control liquid level accurately.
Capping: magnetic torque bottle holding type can minimize the cap damage rate and make the capping performance the best.

This machine is my company's advanced technology development.It is customized according to our customer's special requirements. It intergrates washing by disinfectant,washing by pure water,sterilizing by steam,filling and capping in one unit machine.It also have beautiful overall appearance and excellent mechanical operation functions.

Advantages of our glass bottle 5-in-1 juice filling machine
1). Full filling to avoid the liquid level from sinking after the bottle cooling down, and to decrease the dissolved oxygen to the utmost extent.
2). Reasonable structured storage hopper and material supply system make the material in constant flow speed, constant pressure without frothing. Usually high position tank is adopted.
3). The storage hopper has the characteristic of gas discharge, full sealing and temperature detecting. In moderate and high speed production line, the material distributor replaces the big liquid tank to realize the complete CIP.
4). Sanitary filling head system is of umbrella structure, high filling speed.
5). Perfect filling temperature control system.
6). Reflux tank system has the function of supplying the material automatically.
7). Perfect CIP system.


Technique parameter

Model RCGF18-18-18-18-6
Productivity 2000-3000BPH
Rinsing Head(disinfectant) 18
Rinsing Head(pure water) 18
Sterilizing by steam 18
Filling Head 18
Capping Head 6
Bottle Volume 350ml~2000ml±10ml
Bottle Diameter φ50-92mm
Bottle Height 150-310 mm
Filling Tolerance ±2%
Cap Size 28mm and 30mm Aluminum Standard Caps
Air Pressure 0.6MPa
Air Consumption 500 L/min
Gas Consumption 0.4 m3/min
Motor Power 9.68kW
Voltage 380V
Dimension (L×W×H) 2950*1800*2200mm
Weight 6000kg
Filling Principle Gravity Filling





Rotary Milk Tea / Juice / Coffee Drink Glass Bottle Filling Machine , Glass Bottle Packing Machine 0
