| Dimension(L*W*H): | 1100*1050*1800mm | Weight: | 1600kg |
|---|---|---|---|
| Filling Material: | Gas Liquid/carbonated Drink | Capacity: | 1500BPH |
| Function: | Bottle Washing Filling Capping | Material: | Stainless Steel 304 |
| Bottle Type: | Glass Bottle | Bottle Volume: | 200-2000ml |
| High Light: | automatic liquid filling machine,rinsing filling capping machine |
||
Video show
https://www.youtube.com/watch?v=klJ9mJvd5ac&feature=share
Specifications

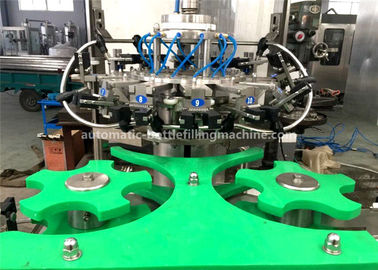

small scale beer bottling machine
1) 3 parts: washing,filling,capping on a production line.
2) capacity:1000bph - 2000bph
3) volume:200ml - 2000ml.
Main technical parameter
| Model | QS-12 DY-12 YG-6 |
| Production capacity | 1000-2000BPH |
| Number of washing head | 12 |
| Number of filling head | 12 |
| Number of capping head | 6 |
| Diameter of bottle | 62-100mm |
| Height of bottle | 160-320mm |
| Bottle volume | 250,375,500,625ml |
| Bottle/can type | glass bottle,PVC bottle,POP-top can |
| Filling pressure | 0.2-0.3Mpa |
| Filling temperature | 2-6.C |
| Cap type | crown type |
| Power | 1.5kw |
Main Features:
1) Simple structure in 3 in 1 type, easy in installation and maintenance.
2) Adopting advanced world famous brand components in pneumatic parts , electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization, no pollution
5) Apply a linker to connect with the air conveyor , which can directly inline with filling machine.
The washing part
Bottle rinsing machine parameter:
Washing head - 12 heads;
Capacity:1000bph;
Voltage :AC 380V+/- 5% 50Hz, 0.75kw ;
Bottle diameter:56- 100mm;
Bottle height : 160- 310 mm;
Net Weight: 800kg;
Packaging Dimension 1450*1350*1950mm.
The filling part
The filling machine parameter :
Filling head -12 heads,
Capacity 1000 BPH
Voltage: AC+/- 5% 50Hz;
Bottle mouth Interior diameter: 15*25mm;
Bottle body Exterior diameter: 55*95mm;
Bottle Height 160-310;
Timing electromotor:0.75kw Rate 125-1250r/min;
Speed-down electromotor model: WHT100-50VIII;
Net Weight 1000kg ;
Packaging Dimension 1250*1050*2250mm.
The capping part
Sealing machine parameter:
Capacity:2000B/Hr;
Voltage: AC+/- 5% 50Hz,Power 0.75Kw;
Net Weight 600kg;
Packaging Dimension 1180*950*2350mm;
bottle shape spe. diameter:56- 100mm;
bottle heigh diameter:160- 310mm;
bottle mouth screw thread diameter:27mm;
Pilfer Proof Cap Tamperproof Cap dimension: 28*15mm(inner size).
Our service line
1. Bottle Design Service
Our engineer can design different bottle drawing for your reference!
Contact Us: We will send design drawing!
2. Layout Design Service
We supply standard layout for each water filling machine line, also available for customize design layout based on Customers Factory Area!
Give US: Factory Area
3. Label Design Service
Design colorful label for customers’ choice
Provide Us: Information wants to put on label
Before Sales service provided
1. Answer your any question on us within 24 hours.
2. Supply all information you required.
3. Machines video for reference
4. Welcome to visit factory
On Sales service for you
1. Update production progress each week
2. Sending machines pictures on production
3. Machines testing running over 8 hours, and sending testing videos
Good after-sale service offered
1. Professional QC and engineer team
2. Installation on site and free technology training
3. Perfect spare parts supply system
