| Driven Type: | Electric Type | Weight: | 2000KG |
|---|---|---|---|
| Overall Dimension: | 1800*1200*2150mm | Power: | 5.88kw |
| Filling Temperature: | Hot Filling | Capacity: | 3000BPH(500ml) |
| Bottle Material: | Glass Bottle | Material: | Stainless Steel 304 |
| High Light: | glass bottling equipment,glass bottle filling and capping machine |
||
General description
3-in-1 filling machine, combined with rinsing, filling and capping. It is innovated and designed in the requirement of still pure water and mineral water, on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy.
Main features
1. Rinser
Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180° Along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.
Rinsing machine adopts Sunswell original oVERTUrn and double-opened bottle clip. Bottle clip lock the bottleneck, the material of bottle clip is SUS304, which is hygienic and durable.
Bottle clip equipped with efficient spray on nozzle. The extrusive droplet with 15° Angle ensures to wash all side of the bottle, and can save the water.
Made of stainless steel of superior quality.
Equipped with bottle jam protection device.

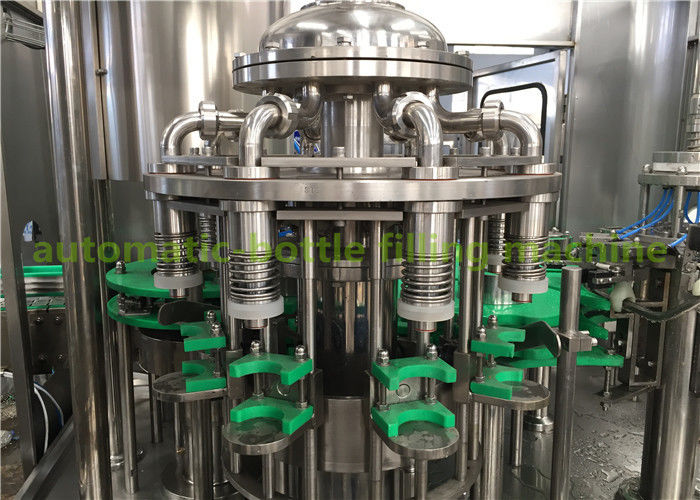

2. Filler
The design of filling structure is reasonable and hygiene dead angle, the run of equipment is stable, it can control the material from the bottleneck, the control accuracy is within ± 2mm (subject to bottle design). The filling valve material is SUS304. The filling system has liquid level automatic control. Filling valve lift is controlled by the valve elevator, after filling valve contact the bottleneck, it start to fill. Bottle is conveying by the wheel in the filling part.

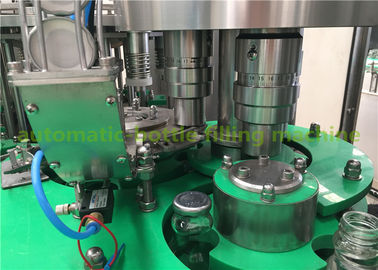

3. Capper
Screw capping machine is most precision part in the 3-1 machine, it has a big influence to the goods stability and defective rate. Our screw capping has following feature.
Equipment structure
Base
Rotary rinser
Rotary filler
Rotary capper
Bottle infeed and outfeed system
Control
IF you want to the detailed quotation,please leave me these message
1, bottle vlolume
2, bottle materail (machines for glass bottle and plastic bottle are different)
3, how many bottles per hour you want to produce ?
4, do you need this water filling machines only or whole water production line
Our factory can provide products as below
1.Pure/mineral/drinking/spring/distilled water filling machine/complete production line
2.Juice/juice pulp(particle) filling machine/complete production line
3.Tea/mikl drink/vinegar/soy sauce filling machine
4.Carbonated drink/beer/cola/soda water filling machine/complete production line
5.5 gallon/20 liter water barrel filling machine/complete line
6.Complete water treatment system
7.Bottle packaging system.Bottle blowing and moulding machine
Technique parameter
| Model | RCGF8-8-3 |
| Rinsing Head | 8 |
| Filling Head | 8 |
| Capping Head | 3 |
| Bottle Volume | 350ml~2000ml±10ml |
| Bottle Diameter | φ50-92mm |
| Bottle Height | 150-310 mm |
| Filling Tolerance | ±2% |
| Cap Size | 28mm and 30mm PE Standard Caps |
| Air Pressure | 0.6MPa |
| Air Consumption | 500 L/min |
| Gas Consumption | 0.4 m3/min |
| Motor Power | 9.18kW |
| Voltage | 380V |
