| Product Name: | CSD Drink Filling Machine | Function: | Rinser Filler Capper |
|---|---|---|---|
| Suitable Bottle: | PET Plastic Bottle | Suitable Cap: | Plastic Screw Cap |
| Filling Material: | CSD Drink | Material: | SUS304 |
| Electric Power: | 380v 50hz 3phases | ||
| High Light: | soda bottling machine,carbonated beverage bottling equipment |
||
Bottle Filling Machine, Carbonated Drink Filler,
CSD Bottling Plant
CSD filling machine / bottling plant
1.Materials:SS304/316
2.Bottle size:200ml--2L
3.Capacitys:15,000 bottls/hour
4.Accept special design
5.CE ISO certificate
Introduction:
Drink Filling Machine combines washing, filling and rotary capping functions in one unit, it is a
fully automatic and high efficiency liquid packing equipment.
It is suitable for packing beverage containing gas. Its performance is as follwing: all parts, for
instance, filling valve, which directly contact medium are made of stainless steel or harmless
material.
Characteristics
1. Using the wind sent access and move wheel in the bottle directly connected technology;
canceled screw and conveyor chains, this enable the change the bottle-shaped become
easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to
adjust the equipment level, only change related the curved plate, wheel and nylon parts is
enough..

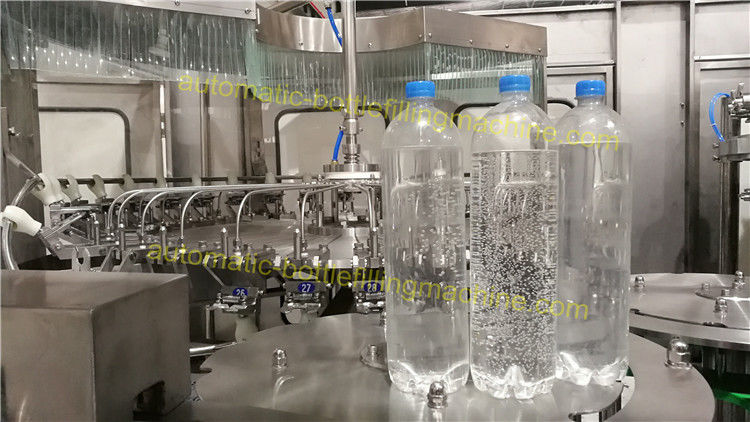

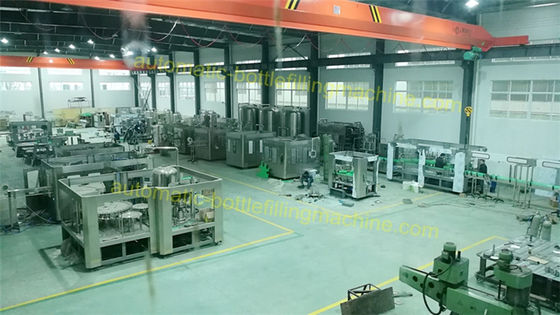

Machine pictures
Besides this DCGF32-32-10, we also have other capacity
| Model | DCGF16-12-6 | DCGF18-18-6 | DCGF24-24-8 | DCGF32-32-10 | DCGF40-40-12 | DCGF50-50-15 |
| Number of rising heads | 16 | 18 | 24 | 32 | 40 | 50 |
| Number of filling heads | 12 | 18 | 24 | 32 | 40 | 50 |
| Number of capping heads | 6 | 6 | 8 | 10 | 12 | 15 |
| Bottle standard(mm) |
Diameter:Φ50-Φ108 Height:150-320 |
|||||
| Rated production capacity(500ml) | 2000BPH | 4000BPH | 7000BPH | 8000BPH | 10000BPH | 12000BPH |
| Installed capacity(KW) | 3.8 | 4.3 | 6.5 | 8.7 | 9.5 | 12 |
when inquirying, pls answer the following questions:
1. what's bottle volume;
2. how many bottles per hour;
3. only this filling machine or all complete line plants
thanks
