Product Details:
Payment & Shipping Terms:
|
| Driven Type: | Electric | Material: | Stainless Steel 304 |
|---|---|---|---|
| Power: | 8.07kw | Weight: | 5000kg |
| Capacity: | 8000-1000BPH(500ml ) | Voltage: | 380V 50Hz |
| Application: | Beverage, Commodity, Food | Dimension(L*W*H)): | 3600*2200*2600mm |
| High Light: | soda bottling machine,carbonated beverage bottling equipment |
||
Machine advantage

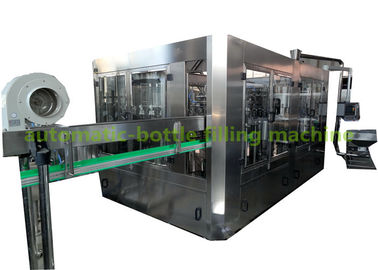

1. The DGCF carbonated drink filling machine For gas drink, as coca cola,pepsi cola,soda water,beer...
2. It is Suitable for 200ml-2000ml bottle
3. It is washing filling capping 3 in 1 machine full automatic
4. Our company have passed CE, ISO certification
Features
Rinser
1. The rotary wheel is a fully stainless steel welded structure.
2. The machine applies unique overturning bottle clamp, which is an innovation of our company.This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination cause by rubber gripper block of a traditional bottle clamp. Made of SUS304 stainless steel, this bottle clamp is hygienic and durable.
3. The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.
4. All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free bearing.
5. The rinser is driven by driving system positioned inside machine frame via gear transmission.
6. Transfer starwheel
7. Made of stainless steel of superior quality.
Filler
1. Rotary wheel fully made of stainless steel SUS 304.
2. Gravity filling method.
3. Filling valves are made of SUS316L.
4. Filling valves are reasonably structured with accurate filling.
5. Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle- mouth.
6. Level of cylinder is controlled with float-ball.
7. Filler is driven through gears inside the machine frame
8. Link-wheels in rinser, filler and capper are transported in ringed support of bottle-neck.
Capper
Capper is the machine with highest precision, influence very much with the stability and reliability of the
filling monoblock. Our capper features as follows:
The equipment is designed with the support of experts and uses the technology of Arol from Italy, most advance technology in the world, developed with the experience of asepsis filling machine. For example, I) extruding wheel (main part to control the stability when sealing), uses the technology of Arol. Kinematical and kinetic design of the wheel by experts improves the stability and credibility of the equipment. II) Sealing faucet (main part to control the credibility of sealing), is improved by experts with the design of alnico. Besides the magnetic contortion variation device, there is variation dial which makes variation more easily. The benefit of this design is not only it can set the contortion, but also it makes contortion more precise and credible, and reduces inferior.
Technique parameter
| Model: | DCGF16-12-6 | DCGF18-18-6 | DCGF24-24-8 | DCGF32-32-10 | DCGF40-40-12 | ||
| Production Capacity(500ml)(B/H) | 2000-4000 | 4000-6000 | 6000-8000 | 8000-10000 | 10000-12000 | ||
| Bottle standard (mm) | (Bottle Diameter):φ50-.φ110mm (Height):150-340mm | ||||||
| Suitable Cap shape |
Plastic srew cap
|
||||||
| Filling precision |
≤±5mm
|
||||||
| Filling pressure(Mpa) | <0.4 | ||||||
| Water pressure of Washing bottle(Mpa) | 0.18-0.25 | ||||||
| Water consumption for water bottle(kg/h) | 1300 | 2000 | 2500 | 3000 | 3000 | ||
| Spraying Position | 5 | 5 | 6 | 12 | 12 | ||
| Dripping Bottle Position | 2.5 | 3.0 | 3.5 | 7 | 7 | ||
| Gas source Pressure(Mpa) | 0.4 | ||||||
| Gas consumption(m³/min) | 0.3 | 0.4 | 0.4 | 0.5 | 0.5 | ||
| Total power(kw) | 5.03 | 5.03 | 6.57 | 8.07 | 8.07 | ||
| Overall size:(mm) | 2100*1500*2200 | 2450*1800*2200 | 2750*2180*2200 | 3600*2200*2600 | 3600*2200*2600 | ||
| Weight: (kg) | 2000 | 3000 | 4000 | 5000 |
5000 |
||
