| Warranty: | One Year For Free | Dimension(L*W*H): | 3600*2200*2600mm |
|---|---|---|---|
| Voltage: | 380V 50Hz | Control: | PLC+Touch Screen |
| Filling Pressure: | Balanced Pressure Filling | Filling Material: | Gas Contained Beverage |
| Capacity: | 8000-1000BPH(500ml ) | Factory Location: | 2 Hours From Shanghai |
| High Light: | soda bottling machine,carbonated beverage bottling equipment |
||
Description

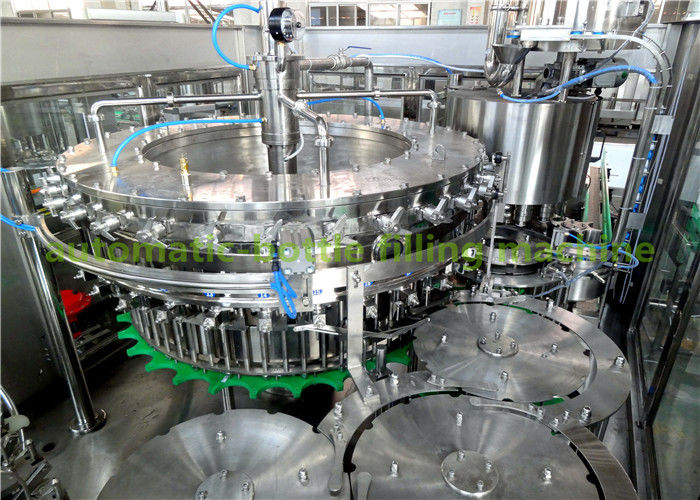

DGCF32-32-10 carbonated drinks filling machine is suitable for packing beverage containing gas. Its performance is as follwing: all parts, for instance, filling valve, which directly contact medium are made of stainless steel or harmless material. So it conforms to the requirements of Food sanitation. Sealing parts are made of heat-proofing rubber, in order to meet the technique requirements of users to sterilization at high temperature. Using programmable controller to realize fully automatic control from bottles entering to finishing packing.
Using transducer as speed regulator, so the user can regulate the machine easily to suit different power requirements. Adopting equal pressure filling principle and current spring valves in order to assure beverage quality. Using advanced magnetic coupler to regulate cap-screwing torque, in order to assure capping quality.
Characters
1. Washing, filling and sealing devices equipped on the same machine.
2. The design of the machine is scientific and reasonable. The appearance is beautiful and the function is complete.
3. Its operation and maintenance is convenient. Its automation is high. The advanced technology from Italy and Germany are employed.
4. The speed of filling is fast and the liquid amount is controlled accurately.
5. The filling can be stopped automatically when there is no bottle or bottles are damaged. The advanced auto-washing technology is used in system.
6. Pneumatic valve and damped gears are used for bottle conveying, the noise is low and the whole machine runs smoothly. The magnetic torque is used for screw capping.
7. The power of screw capping can be adjusted without steps. The power of screw capping can also be fixed, and the caps will not be damaged, the capping is shortage of caps in the caps storage tank, an alarm signal will be generated and the caps will be fed automatically.
8. The whole machine is controlled by PLC with touch-screen as the interface between human and machine.
9. The amount of the drinks in the drink tank can be controlled automatically.
10. The filling and capping will be stopped automatically when there is no bottle. When are cramped wrongly or when caps are not available, the machine can be stopped automatically.
Technique parameter
| Model: | DCGF16-12-6 | DCGF18-18-6 | DCGF24-24-8 | DCGF32-32-10 | DCGF40-40-12 | ||
| Production Capacity(500ml)(B/H) | 2000-4000 | 4000-6000 | 6000-8000 | 8000-10000 | 10000-12000 | ||
| Bottle standard (mm) | (Bottle Diameter):φ50-.φ110mm (Height):150-340mm | ||||||
| Suitable Cap shape |
Plastic srew cap
|
||||||
| Filling precision |
≤±5mm
|
||||||
| Filling pressure(Mpa) | <0.4 | ||||||
| Water pressure of Washing bottle(Mpa) | 0.18-0.25 | ||||||
| Water consumption for water bottle(kg/h) | 1300 | 2000 | 2500 | 3000 | 3000 | ||
| Spraying Position | 5 | 5 | 6 | 12 | 12 | ||
| Dripping Bottle Position | 2.5 | 3.0 | 3.5 | 7 | 7 | ||
| Gas source Pressure(Mpa) | 0.4 | ||||||
| Gas consumption(m³/min) | 0.3 | 0.4 | 0.4 | 0.5 | 0.5 | ||
| Total power(kw) | 5.03 | 5.03 | 6.57 | 8.07 | 8.07 | ||
| Overall size:(mm) | 2100*1500*2200 | 2450*1800*2200 | 2750*2180*2200 | 3600*2200*2600 | 3600*2200*2600 | ||
| Weight: (kg) | 2000 | 3000 | 4000 | 5000 |
5000 |
||
