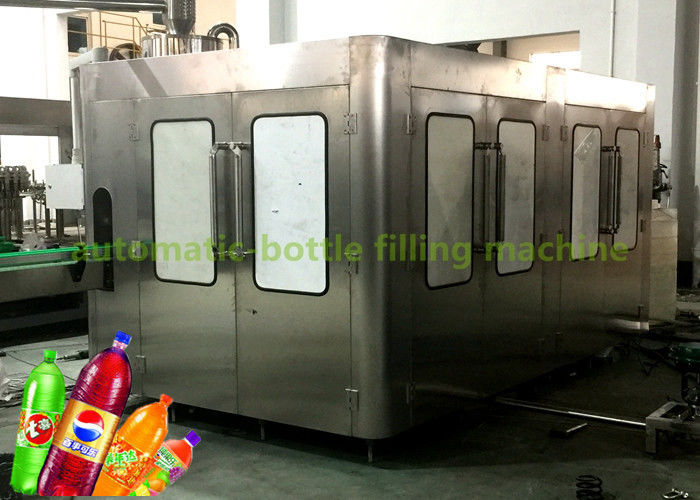

Automatic Isobar Fizzy Drinks / Carbonated Soft Drink Filling Machine 8.07kw

Automatic Isobar Fizzy Drinks / Carbonated Soft Drink Filling Machine 8.07kw
Automatic Isobar Fizzy Drinks / Carbonated Soft Drink Filling Machine 8.07kw

Large Image :  Automatic Isobar Fizzy Drinks / Carbonated Soft Drink Filling Machine 8.07kw

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: DGCF32-32-10
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Standard Wooden Boxes
Delivery Time: 30-45 working days
Supply Ability: 10 Set/Sets per Month
Detailed Product Description
Power: 8.07kw Dimension(L*W*H): 3600*2200*2600mm
Weight: 5000kg Voltage: 380V 50Hz
Control: PLC+Touch Screen Filling Pressure: Balanced Pressure Filling
Filling Material: Gas Contained Beverage Capacity: 8000-1000BPH(500ml )
High Light:

soda bottling machine

,

carbonated beverage bottling equipment





Automatic Isobar Fizzy Drinks / Carbonated Soft Drink Filling Machine 8.07kw




Brief introduction

This model special for liquid bottle filling, combined with rinsing, filling and capping. It is innovated and designed in the requirement of carbonated beverage technics, on the bases of introducing, digesting and absorbing advanced technology abroad. It is reasonable in structure, safe to operate and easy to maintain, which is an ideal choice for beverage producers.



Description

1. This series production line collected washing, filling, capping, labeling and packing machines together.

2. We adopted advanced balanced pressure gravity for filling, the filling effect are fast, steady, quasi and equipped with the material recirculating system, realize backflow independently, not contact with material and avoiding second pollution and oxidation.

3. The whole production line adopts human-machine interfaces, touch-screen, PLC computer controller and other advanced technologies.

4. With automatic inspect system of filling temperature automatic, caps supplying material high-temperature alarm, low-temperature shutdown and automatic retum, no bottle, no vorer, wait when lack of bottles, lacking caps shutdown and so on, realize no bottle, no filling.

5. Output range is 2000-20000bottles/hour. (can fill 0.2L and 2L with one machine, but have to change some fittings)

6. We adopt magnetic torque capping head. labeling machine is desiqned by our self with stainless steel frame. Shrink packing machine adopted original imported parts from Germany, Japan.
7. The machine is used in production of bottled non-carbonated drink, fruit juice, mineral water and pure water.



Technique parameter

Model: DCGF16-12-6 DCGF18-18-6 DCGF24-24-8 DCGF32-32-10 DCGF40-40-12
Production Capacity(500ml)(B/H) 2000-4000 4000-6000 6000-8000 8000-10000 10000-12000
Bottle standard (mm) (Bottle Diameter):φ50-.φ110mm (Height):150-340mm
Suitable Cap shape

Plastic srew cap



Filling precision

≤±5mm



Filling pressure(Mpa) <0.4
Water pressure of Washing bottle(Mpa) 0.18-0.25
Water consumption for water bottle(kg/h) 1300 2000 2500 3000 3000
Spraying Position 5 5 6 12 12
Dripping Bottle Position 2.5 3.0 3.5 7 7
Gas source Pressure(Mpa) 0.4
Gas consumption(m³/min) 0.3 0.4 0.4 0.5 0.5
Total power(kw) 5.03 5.03 6.57 8.07 8.07
Overall size:(mm) 2100*1500*2200 2450*1800*2200 2750*2180*2200 3600*2200*2600 3600*2200*2600
Weight: (kg) 2000 3000 4000 5000

5000
