24 Heads Carbonated Drink Filling Machine Fully Automatic 2750*2180*2200mm

24 Heads Carbonated Drink Filling Machine Fully Automatic 2750*2180*2200mm
24 Heads Carbonated Drink Filling Machine Fully Automatic 2750*2180*2200mm

Large Image :  24 Heads Carbonated Drink Filling Machine Fully Automatic 2750*2180*2200mm

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: DGCF24-24-8
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Standard Wooden Boxes
Delivery Time: 30-45 working days
Supply Ability: 10 Set/Sets per Month
Detailed Product Description
Power: 6.57kw Overall Dimension(L*W*H): 2750*2180*2200mm
Weight: 4000kg Voltage: 380V 50Hz
Automatic Grade: Fully-automatic Filling Pressure: Balanced Pressure Filling
Filling Material: Gas Contained Beverage Color: Silver Gray
High Light:

soda bottling machine


carbonated beverage bottling equipment



24 Heads Pepsi / Carbonated Drink / Beverage Bottle Filling Machine /




Carbonated drink Filling Machine details:


1. The suspending bottle-necks cramping design makes the whole production line more stable during the


working process and it also avoids malfunctions caused by the differences of thickness and height of the


bottle. This design also dramatically reduces the required number of changeable parts, makes it more


convenient to change the different size bottles.


2. The advanced technology from Germany and Ital yare introduced. Isobaric filling technology is used in


this machine. Filling quickly and the amount of the liquid can be controlled accurately. Also the beverage-


holding tank is fully closed and the CIP interface is installed.

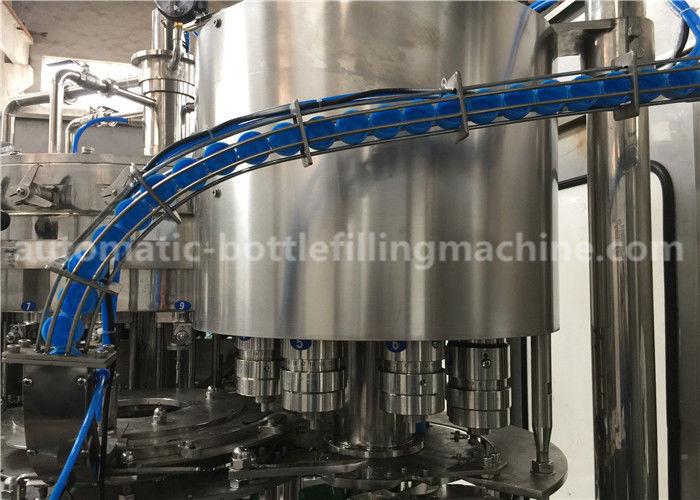

3 .Magnetic torque is used for screw capping, and the power of screw capping can be adjusted freely. It


can use constant power screw the plastic caps and will not damage the caps.


4. Horizontal swirl wind-power cap-managing device is used to avoid damaging the surface of cap. And


when there is shortage caps in the caps storage tank, cap swill be fed automatically.


5. Human-machine interface touch-screen is adopted in this machine. The liquid level in the tank can be


controlled automatically. The filling and capping will stop automatically when there is not bottle.


6. All parts that have direct contact with the beverages are made of high quality stainless steel. And the


main electrical components are from famous international companies.


7. We have embraced only those technologies that are the most practical and the most cost effective to


own and operate.


8. We only offer those technologies which provide the best versatility, flexibility and reliability for the cost.


9. The filling machines we offer are listed below some information that will help you understand how to


select the type and capacity filler you need for your operations.



Technical parameter


Model: DCGF18-18-6 DCGF24-24-8 DCGF32-32-12 DCGF40-40-12
Capacity :500ml 4000-6000 6000-8000 8000-12000 12000-15000
Bottle shape: roud or square
PET bottle: (mm) (Bottle Diameter):φ50-.φ110mm (Height):150-340mm
Cap: PE srew cap
Filling precision: ≤±5mm
Filling pressure:(Mpa) 0.15-0.35 0.15-0.35 0.15-0.35 0.15-0.35
Rinsing pressure:(Mpa) 0.2-0.25 0.2-0.25 0.2-0.25 0.2-0.25
Power(KW) 5.03 6.57 8.07 8.07
Overall size:(mm) 2450*1800*2200 2750*2180*2200 3600*2200*2600 3600*2200*2600
Weight: (kg) 3000 4000 5000 6000
