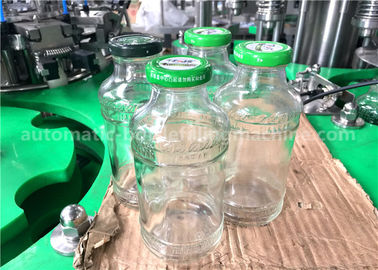

250ml Volume Glass Bottle Filling Line , 5.88KW Power Fillers For Glass Containers

250ml Volume Glass Bottle Filling Line , 5.88KW Power Fillers For Glass Containers
250ml Volume Glass Bottle Filling Line , 5.88KW Power Fillers For Glass Containers

Large Image :  250ml Volume Glass Bottle Filling Line , 5.88KW Power Fillers For Glass Containers

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: CGF8-8-3
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Plastic film wrapping,standard wooden boxes packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Detailed Product Description
Bottle Volume: Below 1L Filling Pressure: Normal Pressure
Automatic Grade: Fully-automatic Weight: 2000KG
Overall Dimension: 1800*1200*2150mm Power: 5.88kw
Processing Type: Water,juice,tea,milk,non-carbonated Beverage Capacity: 3000BPH(500ml)
High Light:

glass bottle filling and capping machine


water glass filling machine


250ml Glass Bottle Water Juice Filling Machine / Equipment / Plant








Brief introduction


Model:CGF8-8-3 ; Capacity:3000bottleds per hour,  your bottle volume can't larger than 1L


1. It is used to produce polyester bottled mineral water, purified water, alcohol, tea drink and other non-


gas beverage.


2. It can finish all the process such as bottle rinsing, filling and sealing fast and stable in one unit.


3. It can reduce the materials and Outsiders touch time, improve the sanitary conditions, production


capacity and economic efficiency.


4. Rinsing parts: Revolved type bottle washing machine,mainly used to wash bottles for mineral water


and other beverage.New bottles go into the machine through bottle dividing pole.Bottles are held by clips


and turned over onto washing heads.After washing,drain water,bottles go into filling parts by star


wheel.There is a water tray on the washing machine for water recycle.


5. Filling parts:Filling machine adopts German technology,produced by ourselves,obey to normal


pressure filling principle.Float ball control the liquid level,making filling steady.It adopts double guide pole




6. Capping parts:Capping machine drives revolved plate by gear.Caps go out of the cap storage by


centrifugal effect.At the cap output,there is cap divider.The sensor inspects the quantity,the machine will


stop when no caps.


7. Gearbox type capping unit gives a close structure, keep oil inside also using Egers material for longlife.


You can also adjust the capping rounds according to different caps by adjusting gears below.


8. Host adopt advanced PLC automatic control technology, the key electrical components from famous


company such as Japan's Mitsubishi, France Schneider, OMRON,ABB.



Technique parameter


Model CGF8-8-3
Rinsing Head 8
Filling Head 8
Capping Head 3
Bottle Volume 350ml~2000ml±10ml
Bottle Diameter φ50-92mm
Bottle Height 150-310 mm
Filling Tolerance ±2%
Cap Size 28mm and 30mm PE Standard Caps
Air Pressure 0.6MPa
Air Consumption 500 L/min
Gas Consumption 0.4 m3/min
Motor Power 9.18kW
Voltage 380V



We can also provide you with below production lines


1. bottling minereal/pure water production line (500ml, 1000ml,2000ml);


2. barrel mineral/ pure water production line (3L,5L,10L,19L,)


3. bottling carbonated beverage production line (like coca cola);


4. bottling juice production line;


5. canning beverage production line;


6. glass bottle beverage production line;


7. carbonated beverage and juice production auxiliary plants
