380V 50HZ Tin Can Filling Machine , Commercial Canning Equipment 1200*500*1200mm

Certification
China Zhangjiagang Jinyate Machinery Co., Ltd certification
China Zhangjiagang Jinyate Machinery Co., Ltd certification
Customer Reviews
Your machine quality is very good and technical team very professional, hope our products sell well!

—— Shiferaw Habte

I have worked with them for five years, their juice and carbonated machine help me spread my busniess acorss Africa, this year we place an 24000BPH carbonated line, looking forward to the machine installation in our factory early.

—— Umesh

I'm Online Chat Now

380V 50HZ Tin Can Filling Machine , Commercial Canning Equipment 1200*500*1200mm

380V 50HZ Tin Can Filling Machine , Commercial Canning Equipment 1200*500*1200mm
380V 50HZ Tin Can Filling Machine , Commercial Canning Equipment 1200*500*1200mm 380V 50HZ Tin Can Filling Machine , Commercial Canning Equipment 1200*500*1200mm 380V 50HZ Tin Can Filling Machine , Commercial Canning Equipment 1200*500*1200mm 380V 50HZ Tin Can Filling Machine , Commercial Canning Equipment 1200*500*1200mm

Large Image :  380V 50HZ Tin Can Filling Machine , Commercial Canning Equipment 1200*500*1200mm

Product Details:
Place of Origin: China(mainland)
Brand Name: JINYATE
Certification: CE SGS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: standard wooden cases
Delivery Time: 35 working days
Supply Ability: 90 sets per year
Detailed Product Description
Product Name: Carbonated Beverage Canning Machine Funtion: Can Rising, Filling, Sealing
Suitable Can: Aluminum Can, Pop Can, Tin Can Filling Material: Beer, Carbonated Soft Drink, Other Gas Liquid
Can Size: 250ml, 330ml Voltage: 380V, 50HZ Or Customized
High Light:

beverage canning machine

,

small scale canning equipment


Carbonated Soft Drink Canning Machine, Beer Canning Machine

For Aluminium Cans



---Application



1. The machine is mainly used to washer the cans, fill the gas liquid like beer, soft drink, soda



water.



sparkling water and so on to tin cans, then seal the cans for market selling.



2. This can filling line is suitable same can diameter but different can height.With different can



diameter, the filling line should be set with extra can change parts to share one filling line.


---Descriptions

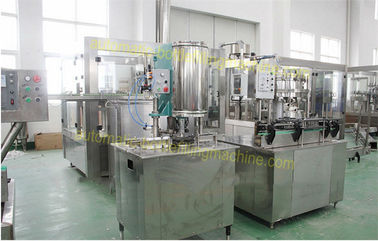

1. The canning machine consists of automatic can washing machine, isobaric filling machine,

automatic capping machine and conveying system.

2. The whole line is split.It apply to tin can filling.

3. The machine is made of high quality SUS304 stainless steel.


4. It is ideal selection for beverage factory due to its reasonable configuration, security of



operation, dependability of running and its so convenient maintenance.





---Product Pictures&Technical parameter

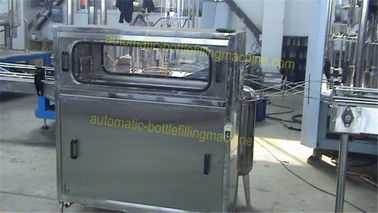

rising



  • Production capacity: 2000 cans per hour
  •
  • Bottle/can type:ф40-80
  •
  • Power:0.55kw
  •
  • dimension:1200*500*1200mm
  •
  • Weight:100kg
  •
  • Voltage:380V/50HZ(can be adjustable)



380V 50HZ Tin Can Filling Machine , Commercial Canning Equipment 1200*500*1200mm 0

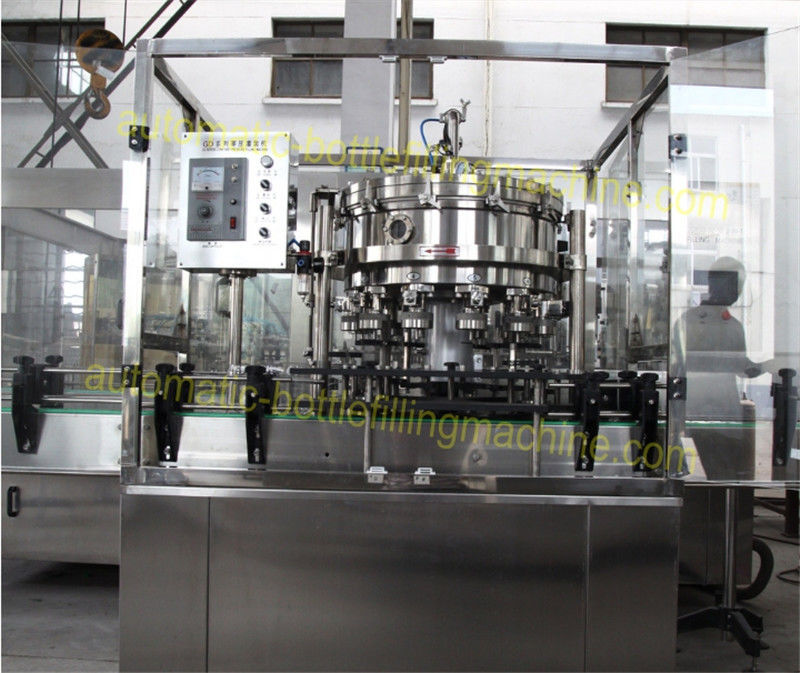

filling





Filling heads 12
Suitable of bottle PET/glass bottle, Aluminum can
Productivity(500ML) 1000-2500B/H
Filling pressure 3MPA
Voltage 380V 50Hz
Power of motor 0.75KW(Regulated speed motor)
Overall dimension 1100×1050×1800MM
Weight 500KG



380V 50HZ Tin Can Filling Machine , Commercial Canning Equipment 1200*500*1200mm 1

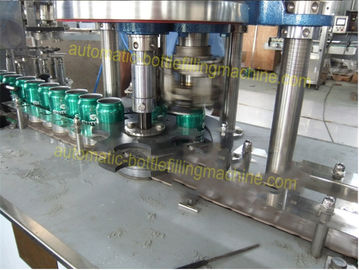

sealing



  • Model: FBX-1
  •
  • Production capacity: 2000 cans per hour
  •
  • can type:ф40-80mm
  •
  • can Height:50-340
  •
  • Power:0.75kw
  •
  • dimension:900*700*1800mm
  •
  • Weight:350kg
  •
  • Voltage:380V/50HZ(can be adjustable)



380V 50HZ Tin Can Filling Machine , Commercial Canning Equipment 1200*500*1200mm 2



---we also have other products:



1. 200-2000ml water bottling machine;



2. 3-10L water bottling mahchine;



3. 3-6 gallon water bottling machine;



4. carbonated beverage production line;



5. juiced beverage production line;



6. glass bottle beverage filling machine;



7. water treatment sysem plants;

... ...



welcome you have a furthur learn... ...
