| Automatic Grade: | Fully Automatic | Material Of Machine: | Stainless Steel 304 |
|---|---|---|---|
| Bottle Material: | HDPE Bottle | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Warranty: | One Year For Free | Bottle Volume: | 170ml-2L |
| Weight: | 1500kg | Overall Dimension(L*W*H): | 1600*1500*2200mm |
| High Light: | automatic liquid filling machine,rinsing filling capping machine |
||
Juice / Honey / Milk Hot HDPE Bottle Filling Machine With Aluminum
Foil Capping
It desiged for our Shanghai client's specific requirements
Washing, filling and aluminum foil sealing 3 in 1 monobloc is used for hot filling
liquid,juice,soymilk, coconut water,Lactic acid bacteria drink,water into PET,plastic,HDPE bottle.
Primary features:
1. Compact conformation, good shape, cozy operation, excellent automaticity and poor labor intensity.
Only exchanging “star wheel”, ”feeding screw” and “arc guide plate” while exchanging model of bottle to
be need.
2. The all parts directly contacted with media are all adopted with food stage stainless steel without dead
angle, so they can be cleaned easily.

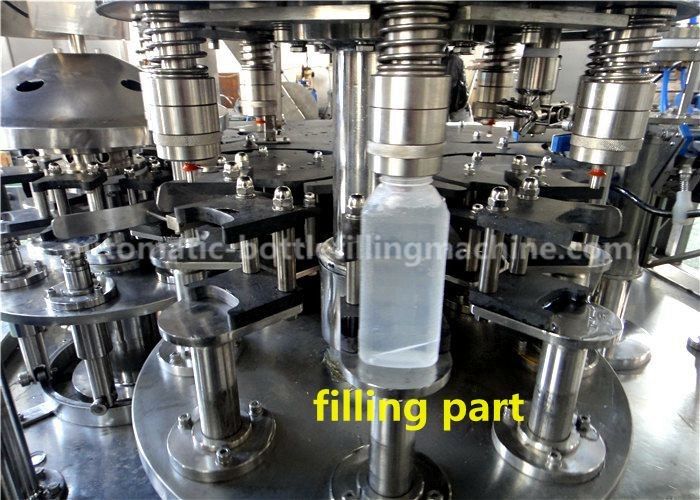

3. Adopting advanced valve to control the inlet flow rate of liquids. It can keep the slight turbulence of
liquids level in the solution barrel and ensure the accuracy in filling.
4. Closing feeding valve automatically while no bottle on machine avoiding the loss of aqueous feet. Filling
automatically with a high speed and the control of liquids level is accurate.
5. High filling speed and mass flow rate, high precision of filling valve and control of liquids level is
accurate and without loss.
6. The “capping head” is adopted magnetic-constant-torque device to ensure the high capping quality
and without damages.
7. Adopting efficient cap settling system which carried perfect cap feeding and protection device.
8. It is adopted spiral descent fashion for the support plate for bottom of bottle at the outlet thumb wheel.
And to adjust the input height is not necessary for exchanging model of bottle.
9. Carried the perfect protection system to overload; it can be used to protect facilities and operators
efficiently.
10. Because of applying touch screen for operation, it is possible to realize man-machine conversation
whereas the status of device running is clear at a glance.
11. The primary electric components such as touch screenPLCtransducer etc. are all adopted with world
famous products.
Technical parameter
| Model | 8-8-3 |
| Production capacity(500ml)(b/h) | 2000-4000 |
| Filling precision | ≤±5MM(Liquid Level) |
| Polyester bottle standard(mm) | Bottle diameter40-80 |
| Height(mm) | Height:130-280 |
| Suitable cap shape | Plastic Screw Cap |
| Water pressure of Washing bottle(MPa) |
0.18 |
| Water consumption for Water bottle (kg/h) | 800 |
| Spraying position | 5 |
| Dripping bottle position | 3 |
| Gas source pressure(Mpa) |
normal pressure |
| Gas consumption(m3/mm) | 0.3 |
| Total power(kw) | 3 |
| Total weight(kg) | 1500 |
| Dimension(L*W*H) | 1600*1500*2200mm |
This machine also can fill these drinks in below picture
If you want to add a plastic cap on the top of aluminum foil,we can
design for you too!!!!!!
