| Product Name: | 20 Ltr Water Filling Machine | Model: | QGF-450 |
|---|---|---|---|
| Capacity: | 450 Barrels Per Hour | Bottle Size: | 19 Liter, 20 Liter 3-6 Gallon |
| Filling Materail: | Mineral Water, Purified Water | Function: | Rising Filling Capping |
| Voltage: | 380v 50hz 3phase Or Customized | Material: | SUS304 |
| Warranty: | 1 Year | ||
| High Light: | 5 gallon water bottle filling machine,20 ltr water jar filling machine |
||
20l Water Bottle Manufacturing Machines, 5 Gallon Water Filling
Machine Price
product description
this machine integerates barrel rising filling and capping in one unit, it has 3 filling '
heads, can fill water 450 barrels per hour.
Technical parameter
| Product Name | 5 Gallon Bucket Water Filling Machine |
| Item Type | Water filling machine |
| Place of Origin | Jiangsu, China (Mainland) |
| Material | SUS 304 Food Grade |
| Voltage | 380V 50 Hz 3phase or customized |
| Power | Customized |
| Dimension | Customized |
| Weight | According to different model |
| Capacity | 450 barrels per hour |
| Control | PLC control |
| Filling heads | 3 pcs |
| Suitable barrel | 3 -5 gallon/10-25L |
| Processing type | Washing+filling+capping |
| Installation | Available |
| After-sales Service Provided | Engineers available to service machinery overseas |
| Certification | CE SGS ISO |
| Warranty | 1 year |
|
|

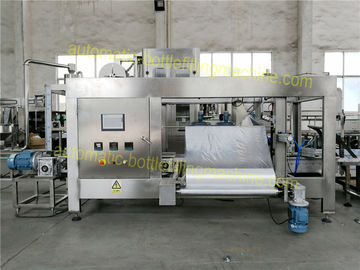

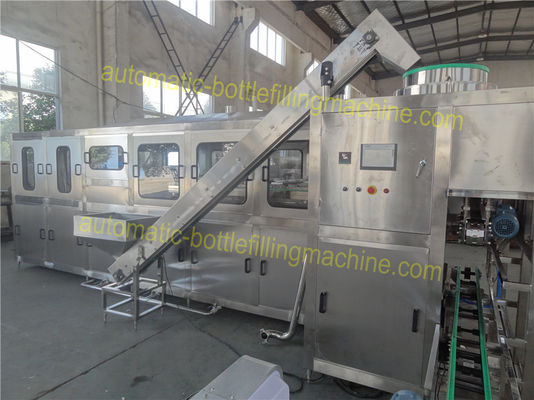

Product pictures
rising
The agency with the complete machine frame as the basic support, drive motor and the drive bearing
fixed to the support frame. Through the drive motor drive the axis, the passive axis,and two pairs of nylon
and stainless steel chain sprocket of the axis.And then through the stainless steel chain drives the
washing cup (ie bottles of care) which had fixed in the stainless steel chain, so as to achieve the purposes
that transfer bottles into Washing station for decontamination.
filling
Push the machine is connection by the cylinder and the stainless steel push push bottle bottle
rack, the holder mounted on the rack.
Filling system consists of stainless steel filling head, filling and filling system solenoid valve
position adjustment board composition.
capping
Caps slide in the the cover of the area through through the cover slide track management to
waiting for hanging, when there is a filled water bottle through the cover of the area, The caps set
in the mouth of the bottle by the anti opposite direction of the force of ther bottle and cover of the
device running, At the same time the bottle go into the gland area. The gland is consist of the
gland plate, gland architecture into a cylinder and gland adjustments. When the filling gland starts
to work the gland starts capping(the gland device can adjust up and down depend on the level of
water bottles)

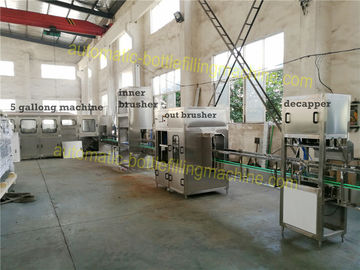

the complete line
we can supply all these machines, pls contact with us to learn more...
