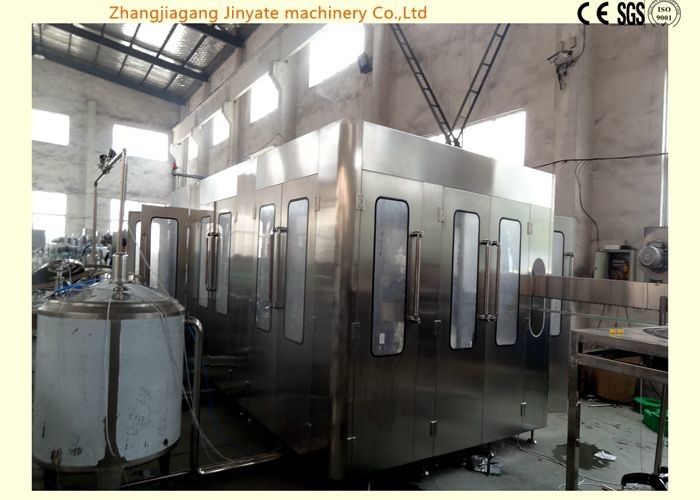

Large Output Juice Bottle Filling Machine Plastic / Pet Bottling With Sterilizing Part

Large Output Juice Bottle Filling Machine Plastic / Pet Bottling With Sterilizing Part
Large Output Juice Bottle Filling Machine Plastic / Pet Bottling With Sterilizing Part

Large Image :  Large Output Juice Bottle Filling Machine Plastic / Pet Bottling With Sterilizing Part

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: RCGF40-40-40-12
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Plastic film wrapping,standard wooden boxes packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Detailed Product Description
Type: Filling Machine Packaging Type: Bottle
Automatic Grade: Fully-automatic Overall Dimension: 6250*3050*2400mm
Power: 9.5kw Filling Material: Juice,tea,non-gas Water,milk
Material: SUS304/316 Function: Bottle Washing Filling Capping
High Light:

fruit juice production line

,

small scale juice bottling equipment



Plastic / Pet Bottle Aseptic Juice Filling Machine / Equipment With





Sterilizing





Specifications:



1. PLC control+touch screen



2. CE,ISO,SGS



3. High quality with low price,large output



4. Suitable for plastic / pet bottle filling machine



5. Aseptic juice filling machine with sterilizing part





Brief introduction:



1. This filling equipment adopts bottle neck holding transmission technology to realize fully automatic



bottle rinsing, pulp filling and cap screwing.



2. It employs single cavity plunger type of fixing filling volume technique and is equipped with perfect



temperature control system, reverse-flow system,automatic cleaning system



and control program.



3. Each machine element that contacts with the liquid is made of high quality stainless



steel and food-grade rubber.



4. Sanitary filling head system is of umbrella structure, high filling speed.



5. Perfect filling temperature control system.



6. Reflux tank system has the function of supplying the material automatically.



   To realize stable running, convenient for maintenance and long life, all the electric and pneumatic



components are from world famous manufacturer. Example, PLC from OMRON, transducer from



MITSUBISHI, pneumatic components from FESTO, switch from TURCK, motors from SEW or ABB, touch



screen from DIGITAL, etc



Technique parameters:

Model RCGFB24-24-24-8 RCGFB32-32-32-10 RCGFB40-40-40-12
Bottle washing head 24 32 40
Pulp filling head 24 32 40
Juice filling head 24 32 40
Cap screwing head 8 10 12
Rated production capacity 8000BPH 12000BPH 15000BPH
Installed capacity 6.5KW 8.7KW 9.5KW
Overall size 4070*2350*2400mm 5100*2600*2400mm 6250*3050*2400m





Sterilizing water rinsing tank



Large Output Juice Bottle Filling Machine Plastic / Pet Bottling With Sterilizing Part 0



Why choice us?



Design Ability All the machines designed by CAD
Manufacturing Ability Mechanical parts: high quality stainless steel, processed by CNC
Reliability Electrical parts from world famous suppliers
Professional

Focus on beverage and cosmetics packing machines



Exported to over 20 countries with good reputation



7 years Alibaba Golden supplier without complaint

Good Service

Service include complete production line design, manufacturing, on-



site installation & aftersales maintenance.

Profession on Export Authorized export licence.
