| Weight: | 3000kg | Dimension: | 2450*1800*2200mm |
|---|---|---|---|
| Voltage: | 380V 50Hz | Capacity: | 6000BPH |
| Control System: | PLC Control+touch Screen | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Driven Type: | Electric | Application: | Beverage, Chemical, Food |
| High Light: | glass bottling equipment,glass bottle filling and capping machine |
||

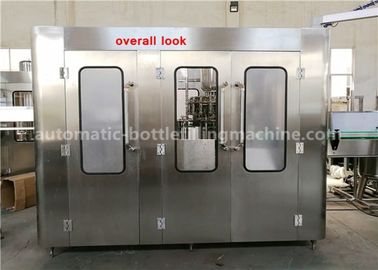

Brief introduction:
This filling equipment adopts bottle neck holding transmission technology to realize fully automaic
rinsing,filling and capping.It is equipped with perfect temperature control system,reverse-flow
system,automatic cleaning system and control program.Each machine element that contacts with the liquid
is made of high quality stainlesssteel and food-grade rubber.
Character:
Rinsing part
1) The rotary wheel is a fully AISI304 stainless steel welded structure.
2) The machine applies unique overturning bottle clamp, which is an innovation of our company. This
bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber
gripper block of a traditional bottle clamp. Made of AISI304 stainless steel, this bottle clamp is hygienic
and durable.
3) The high efficiency atomizing spray nozzle installed on bottle clamp incorporating technology from
Spaying Systems Co. Ltd., is capable of cleaning any part of bottle inner wall, and also saves rinsing
water

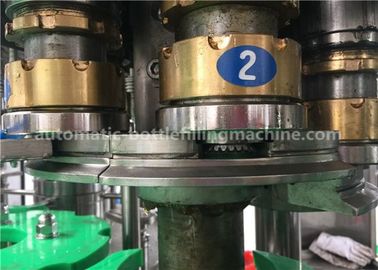

Filling part
1) The filler is designed and manufactured with application of Italy technology, providing
hardware guarantee for securing product quality and reducing loss.
2) Rotary wheel are fully made of stainless steel AISI304.
3) Filling valves are designed and manufactured with German technology, made of AISI316L, featuring
high filling accuracy and high filling speed.
4) Bottles are raised and lowered by cam controlled lifting cylinder. Valve opening mechanism is actuated
by air cylinder. All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free
bearing.

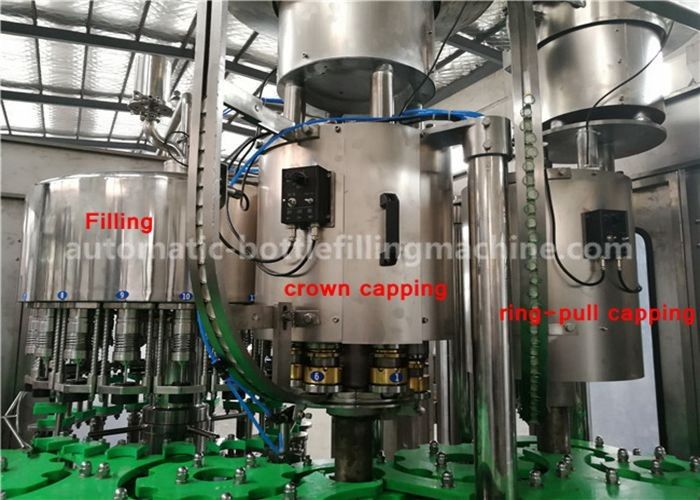

Capping part
1) The capper is most precise part in 3 in 1 filling machine, because the quality of machine ism important
to running credibility and product quality.
2) The cover track has the device to prevent the reversal cover from passing and pick out the reversal
cover. Meanwhile the photoelectric switch can stop the machine automatically when there is no cover on
the track, by which it can avoid bottle without cover effectively.
3) It also has the bottle checkup switch. Together with cylinder on the joint of the cover track and cover lift,
they can control the cover flow and stop it in case no bottle to reduce the quantity of cover.
Technical parameter
| Model | RCGF18-18-6-6 |
| Productivity | 6000BPH |
| Rinsing Head | 18 |
| Filling Head | 18 |
| Crown Capping Head | 6 |
| Ring-pull capping head | 6 |
| Bottle Volume | 350ml~2000ml±10ml |
| Bottle Diameter | φ50-92mm |
| Bottle Height | 150-310 mm |
| Filling Tolerance | ±2% |
| Cap Size | 28mm and 30mm PE Standard Caps |
| Air Pressure | 0.6MPa |
| Air Consumption | 500 L/min |
| Filling Water Consumption | 3 m3/h |
| Rinsing Water Consumption | 1 m3/h |
| Motor Power | 6.68kW |
| Voltage | 380V |
| Dimension | (L×W×H) 2450*1800*2200mm |
| Weight | 3000kg |
| Filling Principle | Gravity Filling |
