Fully - Automatic 300BPH Bottle Washing Filling And Capping Machine For 5 Gallon

China Fully - Automatic 300BPH Bottle Washing Filling And Capping Machine For 5 Gallon supplier
Fully - Automatic 300BPH Bottle Washing Filling And Capping Machine For 5 Gallon supplier Fully - Automatic 300BPH Bottle Washing Filling And Capping Machine For 5 Gallon supplier Fully - Automatic 300BPH Bottle Washing Filling And Capping Machine For 5 Gallon supplier Fully - Automatic 300BPH Bottle Washing Filling And Capping Machine For 5 Gallon supplier Fully - Automatic 300BPH Bottle Washing Filling And Capping Machine For 5 Gallon supplier

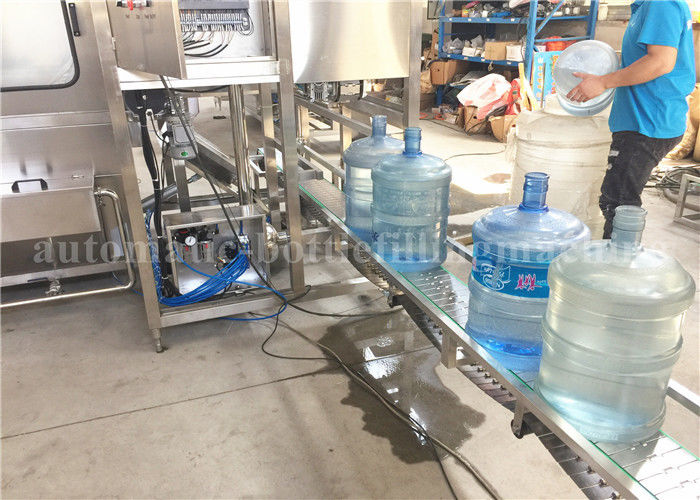

Large Image :  Fully - Automatic 300BPH Bottle Washing Filling And Capping Machine For 5 Gallon

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: QGF300

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Standard wooden boxes
Delivery Time: 30-45 working days
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Automatic Grade: Fully-automatic Capacity: 300BPH
Bottle Volume: 3-5gallon Power: 3.8kw
Weight: 1200kg Machine Material: Stainless Steel 304
Dimension(L*W*H): 3800*1300*1600mm Processing Type: Water



300BPH 5 Gallon Bottle Washing Filling And Capping Machine For 5 Gallon Water Bottling Line Machinery





Product description

The filling line specially produces 5 gallon barreled drinking water.It has the following types:80 type,150 type,300 type,450 type,600 type,900 type.It integrates bottle washer, filler and sealer into one unit. In order to achieve the purpose of multiple injections of washing and sterilizing by means of liquid washing and bleaching are used in bottle washer,washing solution can be used circularly.The sealer can seal barrel caps are aseptic and healthy,this line can also automatically carry out washing,sterilizing,filling, capping, counting and products discharging.It is a new kind of barreled water auto-producing line,which integrates mechanism, electricity and pneumatic technologies together.



You can click this below picture to see the video of this machine:

Fully - Automatic 300BPH Bottle Washing Filling And Capping Machine For 5 Gallon

https://youtu.be/fFrnRsd0lNw





Technical parameter

Model QGF-150 QGF-300 QGF-450 QGF-600 QGF-900
Filling heads 1 2 3 4 6
Volume 3-5gallon
Barrel size 270*490
Capacity 150 300 450 600 900
Gas pressure 0.4 -0.6
Gas consumption 0.37 0.6 0.8 1 1.2
Motor power 1.75 3.8 3.8 7.5 9
Motor voltage 380V/50HZ
Weight 700 1200 1600 2000 3500
Dimension 2800*1100*1600 3800*1300*1600 4200*1600*1600 4800*1800*1600

4200*2300*1600

2800*1000*1600



Characteristics:

1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.

2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..

3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.

5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.

6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.



Fully - Automatic 300BPH Bottle Washing Filling And Capping Machine For 5 Gallon



Fully - Automatic 300BPH Bottle Washing Filling And Capping Machine For 5 Gallon

Advantages

1.The 5 Gallon Filling Machineis composed of barrel washer, barrel filling machine and barrel sealer into one unit.
2. Especially for filling drinking water of 3 and 5 gallons. It is an idea filling line to produce mineral water, distilled water and purified water.
3. The whole line is made of superior stainless steel, anticorrosive and easy to clean.
4. Only two operators are needed for a line, which is wholly automatic barreled
5. Full-auto or semi-auto barrel de-capper, full-auto leakage inspection, full-auto barrel outside brusher, full-auto barrel loading machine, steam shrinking film machine and coding system can be choose depends on what customer's need.
