PLC 600BPH 5 Gallon Water Filling Machine With Washer Sealer

PLC 600BPH 5 Gallon Water Filling Machine With Washer Sealer
PLC 600BPH 5 Gallon Water Filling Machine With Washer Sealer

Large Image :  PLC 600BPH 5 Gallon Water Filling Machine With Washer Sealer

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: QGF-600
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Standard wooden boxes
Delivery Time: 30-45 working days
Supply Ability: 15 Set/Sets per Month
Detailed Product Description
Dimension(L*W*H): 4800*1800*1600mm Driven Type: Electric
Capacity: 600BPH Weight: 2000kg
Control: PLC+ Touch Screen Packaging Type: 5 Gallon / 20liter Jar
High Light:

600BPH 5 Gallon Water Filling Machine

,

PLC 5 Gallon Water Filling Machine

,

600BPH 5 Gallon Water bottlingMachine

600BPH 5 Gallon Bottle Washing Machine , 20 Ltr Water Jar Filling Machine 2000kg


Introduction

QGF series 5 gallon filling machine has the following types:80 type,150type,300 type,450 type,600 type,900 type.It integrates bottle washer, filler and sealer into one unit. In order to achieve the purpose of multiple injections of washing and sterilizing by means of liquid washing and bleaching are used in bottle washer,washing solution can be used circularly.The sealer can seal barrel caps are aseptic and healthy,this line can also automatically carry out washing,sterilizing,filling,capping, counting and products discharging.It is a new kind of barreled water auto-producing line,which integrates mechanism, electricity and pneumatic technologies together.

Process:
Water treatment system → Bottle blowing machine → Automatic decapper → External and Inner brusher → Rotary type barrel washing filling capping machine → Cap elevator →Light checker→ Heat shrinker

Technical parameter

ModelQGF-150QGF-300QGF-450QGF-600
Filling heads1234
Volume18.918.918.918.9
Barrel size270*490270*490270*490270*490
Capacity150300450600
Gas pressure0.4 -0.60.4 -0.60.4 -0.60.4 -0.6
Gas consumption0.370.60.81
Motor power1.753.83.87.5
Motor voltage380V/50HZ380V/50HZ380V/50HZ380V/50HZ
Weight700120016002000
Dimension2800*1100*16003800*1300*16004200*1600*16004800*1800*1600

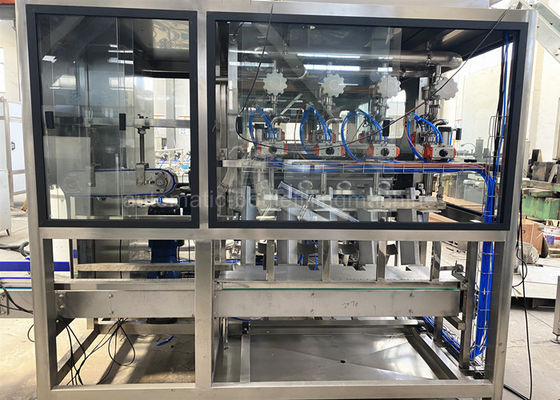

Automatic cap decapper
PLC 600BPH 5 Gallon Water Filling Machine With Washer Sealer 0

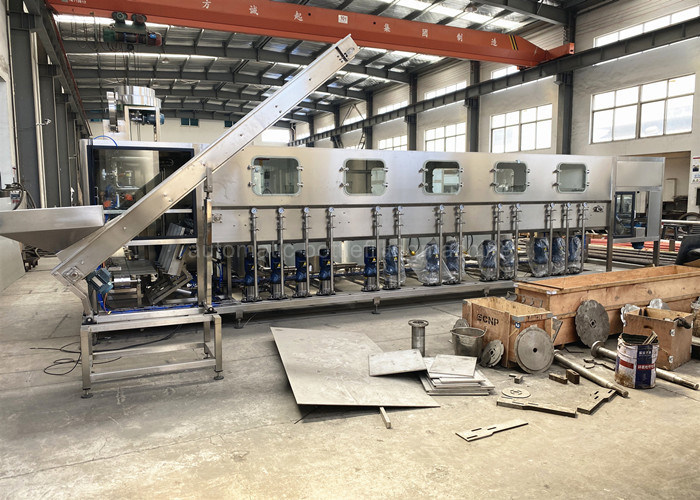

Automatic outside-inside washer
PLC 600BPH 5 Gallon Water Filling Machine With Washer Sealer 1



Gallon filling machine features:
1. The centralized lubrication system, more convenient and simple for maintenance.
2. Automatic cover unscrambler and cap load system, set of fault protection device.
3. The whole machine has compact structure, high and stable work efficiency, correct and sensitive motion, high degree of automation, which is a washing-filling-capping 3-in-1 equipment.
4. 4 times rinsing, to make sure the barrel inside is very clean.
5. Automatic filling, control the filling situation well.
