900BPH 5 Gallon Water Filling Machine , Rinser Filler Capper Machine

900BPH 5 Gallon Water Filling Machine , Rinser Filler Capper Machine
900BPH 5 Gallon Water Filling Machine , Rinser Filler Capper Machine 900BPH 5 Gallon Water Filling Machine , Rinser Filler Capper Machine 900BPH 5 Gallon Water Filling Machine , Rinser Filler Capper Machine 900BPH 5 Gallon Water Filling Machine , Rinser Filler Capper Machine

Large Image :  900BPH 5 Gallon Water Filling Machine , Rinser Filler Capper Machine

Product Details:
Place of Origin: CHINA
Brand Name: JINYATE
Certification: CE ISO
Model Number: QGF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: please inquire
Packaging Details: standard wooden case
Delivery Time: 40 working days
Supply Ability: 100 sets a year
Detailed Product Description
Product Name: 5 Gallon Filling Machine Function: Rinser Filler Capper
Filling Product: Water Capacity: 120,300,450,600,900 BPH
Filling Accuracy: 99% Bottle Size: 3-5 Gallon
High Light:

900BPH 5 Gallon Water Filling Machine

,

PLC 5 Gallon Water Filling Machine

,

5 Gallon rinser filler capper machine

New Design Professional 5 Gallon Water Filling Sealing Capping Machine

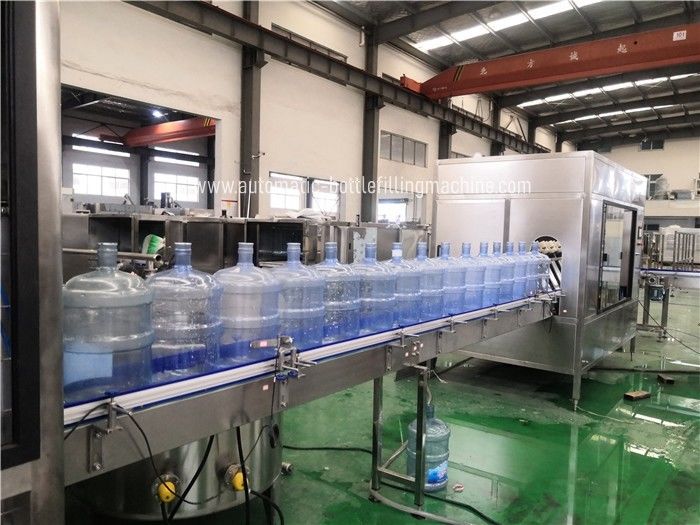

This machine is used to produce 5 gallon water.

This equipment is mainly composed of five gallons of automatic adjustment available outside the pull out cover machine, rotary brush barrels machines, automatic bucket machine, washing machine, normal pressure filling machine, cover, cover, cover, capping machine, intelligent steam heat shrinkable machine, on-line inspection, straight-line pail bagging machine, palletizing machine set, such as by conveying system connected into a continuous operation (flow) of the whole.

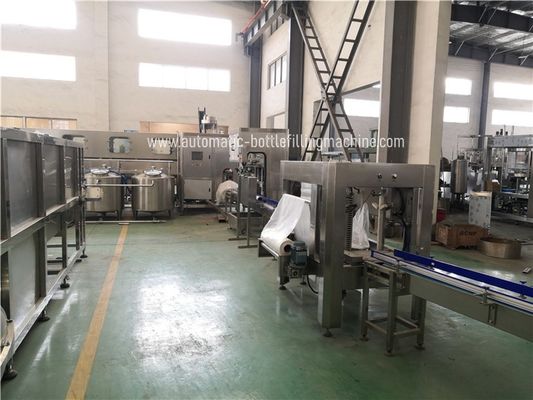

The complete line includes:

water treatment;

decapper;

outside brushing;

inside brushing;

rinsing filling capping machine QGF;

labeling;

shrinking;

bagging





rinsing part:

When the power is connected, the PLC power starts to work, control the contactor to pull, so that the disinfectant pump starts to work, then output the signal PLC, so that the washing conveying motor and the filling conveying chain motor work, then the bucket washing mechanism makes the barrel body step by step into each process to start washing, the washing time can be programmed by the PLC controller.After rinsing, the drum falls to the pail rack.

900BPH 5 Gallon Water Filling Machine , Rinser Filler Capper Machine 0





filling part:

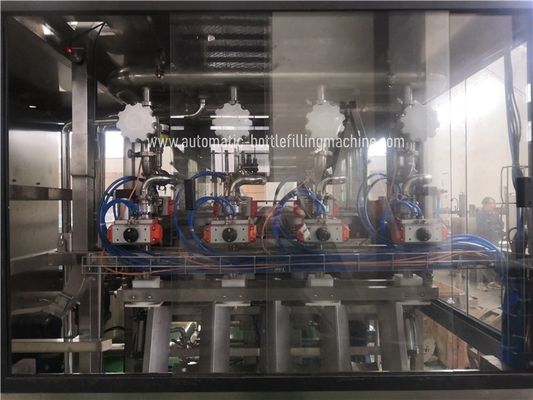

The filling head adopted by this equipment, when the bucket is sent to the filling position, it will automatically drop the
filling head under the control of PLC to fill the bucket.When filled, the filling valve returns and the bucket moves forward.After the cap manager is capped, he slips to the place where he hangs the cap and hangs the cap on the barrel.

900BPH 5 Gallon Water Filling Machine , Rinser Filler Capper Machine 1



capping part:

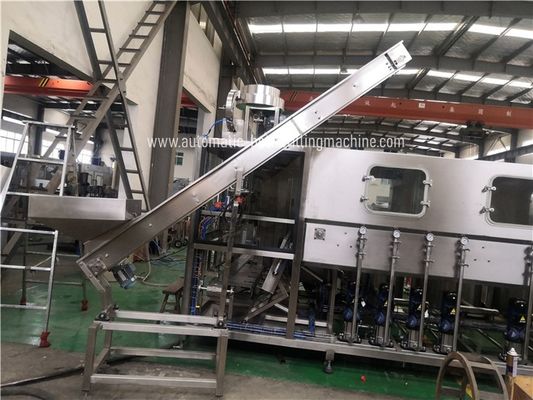

The gland is completed by the gland cylinder.When the bucket is close to the gland position, the detector detects and sends a signal, the gland cylinder moves instantaneously, and the gland is completed.With this form of capping, good effect, simple structure.

900BPH 5 Gallon Water Filling Machine , Rinser Filler Capper Machine 2





Packaging Type Bottles
Packaging Material plastic
Driven Type Electric
Voltage 380V
Dimension(L*W*H) 6100*2500*2200
Weight 2700KG
Machinery Capacity 600BPH
Filling Material Water



We can provide complete line plants, you are welcome to contact... ...
