Industrial Automatic Bottle Filling Machine 2 In 1 Unit For Vegetable / Soybean Oil Filling

China Industrial Automatic Bottle Filling Machine 2 In 1 Unit For Vegetable / Soybean Oil Filling supplier
Industrial Automatic Bottle Filling Machine 2 In 1 Unit For Vegetable / Soybean Oil Filling supplier Industrial Automatic Bottle Filling Machine 2 In 1 Unit For Vegetable / Soybean Oil Filling supplier Industrial Automatic Bottle Filling Machine 2 In 1 Unit For Vegetable / Soybean Oil Filling supplier Industrial Automatic Bottle Filling Machine 2 In 1 Unit For Vegetable / Soybean Oil Filling supplier Industrial Automatic Bottle Filling Machine 2 In 1 Unit For Vegetable / Soybean Oil Filling supplier

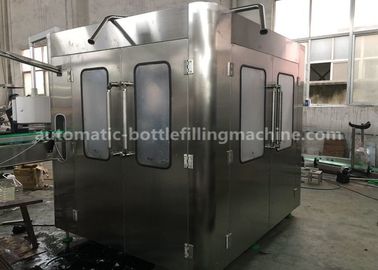

Large Image :  Industrial Automatic Bottle Filling Machine 2 In 1 Unit For Vegetable / Soybean Oil Filling

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: YGF18-6

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: PE film wrapping,Standard wooden boxes packaging
Delivery Time: 30-45 working days
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Capacity: 3000BPH Filling Type: Piston Volumetric Filling,rotary Type
Machine Structure: 2-in-1 Monoblock Function: Bottle Filling ,sealing
Filling Valve: Using Cam To Force Down Power: 2.2kw
Application: Beverage, Food Overall Dimensions (LxWxH): 1900x1800x2200mm



Industrial Bottle 2-In-1 Unit Vegetable / Cooking /Soybean Oil Filling





Machine







Specifations



1. oil filling and sealing machine



2. 2-in-1 monoblock,vegetable cooking soybean oil filling machine



3. 18 filling heads,6 sealing heads





Features



Automatic cooking oil filling machine is suitable for filling paste or oil product, such as ketchup, jam,



fruit and vegetable paste, cooking oil, honey, corn soup, peanut paste, sauce. It also can be used for



pulp, edible bird's nest, aloe, rice wine and so on.



The world famous brands of electrical and pneumatic components, low failure rate,long service life.



Automatic cooking oil filling machine works stably, fills precisely, and suits for cold and hot filling. The



piston and piston barrel after the treatment of top technology cooperate accurately, durable and



wearable. It is equipped with material stirring system, three point liquid level control, frequency



conversion adjustment, bottle in and out protection, automatic speed adjustment, filling with bottle and



no filling without bottles. It adopts good stainless steel material, which meet the requirement of food



sanitation. Vacuum pump can make sure there is no dripping oil on bottle body or machine surface,



keep the bottle and machine clean.





Technical parameter



Model YGF18-6
Capacity/1L BOTTLE 3000BPH
Filling head 18
Capping head 6
Filling time 5 second(approx)(100ml/min)
Filling temperature 18-20℃
Filling tank Semi closed type filling tank, using worm gear to adjust the height
Filling valve Using cam to force down
Speed control AC MOTOR+REDUCER+INVERTER
Gas consumption 100NL/min(5-6Kg/cm²)(take 100EA as the base)
Power 2.2Kw
Weight 2000 Kg

Overall dimensions(LxWxH)

1900x1800x2200mm

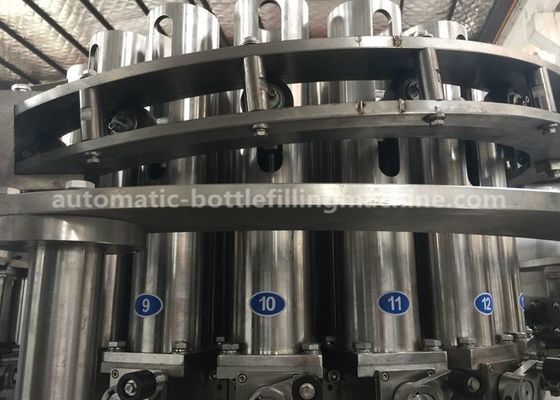

Inner look (filling and sealing)



Industrial Automatic Bottle Filling Machine 2 In 1 Unit For Vegetable / Soybean Oil Filling



High definition Deatails



Industrial Automatic Bottle Filling Machine 2 In 1 Unit For Vegetable / Soybean Oil Filling



6 heads Capping part



Industrial Automatic Bottle Filling Machine 2 In 1 Unit For Vegetable / Soybean Oil Filling



Note: the filling range and speed can be designed according to user needs to design



different filling head number.





Accessories list:

Accessories name
Brand name
PLC
Siemens German

 electrical elements

Schneider France
pneumatic element
AirTac Taiwan
amphenol connector
Weidmuller German
Transducer
Danfoss Denmark
Bearing
IGUS German
Photoelectricity
KEYENCE Japan it is waterproof
Piston
Taiwan, heat-resistant, oil proof
