Big Bottle Pure Water Filling Machine , Liquid Filling Machine With 9 Heads Washing Part

China Big Bottle Pure Water Filling Machine , Liquid Filling Machine With 9 Heads Washing Part supplier
Big Bottle Pure Water Filling Machine , Liquid Filling Machine With 9 Heads Washing Part supplier Big Bottle Pure Water Filling Machine , Liquid Filling Machine With 9 Heads Washing Part supplier Big Bottle Pure Water Filling Machine , Liquid Filling Machine With 9 Heads Washing Part supplier Big Bottle Pure Water Filling Machine , Liquid Filling Machine With 9 Heads Washing Part supplier Big Bottle Pure Water Filling Machine , Liquid Filling Machine With 9 Heads Washing Part supplier

Large Image :  Big Bottle Pure Water Filling Machine , Liquid Filling Machine With 9 Heads Washing Part

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: CGF9-9-4

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Standard wooden Boxes
Delivery Time: 30-45 working days
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Material Of Machine: Stainless Steel 304 Bottle Type: PET Plastic/Glass Bottle
After-sales Service Provided: Engineers Available To Service Machinery Overseas Warranty: One Year For Free
Function: Bottle Washing Filling Capping Color: Silver Gray
Weight: 4000kg Overall Dimension(L*W*H): 2650*2000*2200mm





CGF9-9-4 Big Bottle Pure Water Filling Machine / Mineral Water





Bottling Line







This water bottle filling machine is designed for filling big volume bottle 5L-7L.If you



want to see the video of how is it working,please inquiry to me.





Specification



1. pure water filling machine



2. water filling machine,mineral water filling machine



3. water bottling line



4. Zhangjiagang filling machine





Features:



This water filling machine is with bottle rinsing, filling and capping monoblock for drinking water (non-



carbonated) filling.PET bottles infeed by combination of infeed grippers, equipped with bottle jam



protection device, the machine applies unique overturning bottle clamp, which is an innovation of our



Zhangjiagang Jinyate machinery company .





9 heads washing part



PET bottles infeed by combination of infeed grippers, equipped with bottle jam protection device, the



machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle



clamp grips bottle at neck postion, avoiding bottle mouth thread comtamination caused by rubber gripper



block of a traditional bottle clamp. This part is made of SUS 304 stainless steel, the bottle clamp is



hygienic and durable.

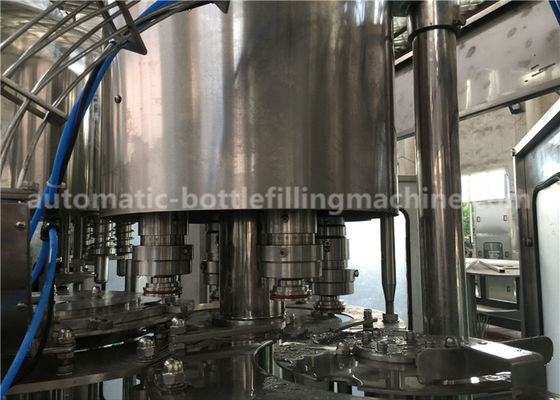

9 heads filling part



Rotary wheel fully made of stainless steel SUS 304



Gravity filling method



Filling valves aer reasonably structured with accurate filling.



Bottle go up and down in the function of cam through elevator to process filling with contact to bottle-



mouth.



Level of cylinder is controlled with float-ball



Filler is driven through gears inside the machine frame.



Link-wheels in rinser, filler and capper are transported in ringed support of bottle-neck.





4 heads capping part



Capper should have highest precision, influence very much with stability and realiable of the filling



monoboc. Our capper



Cap distributing chute is equipped with reverse cap stop and reverse cap pick-out mechanism.



Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside



the chute.



The capper is equipped with inlet bottle detection switch.



Centrifugal way of cap arranging is adopted to reduce damage of caps.



A cap inspection system is applied to control on-off of elevator.





Technical parameter



Model CGF9-9-4
Number of rinsing head 9
Number of filling head 9
Number of capping head 9
Capacity 500-1000BPH
Overall size 1800*1700*2000mm



Rinsing part



Big Bottle Pure Water Filling Machine , Liquid Filling Machine With 9 Heads Washing Part



Filling part



Big Bottle Pure Water Filling Machine , Liquid Filling Machine With 9 Heads Washing Part



Capping part



Big Bottle Pure Water Filling Machine , Liquid Filling Machine With 9 Heads Washing Part
