20 L Big Bottle Fully Automatic 5 Gallon Water Filling Machine Small Producting Plant

China 20 L Big Bottle Fully Automatic 5 Gallon Water Filling Machine Small Producting Plant supplier
20 L Big Bottle Fully Automatic 5 Gallon Water Filling Machine Small Producting Plant supplier 20 L Big Bottle Fully Automatic 5 Gallon Water Filling Machine Small Producting Plant supplier 20 L Big Bottle Fully Automatic 5 Gallon Water Filling Machine Small Producting Plant supplier 20 L Big Bottle Fully Automatic 5 Gallon Water Filling Machine Small Producting Plant supplier

Large Image :  20 L Big Bottle Fully Automatic 5 Gallon Water Filling Machine Small Producting Plant

Product Details:

Place of Origin: CHINA
Brand Name: JIAYUAN
Certification: CE ISO
Model Number: QGF-120

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: pls inquire
Packaging Details: standard wooden case
Delivery Time: 45 working days
Supply Ability: 100 sets per year
Contact Now
Detailed Product Description
Name: 5 Gallon Filling Machine Filling Material: Mineral Water, Pure Water
Capacity: 120-150 Bottles Per Hour Function: Wash, Fill, Cap
Voltage: 380V 50HZ 3Phases Power: 3kw



Brief introducction

(1) This filling line specially produces 3&5 gallons barreled drinking water.

(2)This series barreled filling production line integrates bottle washer, filler and sealer into one unit.

(3) In order to achieve the purpose of washing and sterilizing, bottle washer adopts multiple liquid injections washing and disinfectant spray, and washing solution can be used circularly. The sealer can seal bottle caps automatically.

(4) This filling line equips with water spraying device to sterilize caps of bottles in order to ensure those caps are aseptic and healthy.

(5) This line also can automatically carry out bottle washing, sterilizing, filling, capping, counting and products discharging.

(6) It has features of complete functional, novel design, and high degree of automation. It is a new kind of barreled water auto-producing line, which integrates mechanism, electricity and pneumatics technologies together.



Technical parameter

Model QGF-120 QGF-300 QGF-450 QGF-600 QGF-900 QGF-1200 QGF-2000
Filling heads 1 2 3 4 8 12 16
Volume(L) 18.9 18.9 18.9 18.9 18.9 18.9 18.9
Barrel size(mm) φ270×490 φ270×490 φ270×490 φ270×490 φ270×490 φ270×490 φ270×490
Capacity(B/n) 120-150 200-240 300-400 600 900 1200 2000
Gas pressure(mpa) 0.4-0.6 0.4-0.6 0.6 0.6 0.6 0.6 0.6
Gas consumption (m3/min) 0.37 0.6 0.6 1.2 2.2 3 4.5
Motor power(Kw) 1.75 3.22 4.8 8.5 8.5 8.5 8.5
Rated voltage(V) 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz
Outline dimension(mm) 3790×650 ×1550 3550×800 ×1800 2800×1100 ×1800 3550×1200 ×1800 3800×1100 ×1800 3650×1500 ×1800 3800×1100 ×1800 2200×1860 ×2700 2560×2350 ×2750 3100×2800 ×2750
Weight(kg) 800 2800 4000 5500 7500 9500 11800

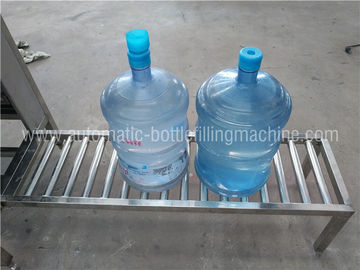

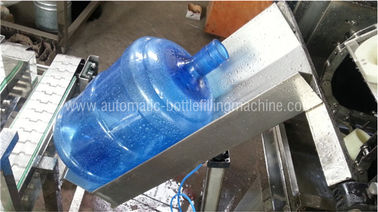

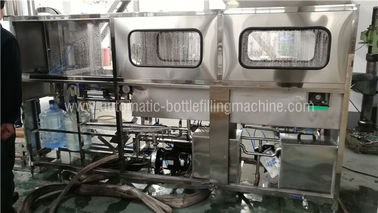

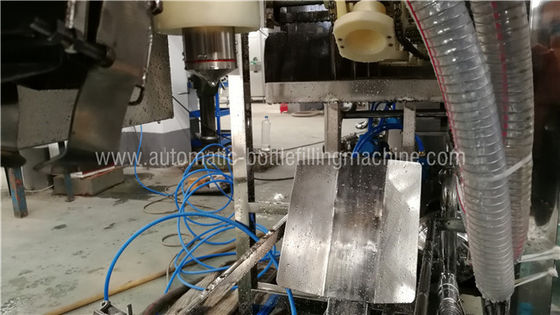

Machine referenced pictures

Pls click the picture to watch the referenced video

20 L Big Bottle Fully Automatic 5 Gallon Water Filling Machine Small Producting Plant



20 L Big Bottle Fully Automatic 5 Gallon Water Filling Machine Small Producting Plant



FAQ



Q: Are you a factory or a trading company?

A: We are a manufacturer,our factory is at Leyu Town,Zhangjiagang city which is near shanghai and wuxi.

Q: Does your company and products Through the authentication?

A: Yes,we have through famouse certification,ISO,CE,SGS,BV

Q: How long I can get the machine?

A: Accoring to the machine,usually less than 40 days

Q: How can i give you the money?

A: Up to you,T/T,L/C,western union and others will be ok

Q: How can i use the machine

A: The engineer will install the machine for you,and train your employee,also We will give you the user's guide



We can supply complete line plants, capacity from 120 to 2000BPH, looking forward to your contact... ...
