3 In 1 Bottling 5 Gallon Water Filling Machine 20 Liter Jar Washing Filling Capping Machine

China 3 In 1 Bottling 5 Gallon Water Filling Machine 20 Liter Jar Washing Filling Capping Machine supplier
3 In 1 Bottling 5 Gallon Water Filling Machine 20 Liter Jar Washing Filling Capping Machine supplier 3 In 1 Bottling 5 Gallon Water Filling Machine 20 Liter Jar Washing Filling Capping Machine supplier 3 In 1 Bottling 5 Gallon Water Filling Machine 20 Liter Jar Washing Filling Capping Machine supplier 3 In 1 Bottling 5 Gallon Water Filling Machine 20 Liter Jar Washing Filling Capping Machine supplier 3 In 1 Bottling 5 Gallon Water Filling Machine 20 Liter Jar Washing Filling Capping Machine supplier

Large Image :  3 In 1 Bottling 5 Gallon Water Filling Machine 20 Liter Jar Washing Filling Capping Machine

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: QGF300

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Standard wooden boxes
Delivery Time: 30-45 working days
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Automatic Grade: Fully-automatic Capacity: 300BPH
Bottle Volume: 3-5gallon Power: 3.8kw
Weight: 1200kg Warranty: One Year For Free
Machine Material: Stainless Steel 304 Dimension(L*W*H): 3800*1300*1600mm

3 In 1 Bottling 5 Gallon Water Filling Machine 20 Liter Jar Washing Filling Capping Machine







This 5 gallon or 3 gallon filler (QGF300) information:
The washing head: 2*12
The filling head: 2
The capping head: 1


The 5 gallon or 3 gallon filler includes the washer, filler and capper for the production of 5&3 gallon

barreled drinking water. The washing process include alkali liquid inside and outside washing by dirty remover. Inside and outside washing by disinfectant fluid, inside and outside washing by pure water, the alkali and disinfectant fluid can be used cyclically. The whole washing, filling and sealing process is controlled by PC, and has the safe device for interlock,signal and self-detection.


The whole unit is made of the stainless steel, meets the demands of food hygiene, with the feature of reasonable structure, easy in operation, exact action, its the ideal equipment for the barreled water.

3 In 1 Bottling 5 Gallon Water Filling Machine 20 Liter Jar Washing Filling Capping Machine

Mostly electric components are adopt Siemens, OMRON etc famous company. Electric component adopt import Air TAC famous brand product. The machine is advanced in construction, occupying small area, steady in performance, high in produce efficiency, high in automatization degree. Easy in operation, which integrates machinery, electricity and pneumatics technologies together into one unit full automatic

barreling machine.
It is especially used for 5 Gallon barrel pure water washing, filling, capping production line.

The parts with touch water adopt high-quality stainless steel. The cylinder gear runs smoothly and the fixed position is correct. It adopts inserting-type washing technology to remove washing blind angle.



Technical parameter

Model QGF-150 QGF-300 QGF-450 QGF-600 QGF-900
Filling heads 1 2 3 4 6
Volume 3-5gallon
Barrel size 270*490
Capacity 150 300 450 600 900
Gas pressure 0.4 -0.6
Gas consumption 0.37 0.6 0.8 1 1.2
Motor power 1.75 3.8 3.8 7.5 9
Motor voltage 380V/50HZ
Weight 700 1200 1600 2000 3500
Dimension 2800*1100*1600 3800*1300*1600 4200*1600*1600 4800*1800*1600

4200*2300*1600

2800*1000*1600





5 gallon bottle washing part

The rinsing process includes 12 passes of procedures: 1. Pre-rinsing; 2. and 3. Rinsing with alkali liquor;
4. Dripping water; 5. and 6. Rinsing with water; 7. Dripping water; 8. and 9. Disinfectant solution; 10.
And 11. Finished water; 12. Dripping water.

3 In 1 Bottling 5 Gallon Water Filling Machine 20 Liter Jar Washing Filling Capping Machine

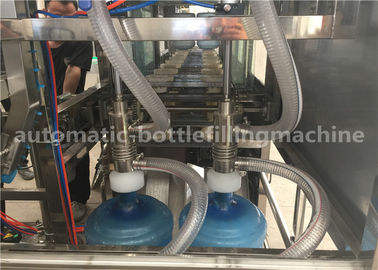

5 gallon filling part

Uploading and dropping barrels changed from 45 degree to translatory which is more stable.

Nozzle can insert into 10-15cm of the barrel in order to rinse little impurities down. Rinsing pump is separately controlled by different magnetic valves. Pump only work when there is barrel on that. It can avoid the mixture of different cleaning fluid.

3 In 1 Bottling 5 Gallon Water Filling Machine 20 Liter Jar Washing Filling Capping Machine

5 gallon Capping Part

Liquid level difference is controlled in 1cm.

Machine is equipped with Cap Sterilization system, which is 1.2m. The system make products more clean and safe by using sterilization and finished water.

Customers can choose to equip ABB/SEW motor, GRUNDFOS water pump, FESTO pneumatic component.

3 In 1 Bottling 5 Gallon Water Filling Machine 20 Liter Jar Washing Filling Capping Machine
