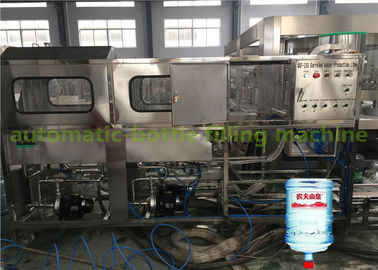

5 Gallon / 19 Liter Water Bottle Machine For Washing / Filling / Capping / Sealing

5 Gallon / 19 Liter Water Bottle Machine For Washing / Filling / Capping / Sealing
5 Gallon / 19 Liter Water Bottle Machine For Washing / Filling / Capping / Sealing

Large Image :  5 Gallon / 19 Liter Water Bottle Machine For Washing / Filling / Capping / Sealing

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: QGF-150
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Standard wooden boxes
Delivery Time: 30-45 working days
Supply Ability: 15 Set/Sets per Month
Detailed Product Description
Material: Stainless Steel 304 After-sales Service Provided: Engineers Available To Service Machinery Overseas
Color: Silver Gray Processing Type: Water
Packing Type: Plastic Barrel Driven Type: Electric
Warranty: One Year For Free Power: 1.78kw
High Light:

20 ltr water jar filling machine

,

fully automatic filling machine



Electric 5 Gallon / 19 Liter Water Bottle Washing Filling Cap Sealing Machine



Introduction

150 barrel filling line is used to produce 5 gallon drinking water. This machine composed with Rinse, filler and capper. It is the ideal equipment for mineral water, distilled water and pure water producing process. The machine is made of great stainless steel which is corrosion resistant and easy cleaning. Both the inner and outer shower nozzle for washing barrel adopts the special technology equipment from American Sprayer Company. The machine works reliably and efficiently based on the compact structure and high automatic technology. It Is a fully automatic barreled water producing equipment combined with machine, electronic and pneumatic components.Stainless steel is food grade ,Automatic cap unscrambler,Automatic protection device



Features

1. This filling line specially produces 3&5 gallons barreled drinking pure water.
2. This series barreled filling production line integrates bottle washer, filler and sealer into one unit.
3. In order to achieve the purpose of washing and sterilizing, bottle washer adopts multiple liquid injections washing and disinfectant spray, and washing solution can be used circularly. The sealer can seal bottle caps automatically.
4. This filling line equips with water spraying device to sterilize caps of bottles in order to ensure those caps are aseptic and healthy.
5. This line also can automatically carry out bottle washing, sterilizing, filling, capping, counting and products discharging.
6. It has features of complete functional, novel design, and high degree of automation. It is a new kind of barreled water auto-producing line, which integrates mechanism, electricity and pneumatics technologies together.



Technical parameter



Model QGF-150 QGF-300 QGF-450 QGF-600
Filling heads 1 2 3 4
Volume 18.9 18.9 18.9 18.9
Barrel size 270*490 270*490 270*490 270*490
Capacity 150 300 450 600
Gas pressure 0.4 -0.6 0.4 -0.6 0.4 -0.6 0.4 -0.6
Gas consumption 0.37 0.6 0.8 1
Motor power 1.75 3.8 3.8 7.5
Motor voltage 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ
Weight 700 1200 1600 2000
Dimension 2800*1100*1600 3800*1300*1600 4200*1600*1600 4800*1800*1600

If you want to see the video of how this machine works,please click here:

https://youtu.be/F5XKJSwRdIU
https://youtu.be/JUJqhn9P6GI
