150BPH 5 Gallon Water Filling Machine / Water Bottling Equipment 1.75kw

Certification
Good quality Water Bottle Filling Machine for sales
Good quality Water Bottle Filling Machine for sales
Customer Reviews
Your machine quality is very good and technical team very professional, hope our products sell well!

—— Shiferaw Habte

I have worked with them for five years, their juice and carbonated machine help me spread my busniess acorss Africa, this year we place an 24000BPH carbonated line, looking forward to the machine installation in our factory early.

—— Umesh

I'm Online Chat Now

150BPH 5 Gallon Water Filling Machine / Water Bottling Equipment 1.75kw

China 150BPH 5 Gallon Water Filling Machine / Water Bottling Equipment 1.75kw supplier
150BPH 5 Gallon Water Filling Machine / Water Bottling Equipment 1.75kw supplier 150BPH 5 Gallon Water Filling Machine / Water Bottling Equipment 1.75kw supplier 150BPH 5 Gallon Water Filling Machine / Water Bottling Equipment 1.75kw supplier 150BPH 5 Gallon Water Filling Machine / Water Bottling Equipment 1.75kw supplier 150BPH 5 Gallon Water Filling Machine / Water Bottling Equipment 1.75kw supplier

Large Image :  150BPH 5 Gallon Water Filling Machine / Water Bottling Equipment 1.75kw

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: QGF-150

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Standard wooden boxes
Delivery Time: 30-45 working days
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Material: Stainless Steel 304 Dimension(L*W*H): 2800*1100*1600mm
After-sales Service Provided: Engineers Available To Service Machinery Overseas Color: Silver Gray
Processing Type: Water Packing Type: Plastic Barrel
Power: 1.75kw Driven Type: Electric



150BPH 5 Gallon / 20 Liter Water Bottle Filling Machine / Bottling Plant 1.75kw



Description

The filling line specially produces 5 gallon barreled drinking water.It has the following types:80 type,150 type,300 type,450 type,600 type,900 type.It integrates bottle washer, filler and sealer into one unit. In order to achieve the purpose of multiple injections of washing and sterilizing by means of liquid washing and bleaching are used in bottle washer,washing solution can be used circularly.The sealer can seal barrel caps are aseptic and healthy,this line can also automatically carry out washing,sterilizing,filling, capping, counting and products discharging.It is a new kind of barreled water auto-producing line,which integrates mechanism, electricity and pneumatic technologies together.



Features

1) The machine has the advantages of complete function, compact structure, novel design and high degree of automation,

2) It is equipped the imported computer control system and touching screen operation, whose key components are imported from Germany, Taiwan, American assembly. It is a new type drinking water machine electrical integrated equipment.

3) According to the customer requirement, we will change the modification design basing on the existing machine.



The 5 gallon automatic filling machine is designed and made by our company after absorbing advanced technology from USA, Italy and France and improved by ourselves as per market situations. It is one of the most advanced filling equipment in the world. With advanced technology, reliable performances, scientific process flow, good food hygiene conditions, the equipment is an ideal filling machine for manufacturers in various industries, especially drinking water industry.



The main parts of the machine is made of superior stainless steel and others are made of non-toxic and durables materials. The electric and pneumatic systems consist of imported components such as Japanese PLC, French contactor, German sensor and SEW reducer, so as to ensure low failure rate and high reliability of the machine.



Main parameter

Model QGF-150 QGF-300 QGF-450 QGF-600 QGF-900
Filling heads 1 2 3 4 6
Volume 18.9 18.9 18.9 18.9 18.9
Barrel size 270*490 270*490 270*490 270*490 270*490
Capacity 150 300
Gas pressure 0.4 -0.6 0.4 -0.6 0.4 -0.6 0.4 -0.6 0.4 -0.6
Gas consumption 0.37 0.6 0.8 1 1.2
Motor power 1.75 3.8 3.8 7.5 9
Motor voltage 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ
Weight 700 1200 1600 2000 3500
Dimension 2800*1100*1600 3800*1300*1600 4200*1600*1600 4800*1800*1600

4200*2300*1600

2800*1000*1600



If you want to see the video of how this machine works,please click here:

https://youtu.be/F5XKJSwRdIU
https://youtu.be/JUJqhn9P6GI


Semi-automatic decapper and brusher

150BPH 5 Gallon Water Filling Machine / Water Bottling Equipment 1.75kw

Cap loader

150BPH 5 Gallon Water Filling Machine / Water Bottling Equipment 1.75kw

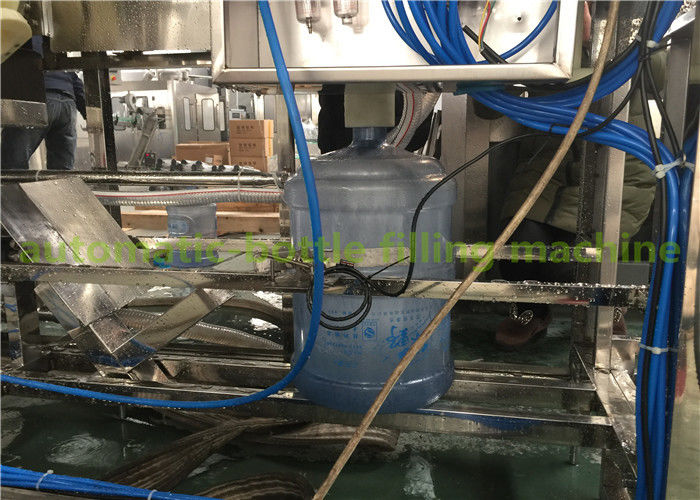

Filling capping part

150BPH 5 Gallon Water Filling Machine / Water Bottling Equipment 1.75kw
