AC 380V Fully Automatic Filling Machine , Pneumatic System Water Gallon Filling Machine

China AC 380V Fully Automatic Filling Machine , Pneumatic System Water Gallon Filling Machine supplier
AC 380V Fully Automatic Filling Machine , Pneumatic System Water Gallon Filling Machine supplier AC 380V Fully Automatic Filling Machine , Pneumatic System Water Gallon Filling Machine supplier AC 380V Fully Automatic Filling Machine , Pneumatic System Water Gallon Filling Machine supplier AC 380V Fully Automatic Filling Machine , Pneumatic System Water Gallon Filling Machine supplier

Large Image :  AC 380V Fully Automatic Filling Machine , Pneumatic System Water Gallon Filling Machine

Product Details:

Place of Origin: China(mainland)
Brand Name: JINYATE
Certification: CE SGS
Model Number: QGF-150

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: PE film, standard wooden cases
Delivery Time: 35 working days
Supply Ability: 100 sets per year
Contact Now
Detailed Product Description
Product Name: 5 Gallon Water Bottling Machine Function: Washing Filling Capping
Model: QGF-150 Capacity: 150B/H
Bottle Size: 3-5 Gallon Filling Material: Mineral Water, Purified Water
Control: PLC+HMI Material: SUS304
Warranty: 1 Year



Fully Automatic Barrel Water 18.9 Litre 19litre 5 Gallon Filling



Machine/Line





product description



150 barrel filling line is used to produce 5 gallon drinking water. This machine composed with



Rinser, filler and capper. It is the ideal equipment for mineral water, distilled water and pure water



producing process. The machine is made of great stainless steel which is corrosion resistant and



easy cleaning. Both the inner and outer shower nozzle for washing barrel adopts the special



technology equipment from American Sprayer Company. The machine works reliably and



efficiently based on the compact structure and high automatic technology. It Is a fully automatic



barreled water producing equipment combined with machine, electronic and pneumatic



components.Stainless steel is food grade ,Automatic cap unscrambler,Automatic protection



device.





technical parameter



Item
Specification
model QGF-150
bottle size 3-6 gallon, 18.9litre
Capacity
150 barrels per hour
Electric part
SIEMENS Germany
Pneumatic parts
AIRTAC Taiwan
Power Supply
AC 380V±5%
AC 220V±5%
Rated Current
2A / 4A
Framework
45*75*2.0mm SUS304
Net Weight
2200kg
Motor power
2.2KW

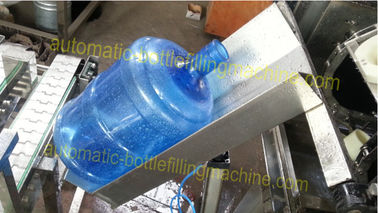

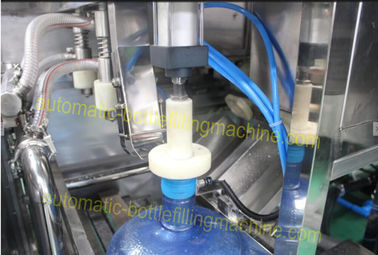

product pictures



AC 380V Fully Automatic Filling Machine , Pneumatic System Water Gallon Filling Machine



AC 380V Fully Automatic Filling Machine , Pneumatic System Water Gallon Filling MachineAC 380V Fully Automatic Filling Machine , Pneumatic System Water Gallon Filling Machine



Mechanism of the machine


1. Framework


Main supporter of the machine consists of stainless steel foursquare pipe with beautiful



appearance and firm structure. Subsidiary supporter which is joined to the main supporter



functions for separating the workaround and supporting.


2. Electric system


The electric part consists of PLC controller, AC contactor, Time Relay and Air Switch.


3. Pneumatic system


The pneumatic part consists of Cylinder, Pneumatic electromagnetic valve and pneumatic control



electric control box.



The flowchart of 5 gallon water production



decapper—external brusher—internal brusher—5 gallon rising filling capping machine –cap shrink



machine—bagging machine



we can supply all these machines, just pls contact with us... ...
