450BPH 5 Gallon Water Filling Machine Multiple Injections For Plastic Barrel

China 450BPH 5 Gallon Water Filling Machine Multiple Injections For Plastic Barrel supplier
450BPH 5 Gallon Water Filling Machine Multiple Injections For Plastic Barrel supplier 450BPH 5 Gallon Water Filling Machine Multiple Injections For Plastic Barrel supplier 450BPH 5 Gallon Water Filling Machine Multiple Injections For Plastic Barrel supplier 450BPH 5 Gallon Water Filling Machine Multiple Injections For Plastic Barrel supplier 450BPH 5 Gallon Water Filling Machine Multiple Injections For Plastic Barrel supplier

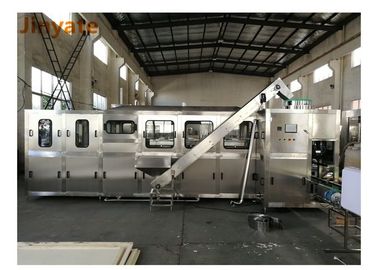

Large Image :  450BPH 5 Gallon Water Filling Machine Multiple Injections For Plastic Barrel

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: QGF-450

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Standard wooden boxes
Delivery Time: 30-45 working days
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Material: Stainless Steel 304 Dimension(L*W*H): 3800*1300*1600mm
After-sales Service Provided: Engineers Available To Service Machinery Overseas Color: Silver Gray
Processing Type: Water Packing Type: Plastic Barrel
Power: 3.8kw Driven Type: Electric
Warranty: One Year For Free Control: PLC+ Touch Screen



450BPH 5 Gallon / 20L Drinking Water Filling Machine / Water Bottling









Line 3.8kw







Product introduction



Model:QGF-450 5gallon water filling machine.

This machine's capacity is 450 barrels per hour;

If you need,we can make a 5 gallon drinking water bottling line


In addtion to QGF-450,We also has the following types:80 type,150 type,300 type,450 type,600



type,900 type.





Features



1. This 5 gallon filling machine integrates bottle washer, filler and sealer into one unit.

2. In order to achieve the purpose of multiple injections of washing and sterilizing by means of liquid



washing and bleaching are used in bottle washer,washing solution can be used circularly.

3. The sealer can seal barrel caps are aseptic and healthy,this line can also automatically carry out



washing,sterilizing,filling, capping, counting and products discharging.

4. It is a new kind of barreled water auto-producing line,which integrates mechanism, electricity and



pneumatic technologies together.



Technical parameter



Model QGF-150 QGF-300 QGF-450 QGF-600
Filling heads 1 2 3 4
Volume 18.9 18.9 18.9 18.9
Barrel size 270*490 270*490 270*490 270*490
Capacity 150 300 450 600
Gas pressure 0.4 -0.6 0.4 -0.6 0.4 -0.6 0.4 -0.6
Gas consumption 0.37 0.6 0.8 1
Motor power 1.75 3.8 3.8 7.5
Motor voltage 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ
Weight 700 1200 1600 2000
Dimension 2800*1100*1600 3800*1300*1600 4200*1600*1600 4800*1800*1600




The whole QGF-450 5 gallon filling machine line image show



Flow:

Automatic decapper → External and Inner brusher → Rotary type barrel

washing filling capping machine → Cap elevator →Light checker→ bagging

machine


Automatic decapper


450BPH 5 Gallon Water Filling Machine Multiple Injections For Plastic Barrel


Automatic external brusher


450BPH 5 Gallon Water Filling Machine Multiple Injections For Plastic Barrel


Automatic Internal brusher


450BPH 5 Gallon Water Filling Machine Multiple Injections For Plastic Barrel



"This QGF-450 5 gallon water filling machine is designed for our Russian customer"

Our Five Star after-sales Service

1.One year warranty for the whole system.

2.Free equipment installation and debugging.

3.After one year, we can help you to maintain the machine and the accessories are provided only one the cost price.

4.We can provide internship service and help you train the operator and mechanic.

5.Free beverage production technology and process configuration.

6.We can help you to design the product line, workshop and provide turn-key project.
