Product Details:
Payment & Shipping Terms:
|
| Automatic Grade: | Fully-automatic | Warranty: | One Year For Free |
|---|---|---|---|
| Capacity: | 2000-3000BPH(500ml) | Control System: | PLC+Touch Screen |
| Power: | 4.23KW | Machine Material: | Stainless Steel 304 |
| Filling Type: | Normal Pressure Filling | Driven Type: | Electric |
| High Light: | 4.23KW automatic bottling machine,2000bph filling capping machine |
||
Products Introduction:

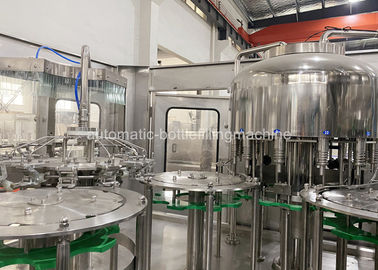

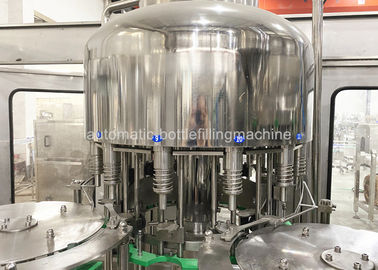

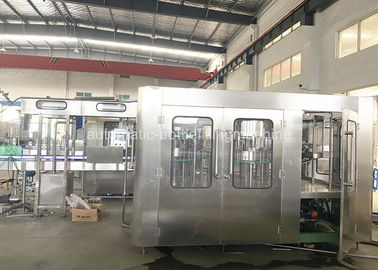

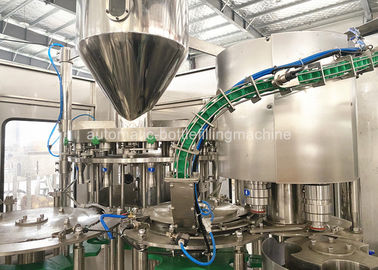

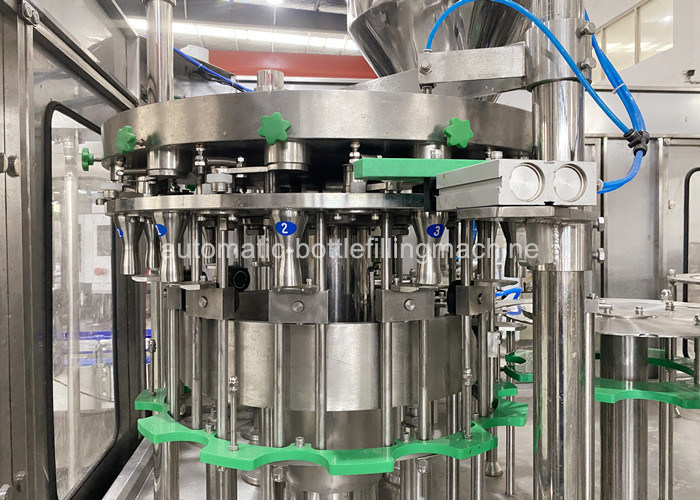

This juice bottle filling machine is customized by customer's special requirements.It integrates washing,liquid filling,pulp filling and capping 4 functions into one machine.It is fully automatic ,and can fill 200-2000ml PET/Plastic/HDPE bottles(all the bottle mouth diameter must be same).It is widely used for bottled juice,tea drink,flavored water and other no-gas beverage.It is widely used for juice beverage industrial.
Technique parameter
| Model | CGF12-12-12-4 |
| Productivity | 2000-3000BPH |
| Rinsing Head | 12 |
| Filling Head(liquid) | 12 |
| Filling Head(pulp) | 12 |
| Capping Head | 4 |
| Bottle Volume | 200ml~2000ml |
| Bottle Diameter | φ50-92mm |
| Bottle Height | 150-310 mm |
| Filling Tolerance | ±2% |
| Cap Size | 28mm and 30mm PE Standard Caps |
| Air Pressure | 0.6MPa |
| Air Consumption | 500 L/min |
| Filling Water Consumption | 1.5 m3/h |
| Rinsing Water Consumption | 0.5 m3/h |
| Motor Power | 4.23kw |
| Voltage | 380V/50HZ |
| Dimension |
(L*W*H) 2100*1500*2200mm |
| Weight | 2000kg |
| Filling Principle | Gravity Filling |
1. Complete set includes conveyor, monoblock rinsing filling capping machine and discharge conveyor.
2. Compact design saves space.
3. Heavy duty carbon steel tubular frame makes machine stable and durable enclosed with stainless steel sheathing secured to the tubular frame.
4. All parts that contact the bottle and liquid are made of stainless steel or food grade plastic material
5. All drive train components located inside machine base to be protected from aggressive environment, extended life, clean and unobstructed cabinet surface.
6. Rinsing, filling and capping are integrated into one.
7. Unique design bottle neck suspend system makes bottle move smoothly.
8. Precise and accurate fill-to-level valves give even filling in all bottles at same level.
9. No bottle, No filling.
10. Magnetic capping head eliminates over-tightening of caps.
11. No bottle, No capping.
12. Fast and easy changeover for various bottle sizes minimizes down time.
13. PLC control and friendly touch screen HMI interface.
14. Adjustable speed by inverter
15. Easy to operate, clean and maintain
