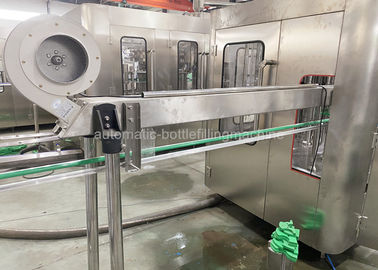

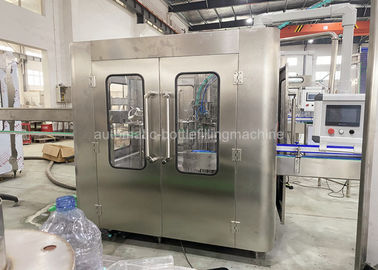

3000BPH Purified Drinking SS304 Automatic Water Bottle Filling System

3000BPH Purified Drinking SS304 Automatic Water Bottle Filling System
3000BPH Purified Drinking SS304 Automatic Water Bottle Filling System

Large Image :  3000BPH Purified Drinking SS304 Automatic Water Bottle Filling System

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: CGF8-8-3
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Standard wooden Boxes
Delivery Time: 30-45 working days
Supply Ability: 15 Set/Sets per Month
Detailed Product Description
Warranty: One Year For Free Control System: PLC+touch Screen
Power: 4.23kw Bottle Type: Pet / Plastic Bottle
Voltage: 380V/50Hz Weight: 2000kg
Dimension(L*W*H): 2100×1500×2200mm Application: Beverage
High Light:

3000BPH Water Bottle Filling Machine

,

4.23kw Water Bottle Filling Machine



3000BPH Purified Drinking Water Bottle Filling Machine,Small Water Filling Production Line SS304







Description:

The water bottle filling machine is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery. It adopts bottle neck holding transmission technology to realize fully automatic rinsing,filling and capping.Most elements of electrical system employ foreign advanced products.Each machine element that contacts with the liquid is made of high quality stainless steel.They obtain the advantages of good abrasive resistance,high stability,low failure rate,etc.The quality of the equipments reaches the international advanced level.



Technical parameter

Model CGF8-8-3 CGF18-18-6 CGF24-24-8 CGF32-32-10
Production capacity(500ml)(b/h) 3000 4000-6000 8000-10000 12000-15000
Filling precision ≤±5MM(Liquid Level)
Polyester bottle standard(mm) Bottle diameter40-80;
Height Height:130-280 (Height):150-320
Suitable cap shape Plastic Screw Cap
Water pressure of Washing bottle(MPa)

0.18



Water consumption for Water bottle (kg/h) 800 1600 2500 3500
Spraying position 5 5 6 12
Dripping bottle position 3 3 3.5 7
Gas source pressure(Mpa)

normal pressure



Gas consumption(m3/mm) 0.3 0.3 0.4 0.5
Total power 4.23 5.03 6.57 8.63
Total weight 2000 3500 5500 8000
Dimension(L*W*H)mm 2100×1500×2200 2450×1800×2200 2750×2180×2200

3500×2200×2250



Feature:

1. The pure water filling machine adpots advanced human-machine interface control. High quality international name brand key component

2. Suspension bottle neck catcher structure allows the machine change the bottle type easily. By changing the valves, it also can be used as hot filling machine

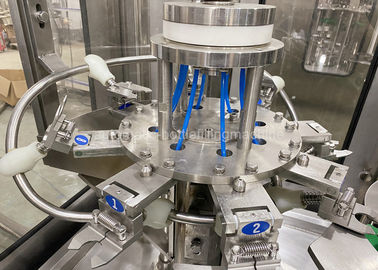

3. Spring type rinsing catcher can wash both inside and outside of the bottle

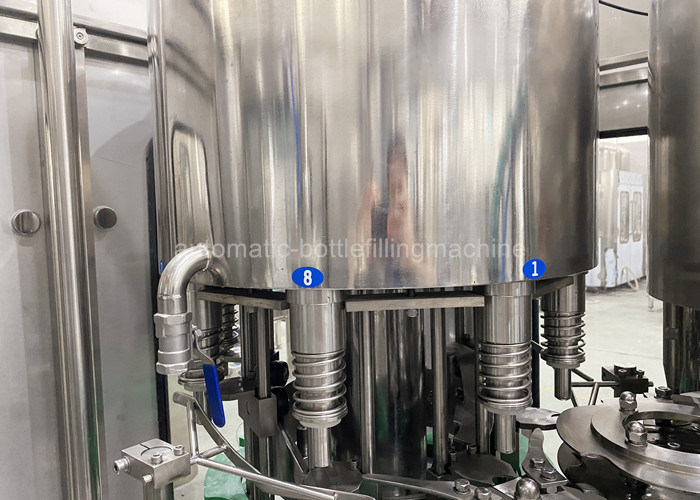

4. High accuracy pressure water filling mechanism, ensure the height and quatity of the water filling

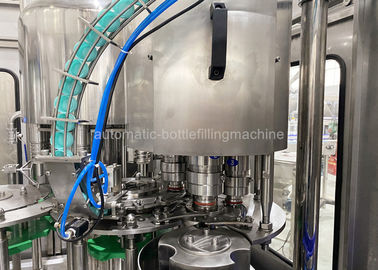

5. Magnetic powered cap device ensures tightness and prevents damage of the caps

6. Quiet, rotary cap unscrambler will not damage caps. Photoelectric sensor detect missing caps thus eliminating uncapped bottle spillage

7. Built-in safeguard mechanism ensures the safety of operator and machine.

8. High efficient air clean filter system ensures high sanitary requirements

9. Low overall machine noise

10. Self-lubricating system imported from America provides continuous smooth operation.



Cap elevator
3000BPH Purified Drinking SS304 Automatic Water Bottle Filling System 0



Light checker

3000BPH Purified Drinking SS304 Automatic Water Bottle Filling System 1
