CGF8-8-3 Small Pure Drinking 3 In 1 Washer Filler Capper

CGF8-8-3 Small Pure Drinking 3 In 1 Washer Filler Capper
CGF8-8-3 Small Pure Drinking 3 In 1 Washer Filler Capper

Large Image :  CGF8-8-3 Small Pure Drinking 3 In 1 Washer Filler Capper

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: CGF8-8-3
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Standard wooden Boxes
Delivery Time: 30-45 working days
Supply Ability: 15 Set/Sets per Month
Detailed Product Description
Warranty: One Year For Free Control System: PLC+touch Screen
Atumatic Grade: Fully-automatic Power: 4.23kw
Bottle Type: Pet / Plastic Bottle Voltage: 380V/50Hz
Weight: 2000kg Dimension(L*W*H): 2100×1500×2200mm
High Light:

4.23KW filling capping machine

,

plc filling capping machine

CGF8-8-3 Small Pure Drinking Water Bottle Filling Machine 3 In 1 Washer Filler Capper 4.23KW







Description:



1. This equipment is automatic washing filling capping three in one machine. It’s of many advantages, such as compact structure, perfect control system and easy to be operated. Advanced touch screen and PLC control system makes man-machine communication true.



2. Washing part is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate, guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing tank.

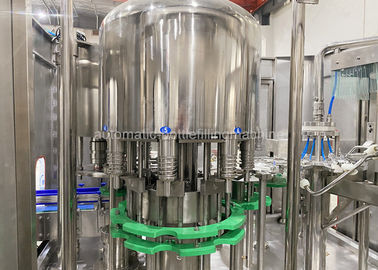

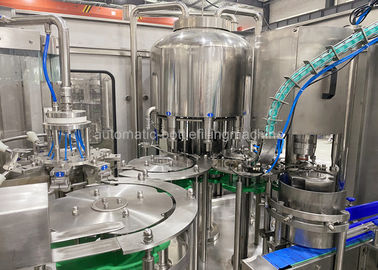

3. Filling Part is mainly composed of filling barrel, filling valves (normal temperature and normal pressure filling), filling pump, bottle hanging device / bottle pedestals, elevating device, liquid indicator, pressure gauge, vacuum pump, etc.

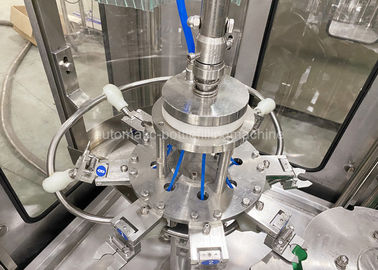

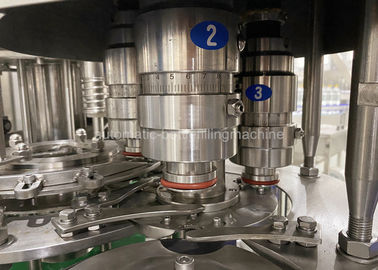

4. Capping part is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.



5. Main electrical components are all imported from world famous brands to guarantee excellent performance of the whole machine.



Technical parameter

Model CGF8-8-3 CGF18-18-6 CGF24-24-8 CGF32-32-10
Production capacity(500ml)(b/h) 3000 4000-6000 8000-10000 12000-15000
Filling precision ≤±5MM(Liquid Level)
Polyester bottle standard(mm) Bottle diameter40-80;
Height Height:130-280 (Height):150-320
Suitable cap shape Plastic Screw Cap
Water pressure of Washing bottle(MPa)

0.18



Water consumption for Water bottle (kg/h) 800 1600 2500 3500
Spraying position 5 5 6 12
Dripping bottle position 3 3 3.5 7
Gas source pressure(Mpa)

normal pressure



Gas consumption(m3/mm) 0.3 0.3 0.4 0.5
Total power 4.23 5.03 6.57 8.63
Total weight 2000 3500 5500 8000
Dimension(L*W*H)mm 2100×1500×2200 2450×1800×2200 2750×2180×2200

3500×2200×2250

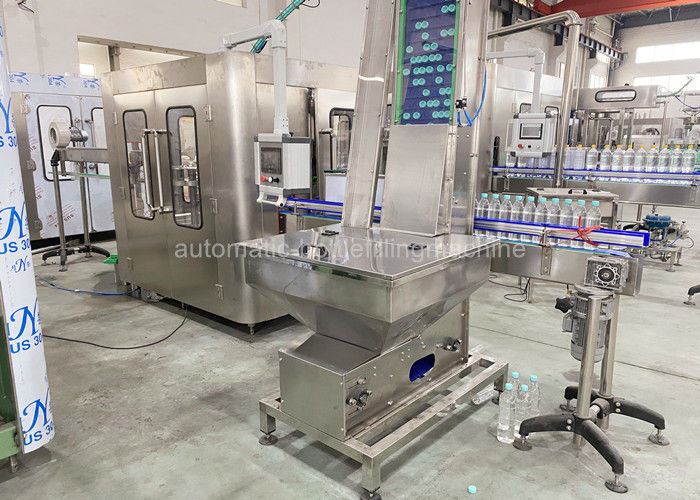

Image show

CGF8-8-3 Small Pure Drinking 3 In 1 Washer Filler Capper 0



CGF8-8-3 Small Pure Drinking 3 In 1 Washer Filler Capper 1
