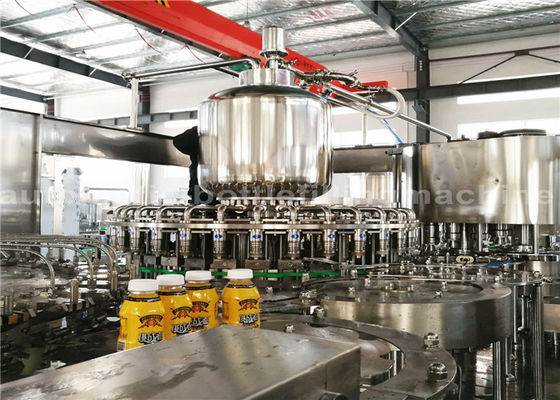

PLC Washing Capping Juice Bottle Filling Machine 3 Phase For 500ML Plastic Bottles

PLC Washing Capping Juice Bottle Filling Machine 3 Phase For 500ML Plastic Bottles
PLC Washing Capping Juice Bottle Filling Machine 3 Phase For 500ML Plastic Bottles

Large Image :  PLC Washing Capping Juice Bottle Filling Machine 3 Phase For 500ML Plastic Bottles

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: RCGF32-32-10
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Plastic film wrapping,standard wooden boxes packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Detailed Product Description
Capacity: 15000BPH(500ML) Power: 9.18KW
Filling Temperature: 70-90 Degree Name: Small Scale Juice Bottling Equipment
Machine Material: Stainless Steel 304 Control System: PLC
Automatic Grade: Fully Automatic Voltage: 380V/50HZ,3 Phase
High Light:

fruit juice production line


small scale juice bottling equipment



Complete juice filling production line includes below equipments:


1. Pure water treatment system

2. Water storage tank

3. Syrup melting pot

4. Anti-heat Pump

5. Juice flavor blending tank

6. Homogenizer

7. High temperature sterilizer

8. CIP pipe cleaning machine

9. Auto bottle washing, filling and capping line

10. Labeling machine

11. Date of manufacture printer

12. Final products film packaging machine and so on.


RCGF32-32-10 Juice Bottle Filling Machine

It integrates washing filling capping three functions into one unit,It is used for filling juice,tea,milk drink or other no-gas contained liquid into Plastic or PET bottle.It is suitable for bottle 200-2000ml,its capacity is 2000-20000BPH.

It is controlled by PLC and touch screen,it's easy in operation,high efficiency,stability.

It is the best choice for juice factory.

Technique parameters

Model RCGF32-32-10
Productivity 15000BPH
Rinsing Head 32
Filling Head 32
Capping Head 10
Bottle Volume 350ml~2000ml±10ml
Bottle Diameter φ50-92mm
Bottle Height 150-310 mm
Filling Tolerance ±2%
Cap Size 28mm and 30mm PE Standard Caps
Air Pressure 0.6MPa
Air Consumption 500 L/min

Filling Wate Consumption

1.5 m3/h
Rinsing Water Consumption 0.5 m3/h
Motor Power 9.18kW
Voltage 380V
Dimension(L*W*H) 3600*2800*3150mm
Weight 5000kg
Filling Principle Gravity Filling



Video link: https://www.youtube.com/watch?v=fh8grv8RlNw&feature=share

Main features:

1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.


Hi,Are you looking for the juice bottle filling machine?If yes,please review the below information.


1. How many bottles do you want to fill per hour?

2. What's your filling temperature?

3. Is your bottle size 500ml or other volume?

Kindly let me know above information,So that I can do the detailed quotation,OK?
