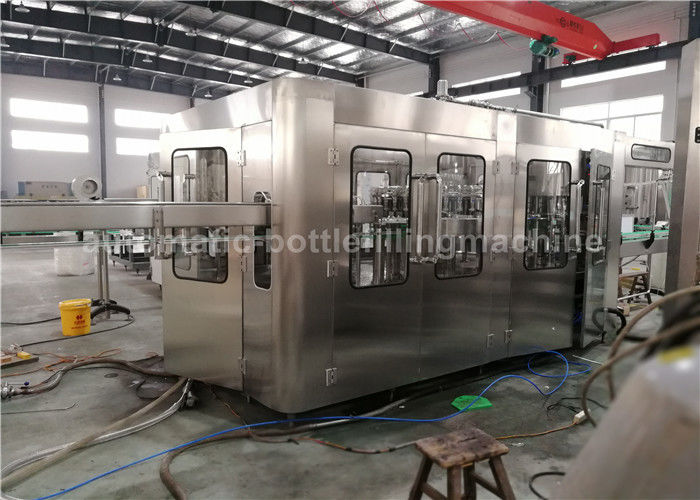

SS304 Plastic Bottled Mango Juice Packing Machine / Juice Bottling Plant

SS304 Plastic Bottled Mango Juice Packing Machine / Juice Bottling Plant
SS304 Plastic Bottled Mango Juice Packing Machine / Juice Bottling Plant

Large Image :  SS304 Plastic Bottled Mango Juice Packing Machine / Juice Bottling Plant

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jinyate
Certification: CE,ISO,SGS
Model Number: RCGF32-32-10
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Plastic film wrapping,standard wooden boxes packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Detailed Product Description
Capacity: 15000BPH(500ML) Overall Dimension: 3600*2800*3150mm
Weight: 5000kg Function: Washing Filling Capping
Power: 9.18KW Filling Temperature: 70-90 Degree
Warranty: One Year For Free Condition: New
High Light:

fruit juice production line


small scale juice bottling equipment


Hi,Are you looking for the juice bottle filling machine?If yes,please review the below information.

1. How many bottles do you want to fill per hour?

2. What's your filling temperature?

3. Is your bottle size 500ml or other volume?

Kindly let me know above information,So that I can do the detailed quotation,OK?


Here I want to introduce our RCGF32-32-10 juice hot filling machine,This is a 3 in 1 monoblock machine,it integrates rinser,filler,capper three functions into one unit.It is widely used for hot filling juice,tea,flavored water,and other no-gas liquid.Its capacity is about 15000 bottles per hour based on 500ml plastic/PET bottle.We also have other capacity juice filling machine,you can look at the below chart.


Video link:https://www.youtube.com/watch?v=fh8grv8RlNw&feature=share

Technique parameters

Model RCGF32-32-10
Productivity 14000BPH
Rinsing Head 32
Filling Head 32
Capping Head 10
Bottle Volume 350ml~2000ml±10ml
Bottle Diameter φ50-92mm
Bottle Height 150-310 mm
Filling Tolerance ±2%
Cap Size 28mm and 30mm PE Standard Caps
Air Pressure 0.6MPa
Air Consumption 500 L/min
Filling Water Consumption 1.5 m3/h
Rinsing Water Consumption 0.5 m3/h
Motor Power 9.18kW
Voltage 380V
Dimension(L*W*H) 3600*2800*3150mm
Weight 5000kg
Filling Principle Gravity Filling

Washing part


All 304 stainless steel washing heads, water spray style inject design, more save water consumption & more clean

304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing

304 stainless steel washing pumps


Filling part

The filling station using all metal (not plastic) 304 stainless steel contact parts gives consistent accurate, high precision filling nozzle together with vacuum pump regurgitate system, to ensure the high filling precision, ensure same filling level

Filling temperature is adjustable.

Centre 304L stainless steel filling nozzle used which are designed for maximum flow rate and minimum bottle distortion during filling.

All 304 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean

No bottles no fill

Bottle struck no run


Capping part

Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping

All 304stainless steel construction

No bottle no capping,

Automatic stop when lack of caps

1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
